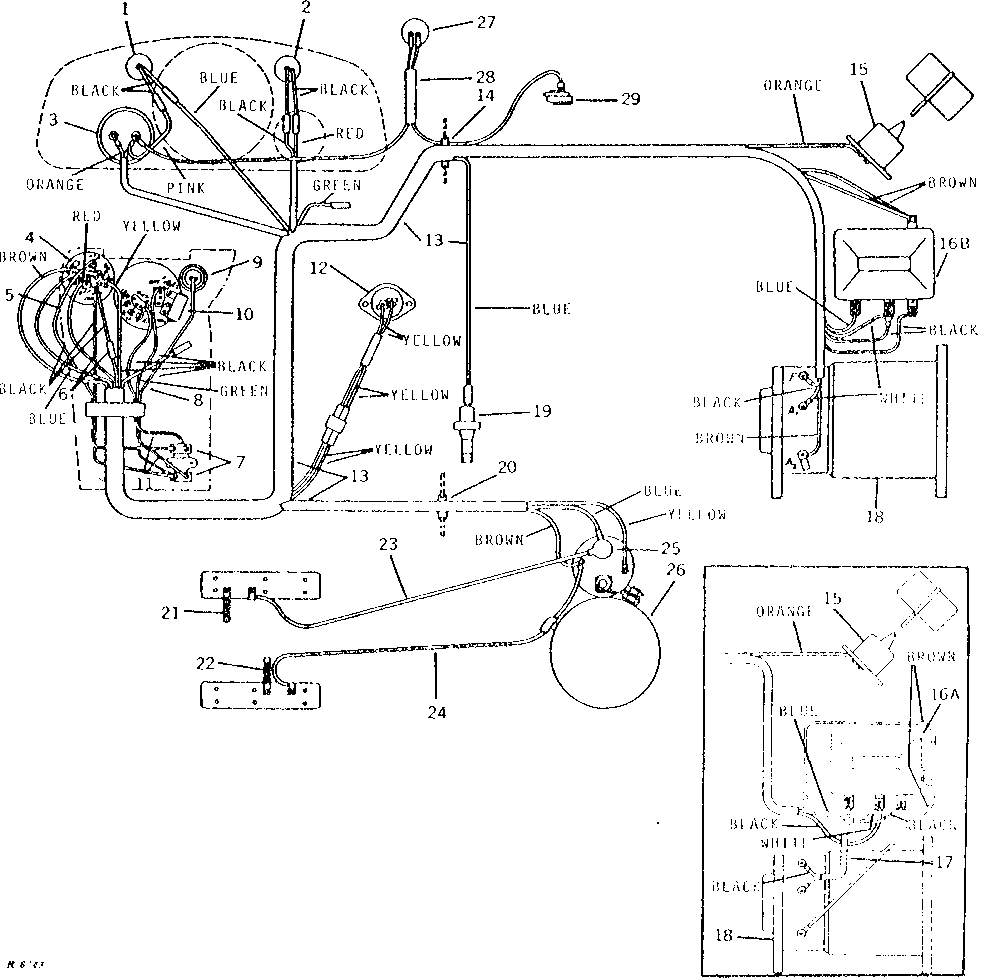

GENERATOR AND STARTER WIRING (DIESEL) [01F14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR27944	1	LAMP	(SUB AR55694, AT44165, AT48674 AND R30378)
2	AT44165	1	WIRING LEAD	(SUB FOR AR29350 OR AT14699) (ALSO ORDER AR55694, AT48673 AND R30378)
3	RE54427	1	GAUGE	(SUB FOR AR26716, AR46271, AT27153 OR R34262)
4	AR26557	1	SWITCH	STARTER, (SUB FOR AR30279)
5	-	1	Part 5	254MM (10") (CIRCUIT BREAKER TO STARTER SWITCH) (MAKE FROM R66319, R32018, R65600, T28585 AND R32027)
6	AR30050	1	WIRING HARNESS	(STARTER SWITCH TO CIRCUIT BREAKER) (NLA)
7	AR28403	2	CIRCUIT BREAKER	-
8	-	1	Part 8	318MM (12-1/2") (CIRCUIT BREAKER TO CIGAR LIGHTER) (MAKE FROM R66319 AND R32018)
9	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR30052 OR AR34556)
10	AR28402	1	SWITCH	LIGHT
11	-	2	Part 11	254MM (10") (CIRCUIT BREAKER TO LIGHT SWITCH) (MAKE FROM R66319, R32018, R65600, T28585 AND R32027)
12	RE42069	1	STARTER MOTOR KIT	NEUTRAL-START, (SUB FOR AR26413, THIS APPLICATION)
13	AR28810	1	WIRING HARNESS	(SUB FOR AR26582) (SUB AR47657)
14	R32555	1	Grommet	-
15	AR26434	1	SENDER	-
17	AR26565	1	WIRING HARNESS	(GENERATOR TO REGULATOR)
18	AR11302	1	DC GENERATOR	(SUB TY1447) (24-VOLT) (DELCO-REMY NO. 1103026)
18	TY1447	1	DC GENERATOR	(SUB FOR AR11302 OR AR34567) (24-VOLT)(REMANUFACTURED)
19	AR27977	1	TOUCH SWITCH	OIL PRESSURE
19	AR45694	1	WIRING LEAD	OIL PRESSURE SWITCH
20	R26941	1	Grommet	-
21	14H1076	1	Nut	3/8", (ST)
21	12H304	1	Lock Washer	3/8", (ST)
21	19H1936	1	Cap Screw	3/8" X 3/4", (ST)
21	AM348T	1	GROUND CABLE	L.H. POSITIVE, (ST)
21	24M7096	1	Washer	10.500 X 18 X 1.600 MM, (ST)
21	AR26619	1	GROUND CABLE	L.H. POSITIVE, (ST)
21	AR26619	1	GROUND CABLE	L.H. POSITIVE, (RC AND HC)
21	24M7096	1	Washer	10.500 X 18 X 1.600 MM, (RC AND HC)
22	AR26622	1	GROUND CABLE	R.H. NEGATIVE, (RC AND HC)
22	AR26622	1	GROUND CABLE	R.H. NEGATIVE, (ST)
22	24M7096	1	Washer	10.500 X 18 X 1.600 MM, (RC AND HC)
22	24M7096	1	Washer	10.500 X 18 X 1.600 MM, (ST)
22	AT18702	1	GROUND CABLE	R.H. NEGATIVE, (SUB FOR AR27367) (ST)
22	19H1936	1	Cap Screw	3/8" X 3/4", (ST)
22	12H304	1	Lock Washer	3/8", (ST)
22	14H1076	1	Nut	3/8", (ST)
23	19H2038	1	Cap Screw	3/8" X 1/2"
23	19H2479	1	Cap Screw	1/4" X 3/8", (ST)
23	12H304	1	Lock Washer	3/8", (ST)
23	R183R	1	CLIP	-
23	AR28950	1	BATTERY CABLE	L.H. NEGATIVE, (RC AND HC)
23	AR27490	1	CABLE	L.H. NEGATIVE, (ST)
24	19H2479	1	Cap Screw	1/4" X 3/8", (ST)
24	R28133	1	CLIP	(ST) (NLA)
24	R183R	1	CLIP	-
24	AR27365	1	CABLE	R.H. POSITIVE, (SUB FOR AR30380) (ST)
24	AR26621	1	BATTERY CABLE	R.H. POSITIVE, (RC AND HC)
24	AR26621	1	BATTERY CABLE	R.H. POSITIVE, (ST)
25	R30964	2	Cover	(SUB FOR A3082R)
26	AR40134	1	STARTER MOTOR	(24-VOLT) (DELCO-REMY NO. 1113190) (SUB FOR AR28053 OR AR11138) (SUB TY6703)
26	TY6703	1	STARTER MOTOR	(SUB FOR AR11138, AR40134 OR TY6622) (CONTAINS RE39838) (REMANUFACTURED)
26	SE501445	1	STARTER MOTOR	(REMANUFACTURED FOR TY6703)
27	AR21823	1	SWITCH	(SUB FOR AR20235) (HORN)
28	R34702	1	WIRING HARNESS	(SUB FOR AR30415)
29	AT39043	1	High Note Horn	(SUB FOR AR11308 OR R11276) (LOW NOTE) (12-VOLT)
..	R44302	1	Tie Band	-
16A	AR11008	1	REGULATOR	(24-VOLT) (DELCO-REMY NO. 1119219) (SUB AR30155)
16B	AR30155	1	VOLTAGE REGULATOR	(24-VOLT) (DELCO-REMY NO. 1119282)
