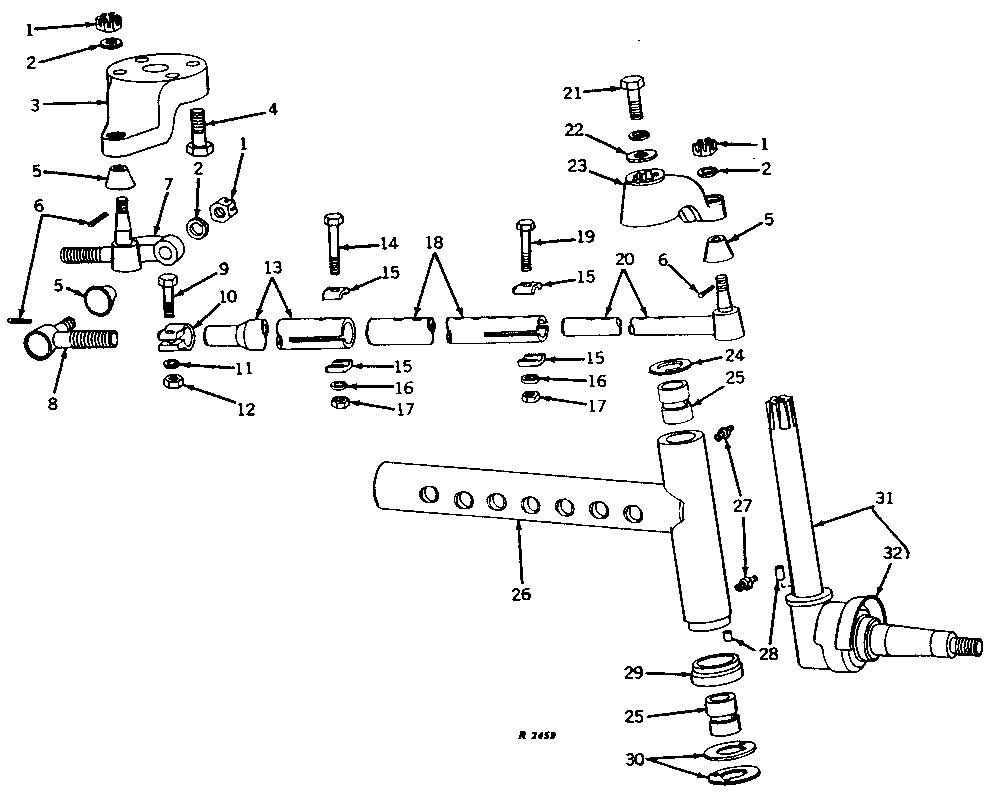

FRONT AXLE KNEE (STANDARD WITH SHORT WHEEL BASE) [02I11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H918	4	NUT	5/8"
2	12H294	4	Lock Washer	5/8"
3	R31181	1	ARM	(SUB FOR R28116)
4	19H2663	4	CAP SCREW	3/4" X 2-1/8"
5	R40589	4	COVER	(SUB FOR R28019)
6	11M7083	4	Cotter Pin	0.126" X 1.969"
7	AR40592	1	TIE ROD END	L.H. (SUB FOR AR27429)
8	AR27351	1	BALL JOINT	R.H.
9	19H2719	2	CAP SCREW	7/16" X 1-7/8"
10	R28023	2	CLAMP	-
11	12H293	2	Lock Washer	7/16"
12	14H1047	2	Nut	7/16"
13	R28021	2	TUBE	-
14	19H2128	2	CAP SCREW	3/8" X 3"
15	R28024	8	Half Clamp	-
16	12H304	4	Lock Washer	3/8"
17	M63440	4	LOCK NUT	(SUB FOR R31555, THIS APPLICATION) (SUB FOR C744DN) (SUB E50102)
18	R28022	2	TUBE	-
19	19H1733	2	CAP SCREW	3/8" X 2-1/2"
20	AR51584	2	TIE ROD ASSEMBLY	(SUB FOR AR27350)
21	19H1798	2	Cap Screw	3/4" X 1-3/4"
21	12H236	2	Lock Washer	3/4"
22	B3310R	2	WASHER	-
23	R47765	1	STEERING ARM	R.H. (SUB FOR R27806)
23	R47766	1	STEERING ARM	L.H. (SUB FOR R27807)
24	R34757	2	SHIM	-
24	D467R	2	WASHER	-
25	A877R	4	BUSHING	-
26	AR69835	2	AXLE	(SUB FOR AR27536)
27	JD7759	4	Lubrication Fitting	1/8"
28	34H308	4	Spring Pin	1/4" X 1/2"
29	B2693R	2	DUST SHIELD	-
30	A890R	4	WASHER	-
31	AR55179	2	KNUCKLE	314MM (12-3/4") (SUB FOR AR28545) (ALSO ORDER R20135 AND 19H1890)
32	R20255	2	Dust Shield	-

FRONT AXLE KNEE (STANDARD WITH SHORT WHEEL BASE) [02I11]
