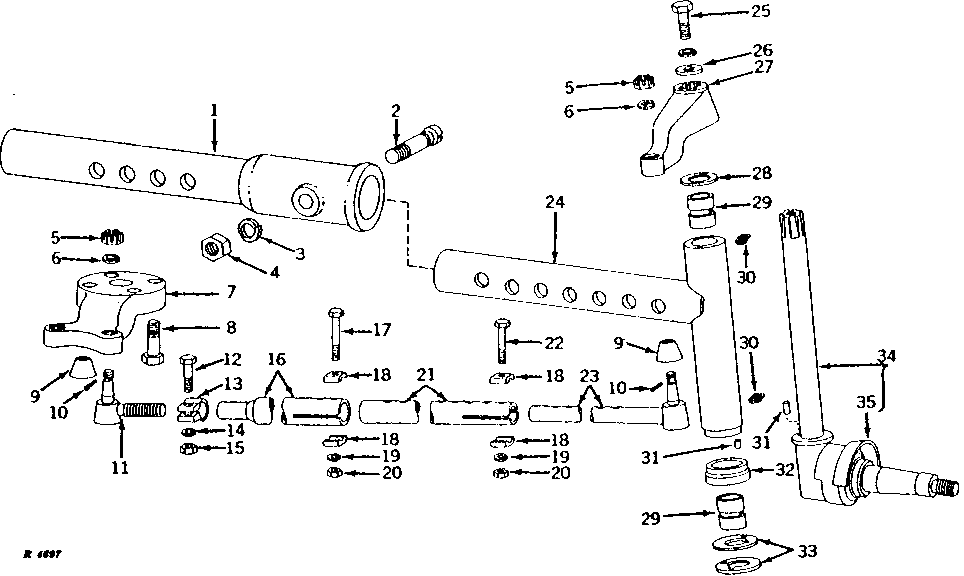

FRONT AXLE KNEE (ROW-CROP, STANDARD WITH LONG WHEEL BASE AND HI-CROP) [02I09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30747	1	EXTENSION	(RC) (NLA)
2	B2694R	1	BOLT	(RC)
2	R20118	1	DOWEL PIN	-
3	12H234	1	LOCK WASHER	1", (RC)
4	14H854	1	NUT	1", (RC)
5	14H918	4	NUT	5/8"
6	12H294	4	Lock Washer	5/8"
7	R27808	1	ARM	-
7	R30900	1	ARM	(HC) (NLA)
8	19H2663	4	CAP SCREW	3/4" X 2-1/8"
9	R40589	4	COVER	(SUB FOR R28019)
10	11M7083	4	Cotter Pin	0.126" X 1.969"
11	AR27351	2	BALL JOINT	-
12	19H1990	2	Cap Screw	1/2" X 2-1/4"
13	R28023	2	CLAMP	-
14	12H301	2	Lock Washer	1/2"
15	14H1040	2	Nut	1/2"
16	R28021	2	TUBE	(RC AND ST)
16	R30748	1	TUBE	(USE WITH R30747) (RC) (NLA)
16	R47843	2	TUBE	(SUB FOR R28743) (HC)
17	19H2128	2	CAP SCREW	3/8" X 3"
18	R28024	8	Half Clamp	-
19	12H304	4	Lock Washer	3/8"
20	M63440	4	LOCK NUT	(SUB FOR R31555, THIS APPLICATION) (SUB FOR C744DN) (SUB E50102)
21	R31573	2	TUBE	(RC) (WITH 88" ADJUSTABLE TREAD FRONT AXLE)
21	R28022	2	TUBE	(RC AND ST)
22	19H1733	2	CAP SCREW	3/8" X 2-1/2"
23	AR51584	2	TIE ROD ASSEMBLY	(SUB FOR AR27350)
24	AR50962	2	AXLE KNEE	(SUB FOR AR27434) (RC)
24	AR50963	2	AXLE KNEE	(SUB FOR AR30538) (RC) (WITH 88" ADJUSTABLE TREAD FRONT AXLE)
24	AR69835	2	AXLE	(SUB FOR AR27536) (ST) (NLA)
24	AR27927	2	AXLE	(HC)
25	19H1798	2	Cap Screw	3/4" X 1-3/4"
25	19H1890	2	Cap Screw	5/8" X 2-3/4"
25	12H236	2	Lock Washer	3/4"
26	B3310R	2	WASHER	-
26	R20135	2	Washer	-
27	R47765	1	STEERING ARM	(SUB FOR R27806) R.H.
27	R47766	1	STEERING ARM	(SUB FOR R27807) L.H.
28	D467R	2	WASHER	-
28	R34757	2	SHIM	-
29	A877R	4	BUSHING	-
30	JD7759	4	Lubrication Fitting	1/8"
31	34H308	4	Spring Pin	1/4" X 1/2"
32	B2693R	2	DUST SHIELD	-
33	A890R	4	WASHER	-
34	AR55180	2	KNUCKLE	381MM (15") (SUB FOR AR28050) (ALSO ORDER R20135 AND 19H1890) (RC)
34	AR55179	2	KNUCKLE	314MM (12-3/4") (SUB FOR AR28545) (ALSO ORDER R20135 AND 19H1890) (ST)
34	AR50981	2	KNUCKLE	(SUB FOR AR28817) (ALSO ORDER R20135 AND 19H1890) (HC)
35	R20255	2	Dust Shield	-

FRONT AXLE KNEE (ROW-CROP, STANDARD WITH LONG WHEEL BASE AND HI-CROP) [02I09]
