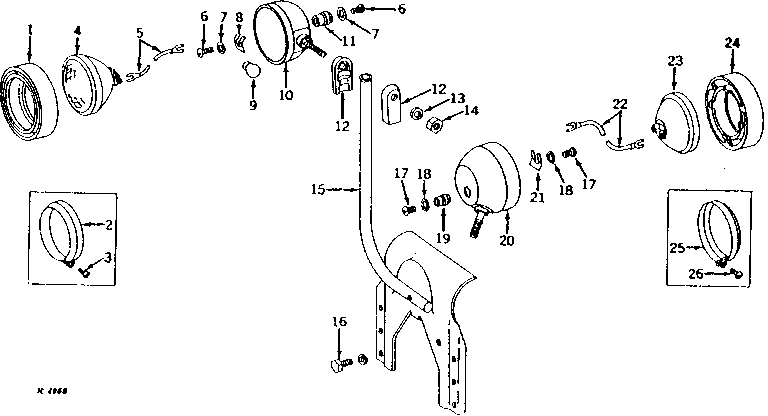

FRONT AND REAR LAMP PARTS AND REAR LAMP SUPPORT [01H05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R31250	1	BEZEL	(GUIDE)
1	R30182	1	BEZEL	(HOBBS)
2	AF3891R	1	MOLDING	-
3	21H1315	1	Screw	0.164" X 3/4"
4	AR21737	1	BULB	(SUB AR77324, AD2062R AND AR77325) (WHEN ORDERED FOR AT16288)
4	AR77324	1	LAMP	(USE WITH AR77326)
5	-	1	Part 7	165MM (6-1/2") (SEALED UNIT TO TERMINAL PLATE) (MAKE FROM R66319 AND (2) R32016)
6	21H1293	4	SCREW	0.164" X 5/16"
7	12M7084	4	Lock Washer	0.169"
8	A2899R	2	SPRING	(GUIDE)
9	AR86969	1	BULB	(15 CP. 12-VOLT) (USE WITH AT16288) (SUB FOR AR21739)
9	AD2062R	1	Bulb	(12-VOLT) (USE WITH AR77326)
10	AR26574	1	TAIL LAMP	(12-VOLT) (SUB AR77326)
10	AR77325	1	SOCKET	(USE WITH AR77326)
10	AR55888	1	SOCKET	(USE WITH AT16288)
10	AR77326	1	FLOODLAMP	(12-VOLT) (SUB FOR AR28227, AT16288 OR AR26574)
11	R30181	2	PLATE	(HOBBS)
11	AA3495R	2	SUPPORT	(GUIDE)
12	R27460	2	ELEC. CONNECTOR ACCESSORY	(RC AND ST)
13	12H301	1	Lock Washer	1/2", (RC AND ST)
14	14H1040	1	Nut	1/2", (RC AND ST)
15	AR26755	1	SUPPORT	(RC AND ST)
16	12H304	2	Lock Washer	3/8", (RC AND ST)
16	19H1936	2	Cap Screw	3/8" X 3/4", (RC AND ST)
17	21H1293	2	SCREW	0.164" X 5/16"
18	12M7084	2	Lock Washer	0.169"
19	R30181	1	PLATE	(HOBBS)
19	AA3495R	1	SUPPORT	(GUIDE)
20	AR28166	1	LAMP	FRONT (12-VOLT) (ST) (SUB FOR AR27574)
20	AT13380	2	FLOODLAMP	FRONT, (12-VOLT) (FENDER LAMP) (RC)
20	AR20443	2	LAMP	FRONT (12-VOLT) (FENDER LAMP) (RC) (SUB AT13380)
20	AT13381	2	HEADLIGHT	FRONT, (12-VOLT) (RC AND HC)
20	AA7322R	2	LAMP	FRONT (12-VOLT) (RC AND HC) (SUB AT13381)
21	A2899R	1	SPRING	(GUIDE)
22	-	1	Part 35	165MM (6-1/2") (SEALED UNIT TO TERMINAL PLATE) (MAKE FROM R66319 AND (2) R32016)
23	AF3892R	1	Bulb	(12-VOLT)
23	AR21059	1	HEADLIGHT	(12-VOLT) (FENDER LAMP) (RC)
23	RE285628	1	FLOODLAMP	LED LAMP, FLOOD PATTERN.
23	RE285629	1	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
24	R30182	1	BEZEL	(HOBBS)
24	R31250	1	BEZEL	(GUIDE)
25	AF3891R	1	MOLDING	-
26	21H1315	1	Screw	0.164" X 3/4"

FRONT AND REAR LAMP PARTS AND REAR LAMP SUPPORT [01H05]
