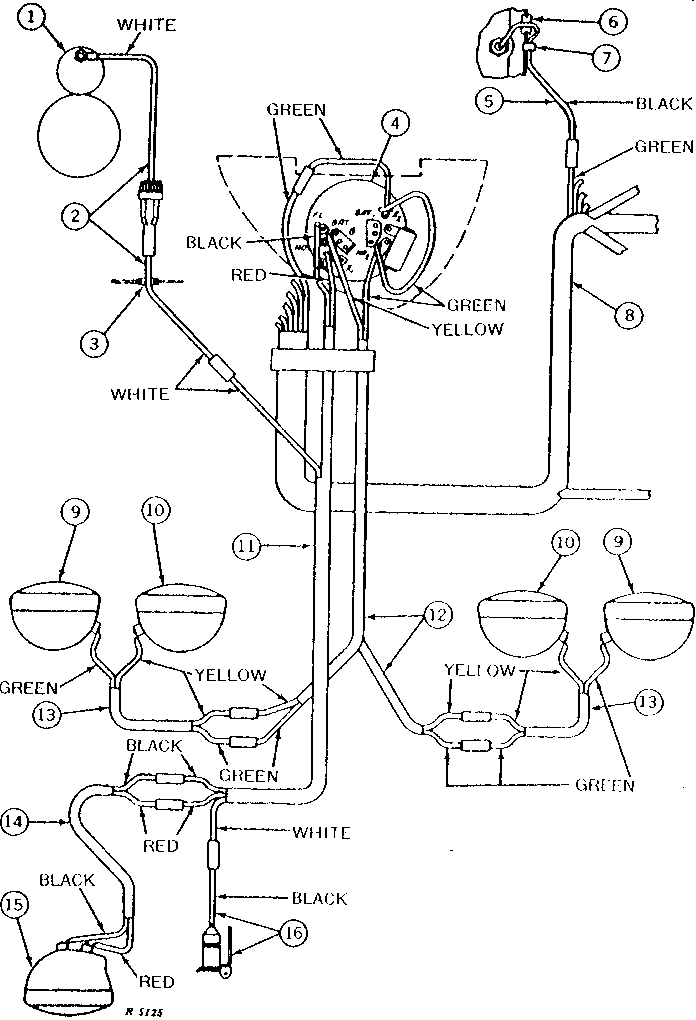

FOUR HEAD LAMP WIRING (ROW-CROP) (DIESEL) [01F12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY6703	1	STARTER MOTOR	(SUB FOR AR11138, AR40134 OR TY6622) (CONTAINS RE39061) (REMANUFACTURED)
1	SE501445	1	STARTER MOTOR	(REMANUFACTURED FOR TY6703)
1	AR40134	1	STARTER MOTOR	(24-VOLT) (DELCO-REMY NO. 1113190) (SUB FOR AR28053 OR AR11138) (SUB TY6703)
2	AR26756	1	WIRING LEAD	-
3	R26941	1	Grommet	-
4	AR28402	1	SWITCH	LIGHT
5	AR33479	1	LAMP	DASH, (SUB FOR AR26757 OR RE13195)
6	A3411R	1	Grommet	-
7	F2084R	1	CLIP	-
8	AR28810	1	WIRING HARNESS	MAIN, (SUB FOR AR26582) (SUB AR47657)
9	F2935R	2	WASHER	(SUB FOR R30402)
9	14H1040	2	Nut	1/2"
9	12H301	2	Lock Washer	1/2", (SUB FOR R30403)
9	R20758	2	WASHER	(SPHERICAL)
9	AT13380	2	FLOODLAMP	(12-VOLT)
9	AR20443	2	LAMP	(12-VOLT) (SUB AT13380)
10	AA7322R	2	LAMP	(SUB AT13381)
10	AT13381	2	HEADLIGHT	-
10	R20758	2	WASHER	(SPHERICAL)
10	F2935R	2	WASHER	(SUB FOR R30402)
10	12H301	2	Lock Washer	1/2", (SUB FOR R30403)
10	14H1040	2	Nut	1/2"
11	AR28929	1	WIRING HARNESS	(LIGHT SWITCH TO REAR LAMP) (SUB FOR AR26573)
12	A5172R	3	CLIP	-
12	12H303	2	Lock Washer	5/16"
12	19H2020	2	Cap Screw	5/16" X 1/2"
12	R27462	2	COVER	(SUB R34046)
12	AR26572	1	WIRING HARNESS	(LIGHT SWITCH TO FENDER LAMP)
12	R34046	2	COVER	(SUB FOR R31562)
13	AR27359	2	WIRING HARNESS	(LIGHT SWITCH TO FENDER LAMP)
13	A4881R	4	CLIP	-
13	19H2487	4	Cap Screw	5/16" X 9/16"
13	12H303	4	Lock Washer	5/16"
13	F2084R	2	CLIP	-
13	A3411R	2	Grommet	-
14	AR26575	1	WIRING HARNESS	(LIGHT SWITCH TO REAR LAMP)
14	R21551	1	CLIP	-
15	AR26574	1	TAIL LAMP	(12-VOLT) (SUB AR77326)
15	14H1040	1	Nut	1/2"
15	12H301	1	Lock Washer	1/2", (SUB FOR R30403)
15	AR77326	1	FLOODLAMP	(12-VOLT) (SUB FOR AR28227, AT16288 OR AR26574)
16	AR26571	1	SOCKET	-
16	21H1301	2	SCREW	0.190" X 1/2"
16	12M7060	2	Washer	0.209"
16	14H778	2	Nut	0.190"
16	AR40710	1	PLUG	(SUB FOR AA5691R) (INCLUDES AA5692R) (FI)
16	AA5692R	1	ELEC. CONNECTOR TERMINAL	-
..	R44302	1	Tie Band	-
