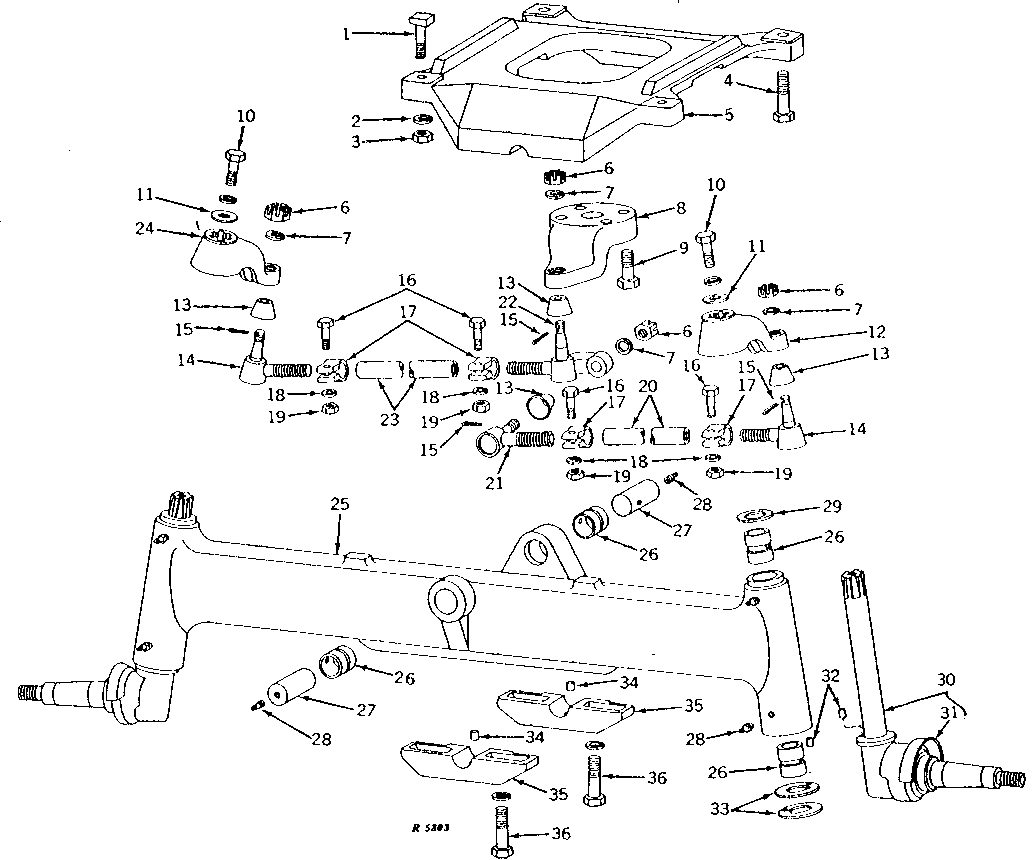

FIXED TREAD FRONT AXLE KNEE AND PIVOT BRACKET (STANDARD WITH SHORT AND LONG WHEEL BASE) [02I13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1847	2	Cap Screw	5/8" X 2-1/2", (ALSO ORDER R49098) (SUB FOR R27818)
2	12H294	2	Lock Washer	5/8"
3	R49098	2	NUT	-
3	14H1039	2	Nut	5/8"
4	19H1862	2	Cap Screw	3/4" X 2-1/2"
5	AR69836	1	BRACKET	(MARKED R27810, R44020 OR R47180) (SUB FOR AR28134 OR AR45677)
6	14H918	4	NUT	5/8"
7	12H294	4	Lock Washer	5/8"
8	R31181	1	ARM	(SHORT WHEEL BASE) (SUB FOR R28116)
8	R27808	1	ARM	(LONG WHEEL BASE)
9	19H2663	4	CAP SCREW	3/4" X 2-1/8"
10	12H236	2	Lock Washer	3/4"
10	19H1798	2	Cap Screw	3/4" X 1-3/4"
11	B3310R	2	WASHER	-
12	R47765	1	STEERING ARM	R.H. (SUB FOR R27806)
13	R40589	4	COVER	(SUB FOR R28019)
14	AR27430	2	TIE ROD END	-
15	11M7083	4	Cotter Pin	0.126" X 1.969"
16	19H2719	4	CAP SCREW	7/16" X 1-7/8"
17	R28023	4	CLAMP	-
18	12H293	4	Lock Washer	7/16"
19	14H1047	4	Nut	7/16"
20	R28114	1	TUBE	R.H.
21	AR27351	1	BALL JOINT	R.H.
22	AR40592	1	TIE ROD END	L.H. (SUB FOR AR27429) (SHORT BASE)
22	AR27351	1	BALL JOINT	L.H. (LONG WHEEL BASE) (NOT AS ILLUSTRATED)
23	R28115	1	TUBE	L.H. (SHORT WHEEL BASE)
23	R28114	1	TUBE	L.H. (LONG WHEEL BASE)
24	R47766	1	STEERING ARM	L.H. (SUB FOR R27807)
25	AR27555	1	FRONT AXLE	(MARKED R27950)
26	A877R	6	BUSHING	-
27	R27817	2	PIN	-
28	JD7759	6	Lubrication Fitting	1/8"
29	D467R	2	WASHER	-
29	R34757	2	SHIM	-
30	AR55179	2	KNUCKLE	(ALSO ORDER R20135 AND 19H1890) (SUB FOR AR28545)
31	R20255	2	Dust Shield	-
32	34H308	4	Spring Pin	1/4" X 1/2"
33	A890R	4	WASHER	-
34	R726R	2	Dowel Pin	-
35	AR30154	2	CLAMP	(MARKED R27809)
36	19H1425	4	CAP SCREW	3/4" X 2-3/4"
36	12H236	4	Lock Washer	3/4"
