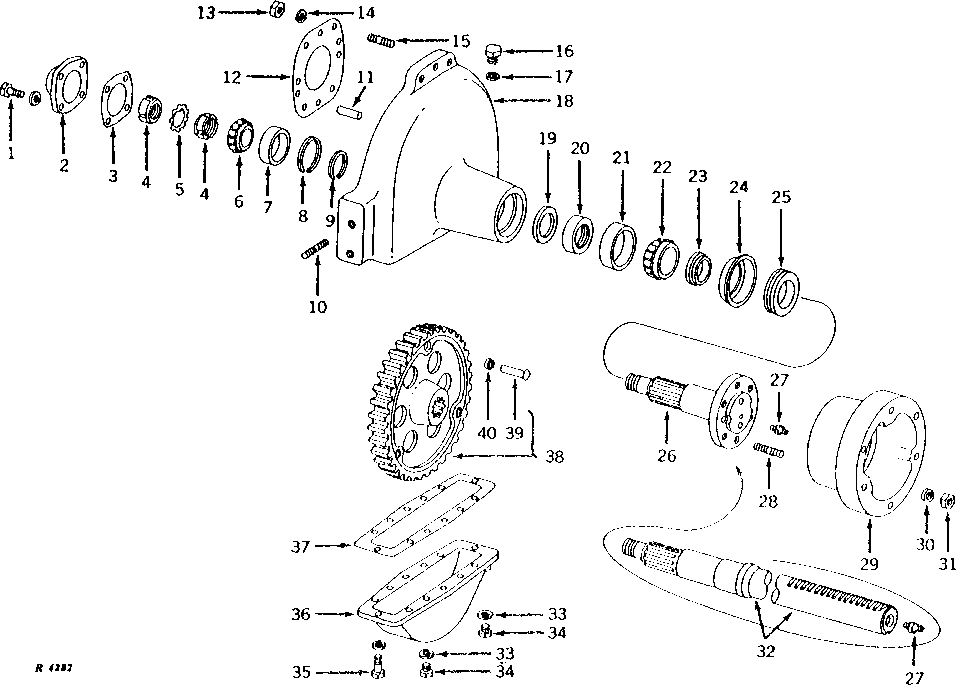

FINAL DRIVE, HOUSING, AND REAR AXLE SHAFTS (HI-CROP) [02C11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	4	Lock Washer	3/8"
1	19H1732	4	Cap Screw	3/8" X 1-1/4"
2	R51608	1	COVER	3/4" X 2-3/4", (SUB FOR F997R) (NLA)
3	R51609	1	GASKET	(SUB FOR F998R)
4	F1483R	2	NUT	-
5	F1484R	1	LOCK WASHER	-
6	JD8149	1	BEARING CONE	-
7	JD7444	1	Bearing Cup	-
8	R81R	1	SNAP RING	-
9	B2342R	1	SNAP RING	-
10	F1024R	2	STUD	3/4" X 2-3/4"
11	F3358R	2	Dowel Pin	-
12	F3357R	1	GASKET	(SUB R98912)
13	14H858	6	NUT	3/4"
14	12H236	6	Lock Washer	3/4"
15	R1548R	6	Stud	3/4" X 3-1/2"
16	F3128R	1	DRAIN PLUG	-
17	A4827R	1	Washer	-
18	AR30474	1	HOUSING	(MARKED R28612) (NLA)
19	F228R	1	WASHER	-
20	AF316R	1	SEAL	-
21	JD7448	1	Bearing Cup	-
22	JD8112	1	BEARING CONE	-
23	F785R	1	SPACER	-
24	R28128	1	RETAINER	(SUB R57269)
25	RE31701	1	Seal	(ALSO ORDER R57269) (SUB FOR AR27446 OR AR52260)
26	AF1160R	1	SHAFT	(NLA)
27	JD7759	1	Lubrication Fitting	1/8"
28	A2833R	6	STUD	7/8" X 3-1/4"
29	R28578	1	HUB	(NLA)
30	12H245	6	Lock Washer	7/8"
31	14H1077	6	Nut	7/8"
32	AR21601	1	SHAFT	-
33	R229R	2	Washer	-
34	R228R	2	Fitting	-
35	19H1978	12	Cap Screw	7/16" X 1-1/2"
35	12H293	12	Lock Washer	7/16"
36	F999R	1	COVER	(NLA)
37	F1000R	1	GASKET	-
38	AR27746	1	GEAR	(NLA)
39	16H1175	3	RIVET	5/16" X 2-1/2"
40	R31R	6	WASHER	(NLA)

FINAL DRIVE, HOUSING, AND REAR AXLE SHAFTS (HI-CROP) [02C11]

Нет текстового описания
