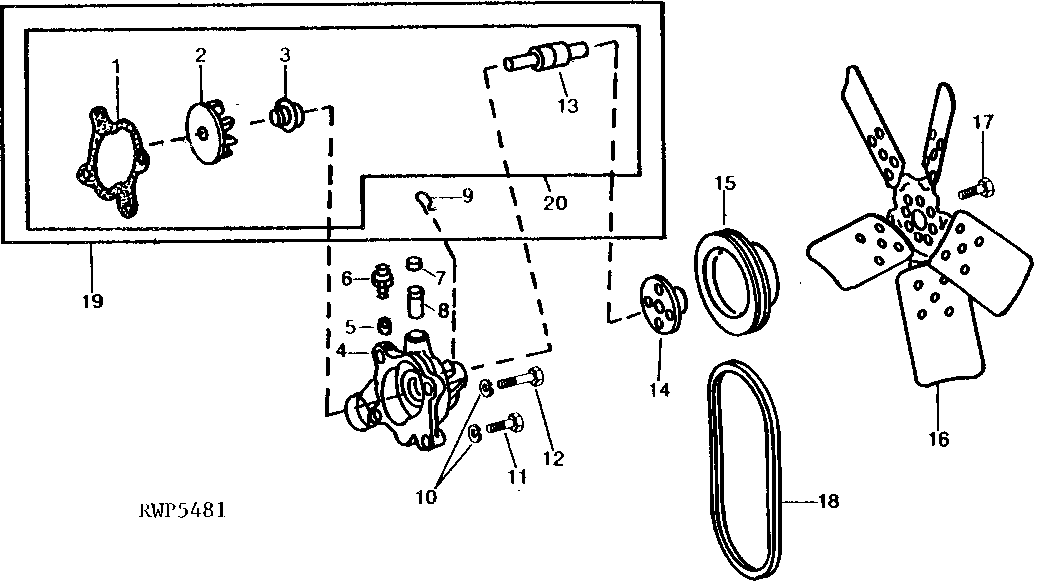

FAN AND WATER PUMP (GASOLINE AND LP-GAS) [01C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26331	1	GASKET	-
2	R40978	1	IMPELLER	(ALSO ORDER AR62933) (SUB FOR AR31896 OR R31425) (USE WITH R26326, R34976 OR R34981)
2	R41321	1	IMPELLER	(USE WITH R41313, R41317 OR R44119)
3	AR62933	1	SEAL KIT	(ALSO ORDER R40978) (SUB FOR R32622 OR AR40698)
4	AR45330	1	WATER PUMP	COMPLETE, (MARKED R26326, R34976, R34981, R41317, R41313 OR R44119) (SUB FOR AR31894, AR34855, AR26380, AR31262, AR44378 OR AR40921)
5	15H559	1	Pipe Plug	1/4"
6	R26892	1	Fitting	-
7	R34987	1	CAP	(NLA)
8	R34985	1	Line	-
9	R1529R	1	RETAINER	-
10	12H304	4	Lock Washer	3/8"
11	19H1800	3	Cap Screw	3/8" X 1-1/2"
12	19H3181	1	CAP SCREW	3/8" X 2"
13	JD9212	1	BALL BEARING	(USE WITH R26326, R34976 OR R34981) (INCLUDED IN AR55616)
13	JD9355	1	BALL BEARING	(USE WITH R41313, R41317 OR R44119) (INCLUDED IN AR55618)
14	R40662	1	HUB	(SUB FOR R26329)
15	R40212	1	PULLEY	(GASOLINE) (SUB FOR R33380 OR AR40149)
15	R40211	1	PULLEY	(LP-GAS) (SUB FOR AR40148)
16	AR34451	1	FAN	(SUB FOR AR32172) (ALSO ORDER R34090) (IF NOT PREVIOUSLY INSTALLED)
17	19H2284	4	Cap Screw	3/8" X 7/8"
18	R41627	1	V-BELT	(SUB FOR R26606)
19	AR55616	1	KIT	-
20	AR55618	1	KIT	-

FAN AND WATER PUMP (GASOLINE AND LP-GAS) [01C06]
