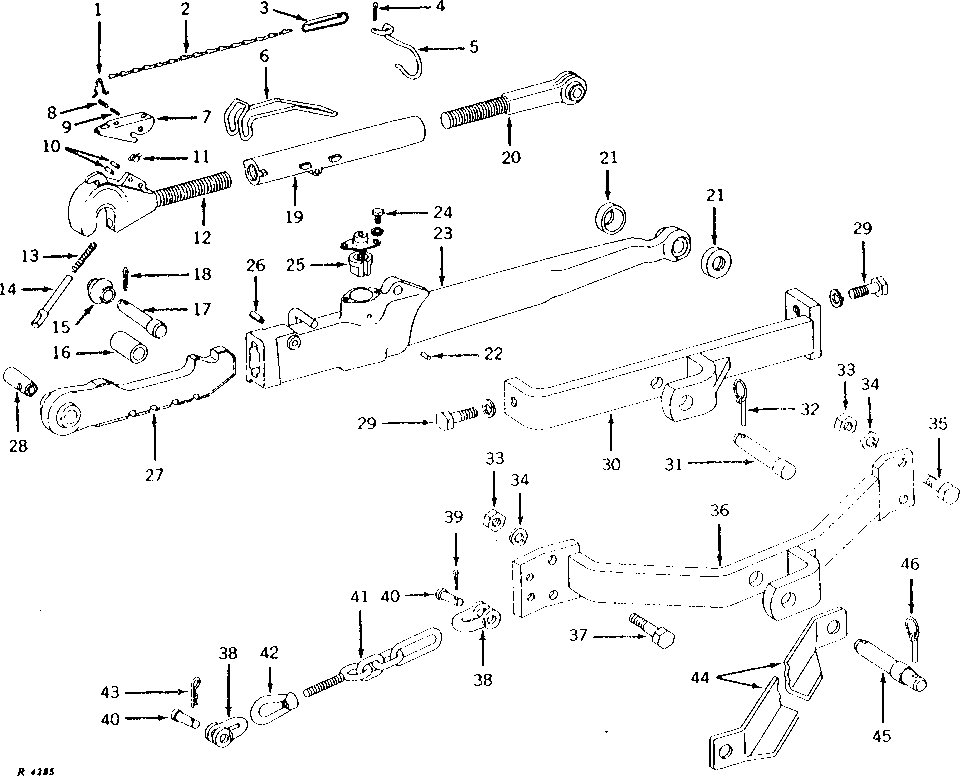

DRAFT LINKS, CENTER LINK, AND SUPPORTS (HI-CROP) [02F13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F2949R	1	CLIP	(NLA)
2	R26814	1	LINK CHAIN	(NLA)
3	F2827R	1	CLIP	-
4	11M7059	1	Cotter Pin	3.200 X 20 MM
5	R53762	1	HOOK	(SUB FOR R26901, R39119 AND R47072)
6	R42495	1	HANDLE	(SUB FOR R27007)
7	F2824R	1	HANDLE	-
8	34H299	1	Spring Pin	7/32" X 1-1/4"
9	34H252	1	SPRING PIN	1/8" X 1-1/4"
10	34H283	2	Spring Pin	3/16" X 1-1/8"
11	F2823R	1	Spring	-
12	F2820R	1	LINK END	-
13	F2822R	1	SPRING	-
14	R53196	1	LATCH	(SUB FOR F2821R)
15	F2681R	1	BALL	(B)
15	F2680R	1	BALL STUD	(A)
16	28H1753	1	BUSHING	(B)
17	R58262	1	Pin	(A) (SUB FOR F2682R, R28061 OR R44917)
17	R53296	1	Pin Fastener	(B) (SUB FOR F2683R)
18	11M7040	1	Cotter Pin	0.248" X 1.969"
19	T12552	1	LINK BODY	(NLA)
20	AT11685	1	END	-
21	R26608	4	Washer	-
22	B2641R	2	DOWEL PIN	-
23	AR69315	1	LINK BODY	R.H. (SUB FOR AR27649) (NLA)
23	AR69316	1	LINK BODY	L.H. (SUB FOR AR27650) (NLA)
24	19H1227	4	Cap Screw	1/4" X 1/2"
24	12H302	4	Lock Washer	1/4"
25	AR69317	2	LATCH	(SUB FOR AR30288)
26	34H371	2	Spring Pin	1/2" X 2"
27	AR27645	1	DRAFT LINK END	R.H. (MARKED R28255)
27	AR27646	1	DRAFT LINK END	L.H. (MARKED R28256)
28	R66432	2	Bushing	(A) (SUB FOR F2684R)
28	R66433	2	Bushing	(B) (SUB FOR F2685R)
29	19H2589	6	Cap Screw	3/4" X 1-7/8"
29	12H236	6	Lock Washer	3/4"
30	AR27647	2	SUPPORT	(HITCH FOR WIDE CLEARANCE IMPLEMENTS) (NLA)
31	R26609	2	PIN	-
32	AR62151	2	Quick Lock Pin	(SUB FOR B11182) (SUB M115827)
33	14H794	8	Nut	3/4"
34	12H236	8	Lock Washer	3/4"
35	19H1782	4	Cap Screw	3/4" X 2-1/4"
36	AR31963	1	SUPPORT	L.H. (HITCH FOR CATEGORY I OR II IMPLEMENTS) (SUB FOR AR27651) (ALSO ORDER AR31962) (NLA)
36	AR31962	1	SUPPORT	R.H. (HITCH FOR MODIFIED CATEGORY I OR II IMPLEMENTS) (SUB FOR AR27651) (ALSO ORDER AR31963) (NLA)
37	19H1715	4	Cap Screw	3/4" X 3"
38	31603	4	CLEVIS	(NLA)
39	11M7084	2	Cotter Pin	5 X 25 MM
40	RV695A	4	PIN FASTENER	(SUB FOR DA4560A)
41	AR27790	2	LINK CHAIN	(NLA)
42	R21342	2	NUT	-
43	A3581R	2	Spring Locking Pin	-
44	R28272	2	BRACE	(NLA)
45	R28271	2	PIN	(NLA)
46	AR62151	4	Quick Lock Pin	(SUB FOR B11182) (SUB M115827)
..	AF2710R	1	BALL	(A) (SUB F2680R, R58262, 11M7038, (2) R66432 AND (2) R66433) (BALL INNER DIAMETER, 49/64")
..	AF2711R	1	BALL	(B) (CONSISTS OF F2681R, R53296, 28H1753 AND 11M7040) (BALL INNER DIAMETER, 1-1/64")
..	AF3147R	1	BAR	-
