DIFFERENTIAL DRIVE AND BEVEL PINION SHAFT ASSEMBLY [02B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

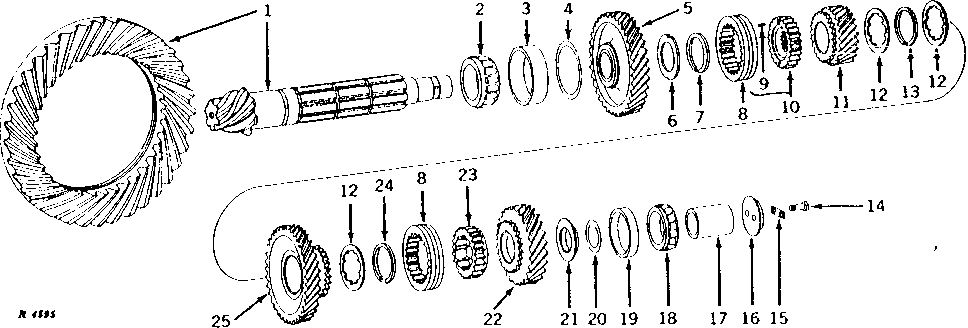

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR31183	1	BEVEL GEAR	(MARKED R26031 AND R32105) (SUB AR31182, (2) R26227, (4) R26228, (2) R26230 AND (4) R26231) (MATCHED SET)
1	AR28665	1	BEVEL GEAR	(MARKED R26031 AND R26097) (SUB AR31182, (2) R26227, (4) R26228, (2) R26230, (4) R26231, AR39828, R31533 AND R39873)
2	JD8917	1	Bearing Cone	-
3	JD8246	1	Bearing Cup	-
4	R26227	1	Shim	0.08 MM (.003")
4	R26228	1	Shim	0.13 MM (.005")
4	R26229	1	Shim	0.25 MM (.010") (SUB R26228)
5	AR26458	1	GEAR	(MARKED R26063) (SUB AR39828, R31533 AND R39873) (1ST AND 3RD SPEED)
5	AR31187	1	GEAR	(MARKED R32188) (SUB AR39828, R31533 AND R39873) (1ST AND 3RD SPEED)
5	AR39828	1	GEAR	(MARKED R39872) (USE WITH R31533 AND R39873) (1ST AND 3RD SPEED)
6	R26064	1	THRUST WASHER	-
7	R46400	1	SNAP RING	(SUB FOR R26211)
8	R26066	2	SPLINED COUPLING	-
9	34H241	2	Spring Pin	1/8" X 3/8"
10	AR26329	1	GEAR	-
11	R26067	1	GEAR	(26 TEETH) (6TH AND 8TH SPEED)
12	R26068	3	WASHER	-
13	R46402	1	SNAP RING	(SUB FOR R26212)
14	19H1731	2	Cap Screw	3/8" X 1"
15	R26072	1	STRAP	-
16	R26071	1	PLATE	(LESS PTO)
17	R27327	1	Spacer	(LESS PTO)
18	JD8924	1	Bearing Cone	-
19	JD7425	1	Bearing Cup	-
20	R26230	1	SHIM	0.08 MM (.003") (SUB FOR R26320)
20	R26231	1	SHIM	0.13 MM (.005")
20	R26232	1	SHIM	0.25 MM (.010") (SUB R26231)
21	R26819	1	THRUST WASHER	-
22	R33370	1	GEAR	(33 TEETH) (4TH AND 7TH SPEED) (SUB FOR R26818)
23	R46435	1	GEAR	(SUB FOR R26069)
24	R46403	1	SNAP RING	(SUB FOR R26213)
25	R26236	1	GEAR	(42 TEETH) (2ND AND 5TH SPEED)
