Открытый узел

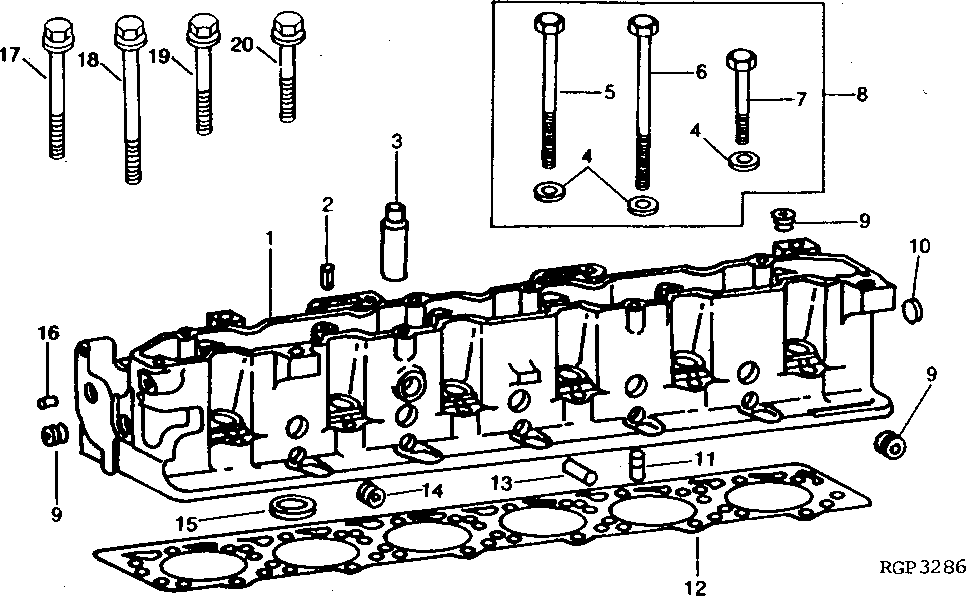

CYLINDER HEAD AND VALVE GUIDES [01B04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR47074	1	CYLINDER HEAD	(A) (NLA) (MARKED R45190) (USE WITH R40940 OR R49550)
1	AR34866	1	CYLINDER HEAD	(A) (MARKED R26040, R34990 OR R47130) (SUB FOR AR26314, AR26315, AR34865 OR AR47078) (NLA)
1	AR26316	1	CYLINDER HEAD	(B) (NLA) (MARKED R26050)
2	34H387	1	Spring Pin	3/16" X 3/4"
3	R28653	12	BUSHING	(A)
3	R28654	12	BUSHING	(B)
4	R76126	26	Washer	(SUB FOR R42364) (USE WITH R42462, R42463, R42466, R45161, R45192, R45193, R45194, R45195, R62418, R62419, R62420 OR R62421)
5	R42464	15	CAP SCREW	9/16" X 6"
5	R45193	8	Bolt	9/16" X 6-3/8", (USE WITH R40930, R40940 OR R49550) (SUB R88044)
5	R45194	7	Bolt	9/16" X 7-1/2", (USE WITH R40930, R40940 OR R49550) (SUB R88045)
6	R42463	5	CAP SCREW	9/16" X 5"
6	R45192	5	Bolt	9/16" X 5-3/8", (USE WITH R40930, R40940 OR R49550) (SUB R88043)
7	R42466	6	CAP SCREW	(A) 9/16" X 2-1/8"
7	R45161	6	CAP SCREW	(A) 9/16" X 2-3/4", (USE WITH R40940 OR R49550)
7	R42462	6	CAP SCREW	(B) 9/16" X 3"
7	R45195	6	BOLT	(B) 9/16" X 3-3/8", (USE WITH R40930) (SUB R88042)
8	AR47127	1	SCREW AND WASHER KIT	(B) (SUB (6) R88042, (5) R88043, (8) R88044 AND (7) R88045) (USED W/BLOCK MARKED R40930)
8	AR44528	1	SCREW AND WASHER KIT	(A) (NLA) (SUB (5) R42463, (15) R42464, (6) R42466 AND (26) R76126)
8	AR44793	1	SCREW AND WASHER KIT	(B) (NLA) (SUB (6) R42462, (5) R42463, (15) R42464 AND (26) R76126)
9	15H690	8	Pipe Plug	3/4"
10	30H37	1	PLUG	(A) 1" (NLA)
11	R32680	5	TUBE	(B)
12	R45615	1	ENGINE CYLINDER HEAD GASKET	(SUB FOR R26208, R34311 OR R40974)
13	R27548	1	TUBE	(B)
14	15H624	6	Pipe Plug	1/2", (SUB FOR A3125R)
15	R43681	6	VALVE SEAT INSERT	(B) (EXHAUST) (USE WHEN REQUIRED)
15	R43682	6	VALVE SEAT INSERT	(B) (INTAKE) 0.25MM (.010") OS (USE, WHEN REQUIRED)
15	R43680	6	VALVE SEAT INSERT	(B) (INTAKE) (USE WHEN REQUIRED)
15	R43683	6	VALVE SEAT INSERT	(B) (EXHAUST) 0.25MM (.010") OS (USE, WHEN REQUIRED)
15	R34593	6	VALVE SEAT INSERT	0.25MM (.010") OS, (SUB FOR R28974) (LP-GAS)
15	R33634	6	VALVE SEAT INSERT	(A)
16	F1743R	1	Dowel Pin	-
17	R88044	8	CAP SCREW	(SUB FOR R45193 OR R62419) (USE WITH R40930, R40940 OR R49550)
18	R88045	7	CAP SCREW	(SUB FOR R45194 OR R62420) (USE WITH R40930, R40940 OR R49550)
19	R88043	5	Cap Screw	(SUB FOR R45192 OR R62418) (USE WITH R40930, R40940 OR R49550)
20	R88042	6	CAP SCREW	(B) (SUB FOR R45195 OR R62421) (USE WITH R40930)
..	AT107509	1	Plug	(NOT SHOWN)

CYLINDER HEAD AND VALVE GUIDES [01B04]

Нет текстового описания
