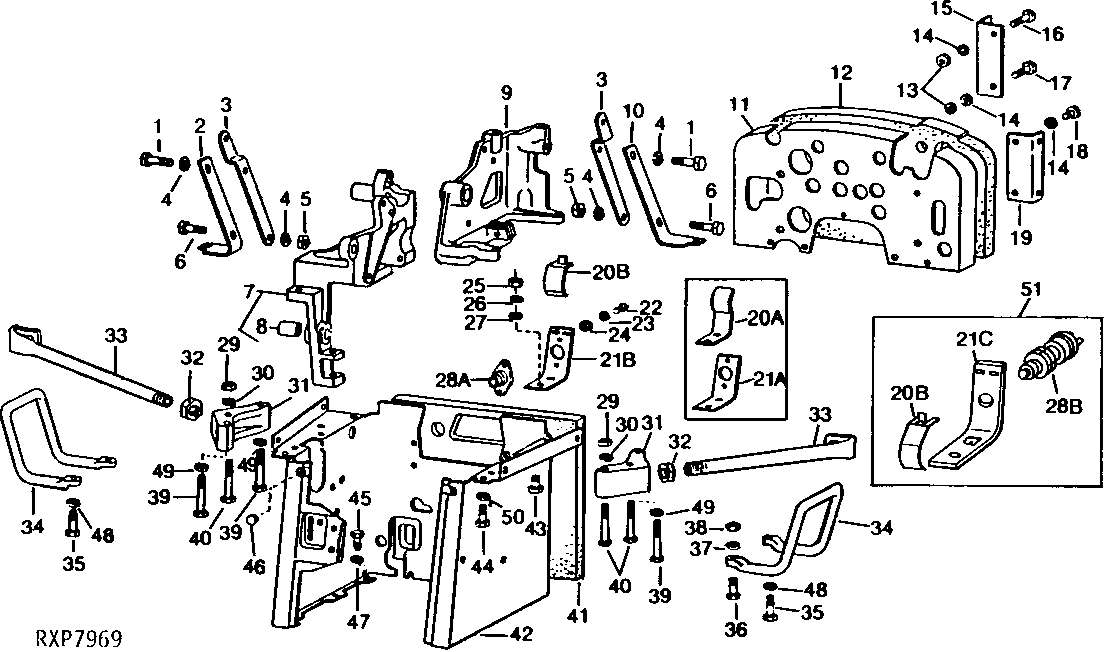

CONTROL SUPPORT, STEERING VALVE BRACKETS AND LAMP SUPPORTS [02K17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2552	2	CAP SCREW	3/8" X 1-1/8"
2	R31231	1	SUPPORT	HOOD, L.H. (SUB FOR R26897) (ALSO ORDER R31229 AND 19H2552)
3	R31229	2	SUPPORT	DASH (NLA)
4	12H310	4	Lock Washer	3/8"
5	14H1076	2	Nut	3/8"
6	19H1731	2	Cap Screw	3/8" X 1"
7	AR31492	1	BRACKET	L.H. (MARKED R27566 OR R32265) (SUB FOR AR26784) (NLA)
8	R27567	1	BUSHING	-
9	R47079	1	BRACKET	R.H. (SUB FOR R26951, R30860 AND R32390) (ALSO ORDER A3376R AND 11M7081)
10	R31230	1	SUPPORT	R.H. (SUB FOR R26896) (ALSO ORDER R31229 AND 19H2552) (NLA)
11	AR34927	1	ISOLATOR	(SUB FOR AR27211 OR AR30305) (NLA)
12	R56059	1	PAD	(SUB FOR R27403, R32401 OR R34562)
13	14H1076	2	Nut	(A) 3/8"
14	12H304	4	Lock Washer	(A) 3/8"
15	R26895	1	ANGLE	(A) (NLA)
16	19H1726	1	Cap Screw	(A) 3/8" X 2-1/4"
17	19H1765	1	Cap Screw	(A) 3/8" X 1-3/4"
18	19H2284	2	Cap Screw	3/8" X 7/8"
19	R26895	1	ANGLE	(NLA)
22	21H1298	2	Screw	0.190" X 3/8"
23	12H246	2	LOCK WASHER	0.190"
24	14H631	2	Nut	0.190"
25	14H1076	1	Nut	3/8"
26	12H304	1	Lock Washer	3/8"
27	24H1305	1	Washer	13/32" X 13/16" X 0.065"
29	14H1076	2	Nut	3/8"
30	12H304	2	Lock Washer	3/8"
31	R27942	2	BRACKET	(NLA)
32	C985R	2	NUT	-
33	R27941	2	SUPPORT	(NLA)
34	R27884	2	PIN	(NLA)
35	19H1732	3	Cap Screw	3/8" X 1-1/4"
36	19H1731	1	Cap Screw	3/8" X 1"
37	12H304	1	Lock Washer	3/8"
38	14H1076	1	Nut	3/8"
39	19H1733	3	CAP SCREW	3/8" X 2-1/2"
40	19H1733	3	CAP SCREW	3/8" X 2-1/2"
41	R26675	1	FOAM PAD	(GASOLINE AND LP-GAS) (NLA)
41	R44586	1	PAD	(SUB FOR R26676 OR R34565) (DIESEL)
42	AR32818	1	SUPPORT	(SUB FOR AR26591) (NLA)
43	19H1936	1	Cap Screw	3/8" X 3/4"
44	19H1731	2	Cap Screw	3/8" X 1"
45	19H1936	6	Cap Screw	3/8" X 3/4"
46	R28473	1	Plug	-
47	12H304	6	Lock Washer	3/8"
48	12H304	3	Lock Washer	3/8"
49	12H304	3	Lock Washer	3/8"
50	12H304	2	Lock Washer	3/8"
51	RE42069	1	STARTER MOTOR KIT	-
20A	R26705	1	SPRING	(STEEL NEUTRAL-START SWITCH ARM) (SUB RE42069)
20B	R32115	1	GUARD	(PLASTIC NEUTRAL-START SWITCH ARM)
21A	R26674	1	BRACKET	(STEEL NEUTRAL-START SWITCH ARM) (SUB RE42069 AND R32113)
21B	R32114	1	BRACKET	(PLASTIC NEUTRAL-START SWITCH ARM) (SUB RE42069 AND R32113)
21C	R100723	1	BRACKET	-
28A	AR26413	1	SWITCH	(SUB RE42069, THIS APPLICATION)
28B	AH98872	1	Switch	-

CONTROL SUPPORT, STEERING VALVE BRACKETS AND LAMP SUPPORTS [02K17]
