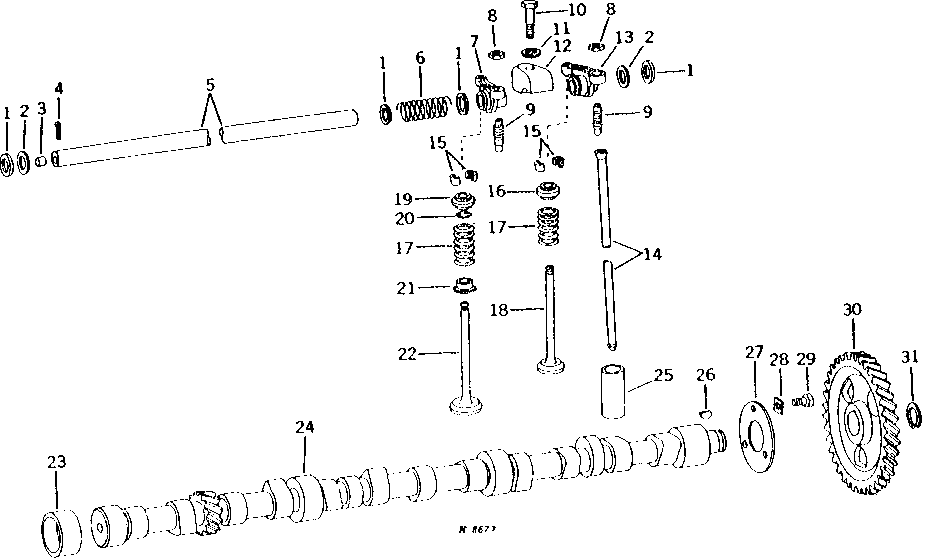

CAMSHAFT, ROCKER ARMS AND VALVES [01B07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1384	12	Washer	49/64" X 1-1/16" X 0.036"
2	R26081	2	Washer	-
3	R27529	2	PLUG	-
4	11M7082	2	Cotter Pin	2.500 X 25 MM
5	R70826	1	Rocker Arm Shaft	(ALSO ORDER (2) R54565) (SUB FOR AR26444 OR R54564)
6	R26079	5	Spring	-
7	AR54905	6	ROCKER ARM	(SUB FOR AR26446 OR AR34294)
8	14H846	12	NUT	3/8"
9	R27443	12	Set Screw	-
10	19H1740	6	Cap Screw	7/16" X 1-3/4"
11	R26559	6	Washer	-
12	R26748	6	Clamp	-
13	AR54904	6	ROCKER ARM	(SUB FOR AR26445 OR AR34293)
14	AR26355	12	PUSH ROD	(A)
14	R85027	12	Push Rod	(USE WITH R40930)
14	AR40680	12	PUSH ROD	(USE WITH R40930) (SUB R85027)
14	AR26356	12	PUSH ROD	(B)
14	AR40679	12	PUSH ROD	(A) (USE WITH R40940 OR R49550)
15	B367R	24	RETAINER	-
16	AR26336	6	ROTATOR	(GASOLINE)
16	AR26337	6	ROTATOR	(B)
17	R26110	12	SPRING	(A)
17	R26125	12	Spring	(B)
18	R26123	6	EXHAUST VALVE	(B)
18	R42420	6	EXHAUST VALVE	(A) (SUB FOR R26108)
19	R26111	1	CAP	(6 USED GASOLINE) (12 USED LP-GAS)
19	R40223	6	CAP	(B) (SUB FOR R26126)
19	AR40163	3	SEAL	(B) (SET OF 2) (INCLUDES R40223)
19	AR41690	3	SEAL	(B) (SET OF 2)
20	R27976	6	O-Ring	(A)
21	R27975	6	SPACER	(A)
22	R26109	6	INTAKE VALVE	(A)
22	R26124	6	INTAKE VALVE	(B)
23	R46903	4	BUSHING	(USE WITH R40930, R40940, R49550 OR R26070) (SUB FOR R26114 OR R42339)
24	AR32732	1	CAMSHAFT	(B) (MARKED R32425 OR R33778) (CONTAINS R33778 AND R32428) (SUB FOR R26750 OR AR31683) (ALSO ORDER R32426) (USE WITH BLOCK R26070, R33180, R34340, R40890 OR R40900) (NOT AS SHOWN) (ALSO ORDER AR30012 FOR 15 TOOTH REQUIREMENT)
24	AR49145	1	CAMSHAFT	(B) (MARKED R46428) (CONSISTS OF R32428, R46428 AND (12) R52773) (USE WITH R26060 OR R40930)
24	AR49144	1	CAMSHAFT	(A) (MARKED R46428) (CONTAINS AR31684, R46428 AND (12) R52773) (USE WITH R40940 OR R49550) (NLA)
24	AR32731	1	CAMSHAFT	(A) (MARKED R32425 OR R33778) (CONTAINS AR31684 AND R33778) (SUB FOR R26750 OR AR31682) (NOT AS SHOWN) (ALSO ORDER AR30012 FOR 15 TOOTH REQUIREMENT)
25	R26342	12	CAM FOLLOWER	-
25	R52773	12	CAM FOLLOWER	(USE WITH R40930, R40940 OR R49550) (SUB FOR R40906)
26	26H72	1	Shaft Key	1/8" X 5/8"
27	R26078	1	WASHER	(3 HOLE PATTERN) (SHOWN)
27	R40634	1	THRUST WASHER	(4 HOLE PATTERN) (NOT SHOWN) (USE WITH R40930, R40940 OR R49550)
27	R43754	1	WASHER	(USE WITH R35127)
28	T13857	3	LOCK PLATE	-
29	19H1813	3	CAP SCREW	5/16" X 5/8"
29	19H1813	4	CAP SCREW	5/16" X 5/8", (USE WITH R40930, R40940 OR R49550)
30	AR43594	1	GEAR	(MARKED R42354 OR R43742) (SUB FOR R26077)
31	F534R	1	Snap Ring	-
