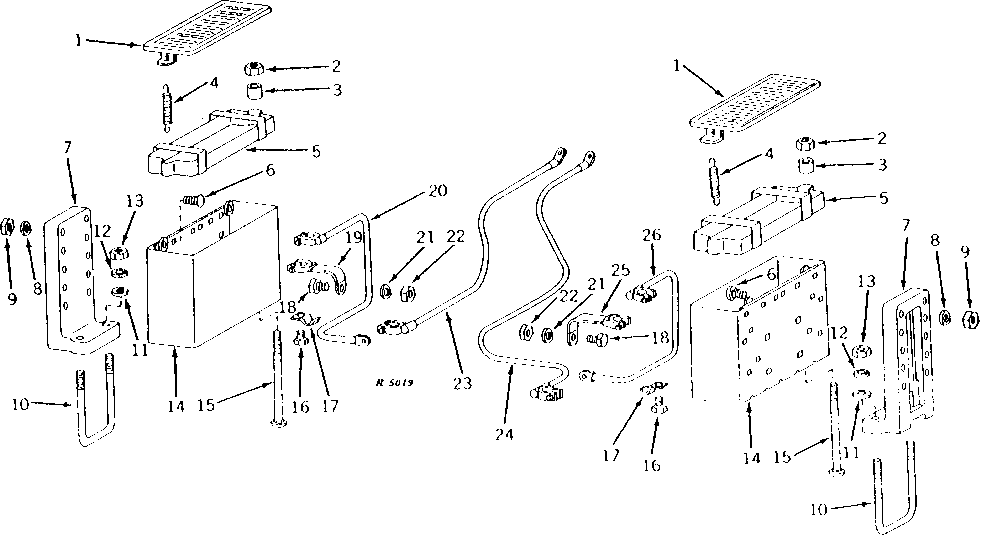

BATTERY BOXES FOR COLD WEATHER STARTING (ROW-CROP) (DIESEL) [02J14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR30468	2	COVER	(SUB FOR AR27363)
2	14H786	4	Nut	1/4"
3	R20522	4	Bushing	-
4	R2577R	4	Extension Spring	-
5	AR26469	2	HOLD-DOWN CLIP	-
6	03H1596	8	Bolt	1/2" X 3"
7	R70588	2	SUPPORT	(A) (SUB FOR R26991, R32120, R41296 OR R54541)
8	12H301	8	Lock Washer	(A) 1/2"
9	14H1040	8	Nut	(A) 1/2"
10	R26992	2	U-BOLT	(A)
11	24H1139	4	Washer	(A) 11/16" X 1-1/4" X 0.105"
12	12H294	4	Lock Washer	(A) 5/8"
13	14H1039	4	Nut	(A) 5/8"
14	AR40039	2	BATTERY BOX	(SUB FOR AR27362 OR AR34613)
15	03H2173	4	Bolt	1/4" X 9-3/4"
16	19H2479	2	Cap Screw	1/4" X 3/8"
17	R28133	2	CLIP	(NLA)
18	19H1936	2	Cap Screw	3/8" X 3/4"
19	AM348T	1	GROUND CABLE	L.H.
20	AR28234	1	BATTERY CABLE	(L.H. AUXILIARY BATTERY TO REGULAR BATTERY-NEGATIVE)
21	12H304	2	Lock Washer	3/8"
22	14H1076	2	Nut	3/8"
23	AR28235	1	BATTERY CABLE	L.H. (NEGATIVE)
24	AR28237	1	BATTERY CABLE	R.H. (POSITIVE)
25	AT18702	1	GROUND CABLE	(SUB FOR AR27367)
26	AR28236	1	BATTERY CABLE	(R.H. AUXILIARY BATTERY TO REGULAR BATTERY-POSITIVE)

BATTERY BOXES FOR COLD WEATHER STARTING (ROW-CROP) (DIESEL) [02J14]
