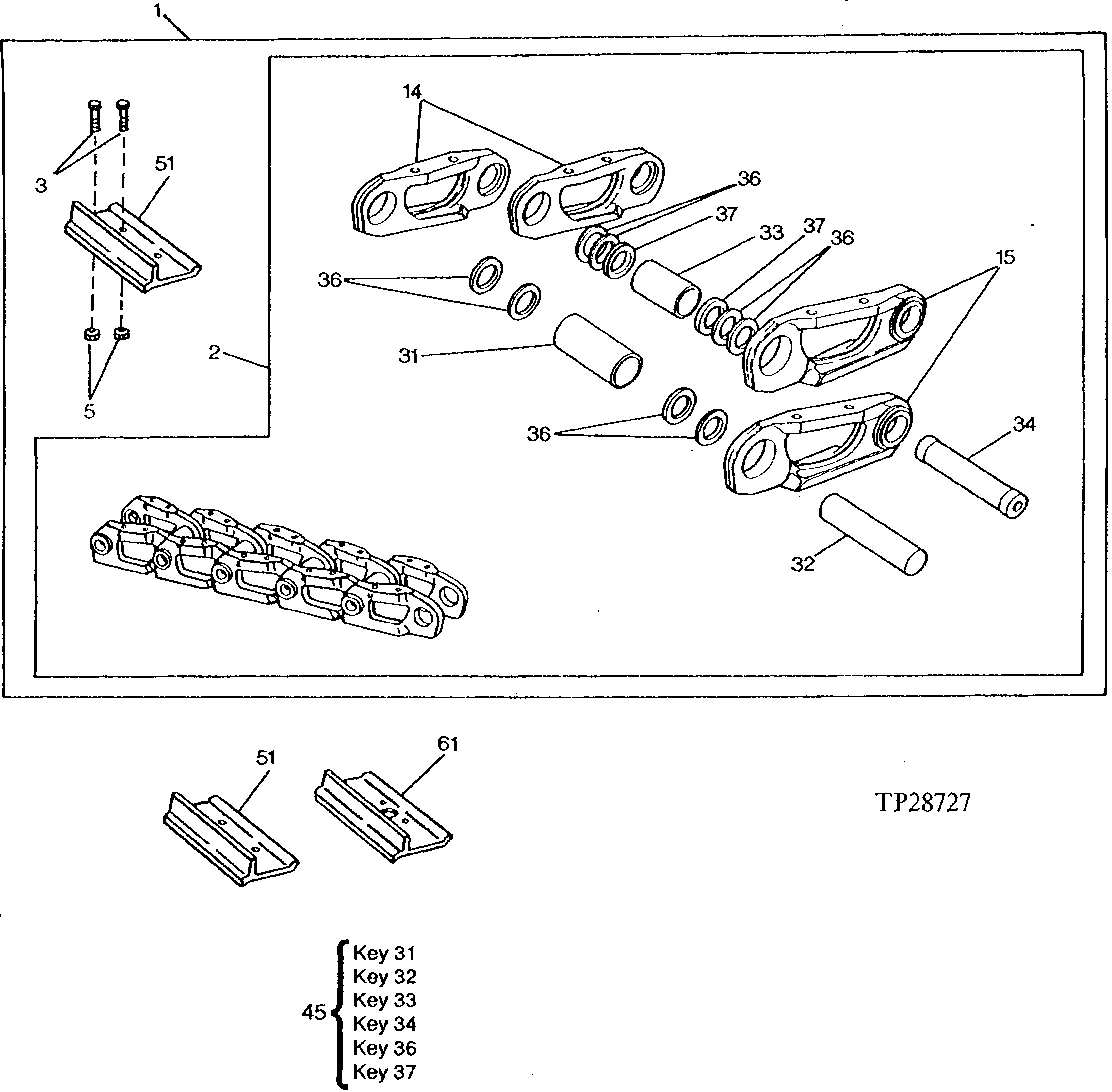

SEALED TRACK CHAIN, WITH NON-STRUTTED LINKS STD (36L) AND LT (39L) [01B03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT135994	2	TRACK CHAIN W/O SHOES	355MM (14") (39L) (SUB FOR AT148540)
1	AT120429	2	TRACK ASSEMBLY WITH SHOES	355MM (14") (36L) (SUB FOR AT148531 AND AT120428) OPEN CENTER SHOES (NOT ILLUSTRATED)
1	AT120431	2	TRACK ASSEMBLY WITH SHOES	355MM (14") (36L) (SUB FOR AT148532)
2	AT112966	1	TRACK CHAIN W/O SHOES	(36L) (SUB FOR AT113023 AND AT148528)
2	AT113098	1	TRACK CHAIN W/O SHOES	(39L) (SUB FOR AT135998 AND AT148541)
3	T40535	1	BOLT	(QUANTITY IS 144 OR 156) (USE IF AVAILABLE) (SUB T130032 AND T129173)
3	T130032	1	BOLT	(QUANTITY IS 144 0R 156) (SUB FOR T40535 - ALSO ORDER T129173)
5	T14913	1	NUT	(QUANTITY IS 144 OR 156) (USE IF AVAILABLE) (SUB T129173 AND T130032)
5	T129173	1	NUT	(QUANTITY IS 144 OR 156) (SUB FOR T14913 - ALSO ORDER T130032)
14	T112147	1	NON-STRUTTED LINK-LH	L.H. (QUANTITY IS 36 OR 39)
15	T112148	1	NON-STRUTTED LINK-RH	R.H. (QUANTITY IS 36 OR 39)
31	T112149	1	BUSHING	(QUANTITY IS 35 OR 38)
32	T19563	1	TRACK PIN	(QUANTITY IS 35 OR 38)
33	T19562	1	BUSHING	-
36	T112132	1	SPRING WASHER	(QUANTITY IS 144 OR 156)
37	T112150	2	WASHER	-
45	AT113024	1	PIN & BUSHING KIT	(STANDARD) (FOR LONG TRACK) (ALSO ORDER (12) T112132, (3) T112149 AND (3) T19563)
51	T112407	36	SINGLE BAR SHOE	355MM (14")
61	T112408	36	OPEN CENTER 1 BAR SHOE	355MM (14")
34A	T54529	1	MASTER TRACK PIN	-
34B	T61367	1	MASTER TRACK PIN	(OVERSIZE)

SEALED TRACK CHAIN, WITH NON-STRUTTED LINKS STD (36L) AND LT (39L) [01B03]
