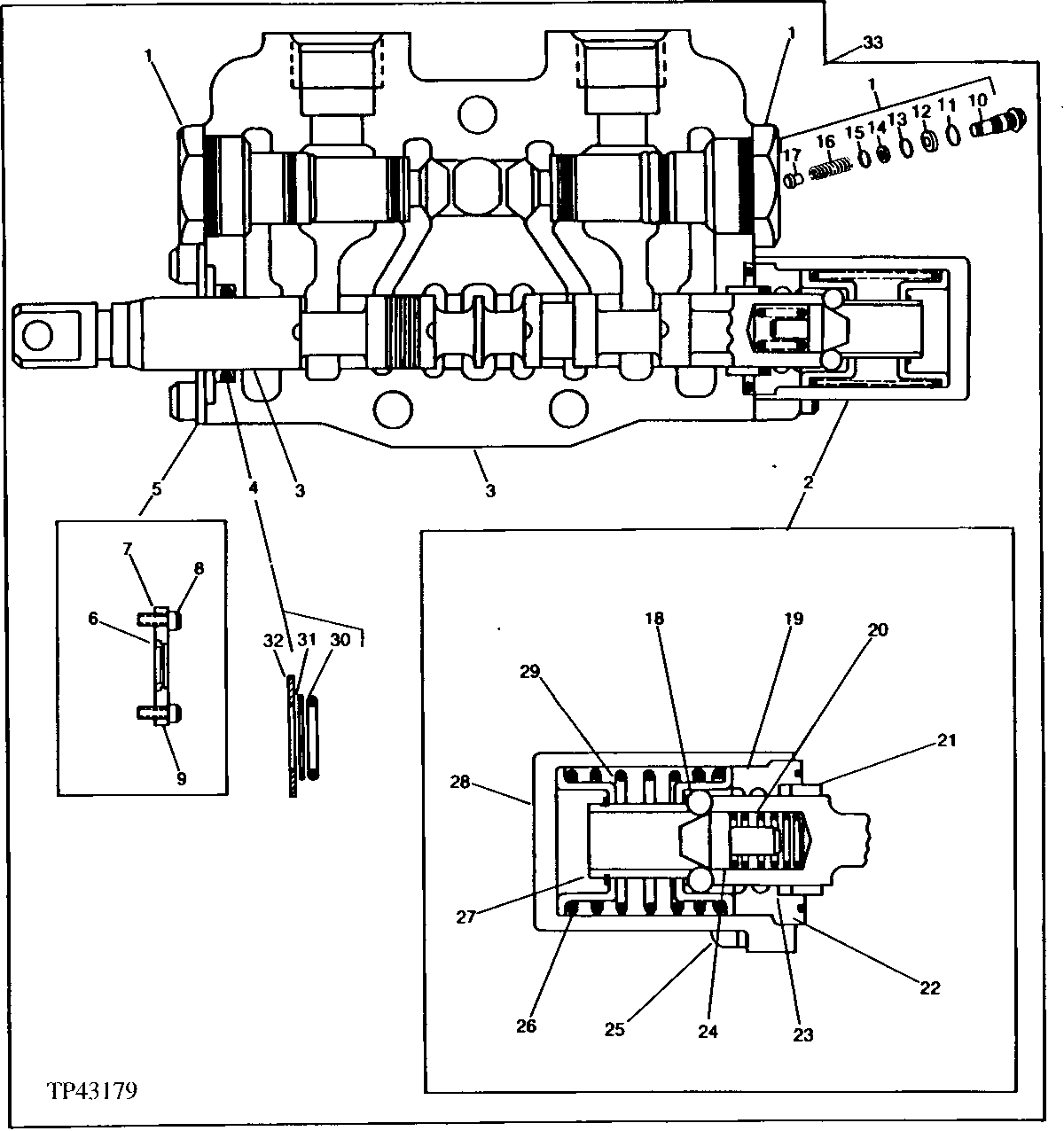

FLOAT SECTION VALVE (SEE REPLACEMENT FLOAT SECTION VALVE) [02C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT38197	2	Plug	(LIFT CHECK)
2	AT114502	1	Retainer	(SPOOL POSITIONER) (SUB FOR AT117861)
2	AT160313	1	RETAINER	(SUB FOR AT157420)
3	-	1	Part 4	(SUB AT82917, FLOAT SECTION VALVE)
4	AT135676	1	SEAL KIT	(SEAL SPOOL KIT) (USE IF AVAILABLE) (SUB FOR AT120547)
5	AT315751	1	Seal Kit	(SUB FOR AT107871, AT135683 AND AT167443) (SEAL-HD RETAINER WITH WIPER)
6	-	1	Part 7	(K) ( T35973 AND T126105 NO LONGER AVAILABLE)
7	T113012	1	PLATE	(WIPER)
8	19H3554	2	Screw	1/4" X 0.880", (SUB FOR T104773, THIS APPLICATION)
9	T104784	3	PLATE	SEAL RETAINER
10	-	1	Part 11	BODY ( T43091 NO LONGER AVAILABLE)
11	W19903	3	O-Ring	(K1)
12	T35985	2	Back-Up Ring	(K1)
13	T77932	2	O-Ring	(K1) (SUB FOR Z29304)
14	T35984	3	Back-Up Ring	SPECIAL INNER
15	H63283	2	O-Ring	(K1)
16	T36012	2	Spring	-
17	U13616	2	Pressure Relief Valve	LIFT CHECK
18	H22694	4	BALL	-
19	T142864	1	Sleeve	DETENT, (SUB FOR T104779)
20	T125549	1	Spring	(SUB FOR T104780)
21	T142865	1	Sleeve	(SUB FOR T104781)
22	U15242	1	O-RING	-
22	T127155	1	O-Ring	(BETWEEN POSITIONER COLLAR AND VALVE BODY)
23	T104783	1	O-Ring	(K) (.103 INCH)
23	U11296	1	O-RING	(K) (.139 INCH)
24	T104782	1	Follower	BALL
25	19H3554	2	Screw	1/4" X 0.880"
25	12H302	2	Lock Washer	1/4"
26	T104774	2	Locking Collar	SPRING
27	A11318	1	Snap Ring	RETAINING
28	T118653	1	Cap	-
29	T125548	1	Spring	(SUB FOR T104777)
29	T142965	1	SPRING	-
30	T104783	1	O-Ring	(K) (.103 INCH)
30	U11296	1	O-RING	(K) (.139 INCH)
31	T104785	1	Back-Up Ring	(K)
32	-	1	Part 38	SEAL RETAINER
33	AT160088	1	SPOOL VALVE	FLOAT SECTION, (SUB FOR AT82917 AND AT148806) (ALSO ORDER AT160682)

FLOAT SECTION VALVE (SEE REPLACEMENT FLOAT SECTION VALVE) [02C19]
