DOZER CONTROL VALVE LINKAGE [02B01]

DOZER CONTROL VALVE LINKAGE [02B01]

DOZER CONTROL VALVE LINKAGE [02B01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

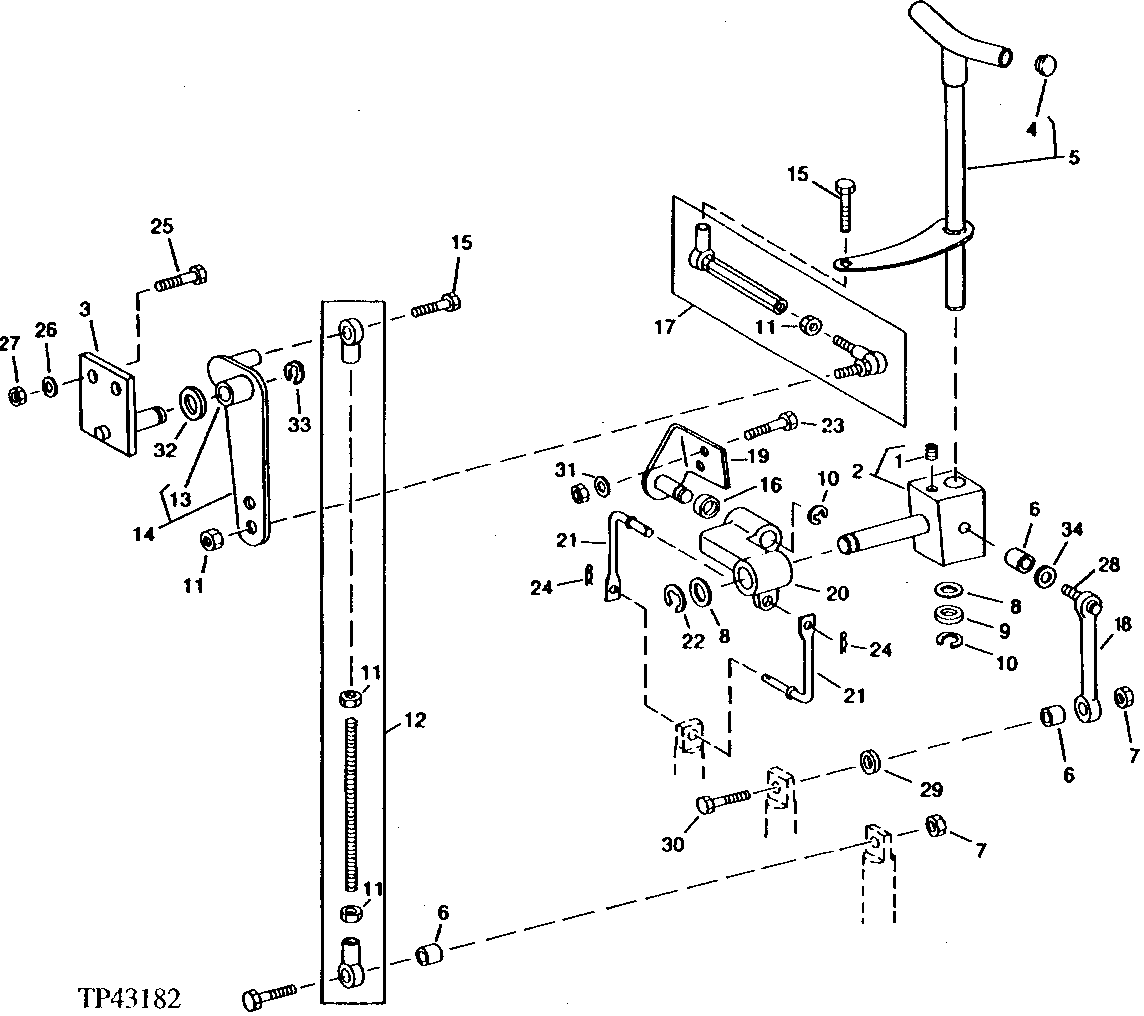

DOZER CONTROL VALVE LINKAGE [02B01]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H842	1	SET SCREW	1/4" X 5/16"
2	AT113566	1	SUPPORT	(INCLUDES T80750)
2	T80750	1	BUSHING	.753 X 1.50
3	AT113568	1	PLATE	-
4	H34597	2	Plug	-
5	AT125295	1	LEVER	-
6	R52516	3	Bushing	(2 - TEE HANDLE TO TILT VALVE SPOOL LINK, ONE ON EACH CAPSCREW) (BETWEEN ANGLE VALVE SPOOL AND ANGLE VALVE SPOOL LINK, ON CAPSCREW)
7	T16464	2	Lock Nut	(VALVE SPOOL CAPSCREW)
8	T35704	1	SHIM	-
9	24H1658	3	Washer	21/32" X 1" X 0.060"
10	F2863R	1	Snap Ring	(T - BAR LINKAGE)
11	14H650	1	Nut	5/16"
12	AT113570	1	BALL JOINT	(ANGLING VALVE BELLCRANK TO ANGLING VALVE SPOOL)
13	R36119	1	Bushing	-
14	AT113571	1	BELLCRANK	-
15	19H2551	2	Cap Screw	5/16" X 3/4", (ANGLING VALVE LINK TO BELLCRANK AND T - BAR)
16	24H1390	1	Shim	0.025", (BOOM PIVOT TO CONTROL HANDLE PIVOT)
17	AT113569	1	BALL JOINT	(ANGLING VALVE BELLCRANK TO T - BAR)
18	AT81323	1	CONNECTING ROD	(TILT LEVER TO SECOND SPOOL)
19	AT81363	1	PIVOT	-
20	AT81364	1	LEVER	(INCLUDES T80749 AND T80750) (TO CONTROL HANDLE PIVOT)
20	T80749	1	BUSHING	.941 X 1.50
20	T80750	1	BUSHING	.753 X 1.50
21	T80752	2	LINK	(BOOM LEVER TO FIRST SPOOL)
22	U30232	1	Snap Ring	(BOOM LEVER TO CONTROL HANDLE PIVOT)
23	03H2108	2	Bolt	3/8" X 7/8", (CONTROL HANDLE PIVOT TO RESERVOIR)
24	11M7081	2	Cotter Pin	2.500 X 20 MM, (TO FIRST SPOOL LINKS)
25	19H1648	6	Cap Screw	3/8" X 3/4", (4 - MOUNTING PLATE TO RESERVOIR) (2 - ANGLING VALVE BELLCRANK SUPPORT TO MOUNTING PLATE)
26	12H304	2	Lock Washer	3/8"
27	14H812	8	NUT	3/8", (2 - ANGLING VALVE BELLCRANK SUPPORT TO MOUNTING PLATE) (4 - MOUNTING PLATE TO RESERVOIR) (2 - CONTROL HANDLE PIVOT CAPSCREWS TO RESERVOIR)
28	19H1849	1	Cap Screw	5/16" X 1-1/4", (TILT VALVE LINK TO T-BAR BLOCK)
29	U13489	2	WASHER	(TILT VALVE SPOOL LINKAGE)
30	19H3130	2	Cap Screw	5/16" X 1-3/4", (ANGLE AND TILT VALVE SPOOL, THRU SPACER TO LINK)
31	24H1305	2	Washer	13/32" X 13/16" X 0.065", (CONTROL HANDLE PIVOT TO RESERVOIR FRONT PLATE CAPSCREWS)
32	24M7229	1	Shim	0.300 MM, (BETWEEN ANGLE SPOOL LINK AND BELLCRANK PIVOT - AS REQUIRED TO MINIMIZE ENDPLAY)
33	T40187	1	Snap Ring	(TO HOLD BELLCRANK PIVOT TO ANGLE SPOOL LINK)
34	24M7238	1	Washer	(BETWEEN TILT VALVE SPOOL LINK AND T-BAR PIVOT BLOCK - WASHER IS USED TO RESTRICT LINK SIDEWAYS MOTION/
