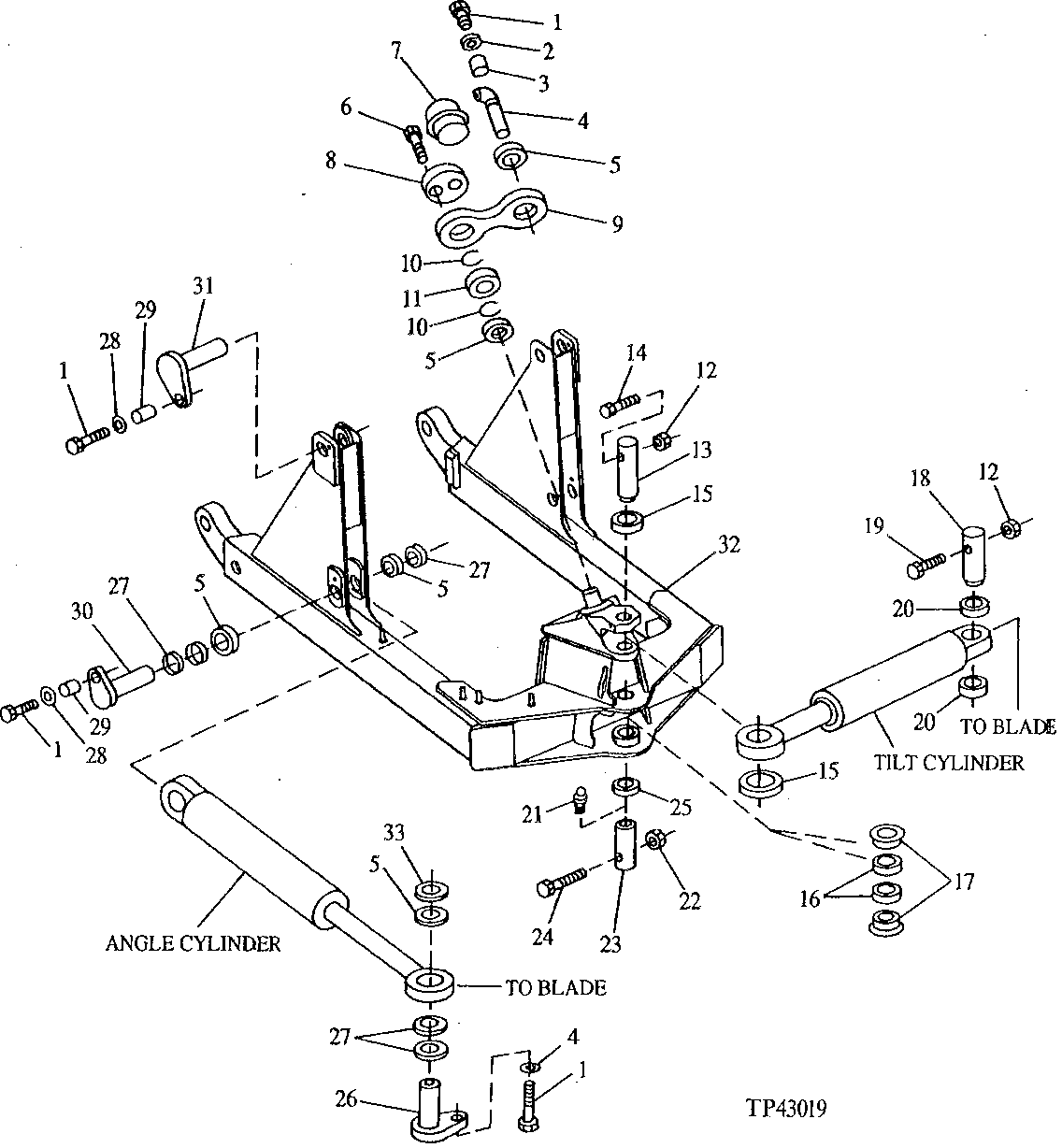

C-FRAME AND FASTENERS (INSIDE DOZER) (SERIAL NO. 780347- ) [02B13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2472	7	Cap Screw	1/2" X 1"
2	28H2482	1	Bushing	0.546" X 0.840" X 1/2"
3	L139T	1	WASHER	-
4	AT135987	1	PIN	(DOZER BLADE TO PITCH STRUT BUSHING)
5	24H1570	1	Washer	1-25/32" X 2-1/4" X 0.120", (EACH SIDE OF SELF ADJUSTING BUSHING)
6	19H2676	2	Cap Screw	3/8" X 1"
7	H81019	1	CAP	-
8	T127504	1	SPACER	-
9	T127503	1	LINK	-
10	40M5099	2	Snap Ring	-
11	AT157173	2	Self-Aligning Bushing	-
12	T11234	4	Lock Nut	-
13	T105049	1	PIN FASTENER	(TILT CYLINDER ROD END)
14	19H1912	1	Cap Screw	3/8" X 3-1/2"
15	T105052	2	Bushing	-
16	T119857	2	Bushing	-
17	T127502	2	SPACER	-
18	T104741	1	Pin Fastener	-
19	19H2700	1	Cap Screw	3/8" X 4-1/2"
20	T120010	2	Bushing	-
21	T162396	1	Lubrication Fitting	(SUB FOR JD7798)
22	14H1040	1	Nut	1/2"
23	T127501	1	PIN	-
24	19H2668	1	Cap Screw	1/2" X 3-1/2"
25	R38064	1	THRUST WASHER	(C-FRAME TO DOZER BLADE AS REQUIRED TO MINIMIZE GAP BETWEEN C-FRAME BOSS AND BUSHING)
26	AT158001	2	PIN FASTENER	-
27	24H1572	1	Washer	1-13/16" X 2-3/8" X 0.060"
28	24M7180	6	Washer	13 X 37 X 3 MM
29	28H1596	6	WASHER	0.546" X 0.840" X 5/16"
30	AT135977	2	PIN FASTENER	-
31	AT135984	2	PIN	-
32	AT135924	1	FRAME	-
33	24H1572	1	Washer	1-13/16" X 2-3/8" X 0.060"

C-FRAME AND FASTENERS (INSIDE DOZER) (SERIAL NO. 780347- ) [02B13]
