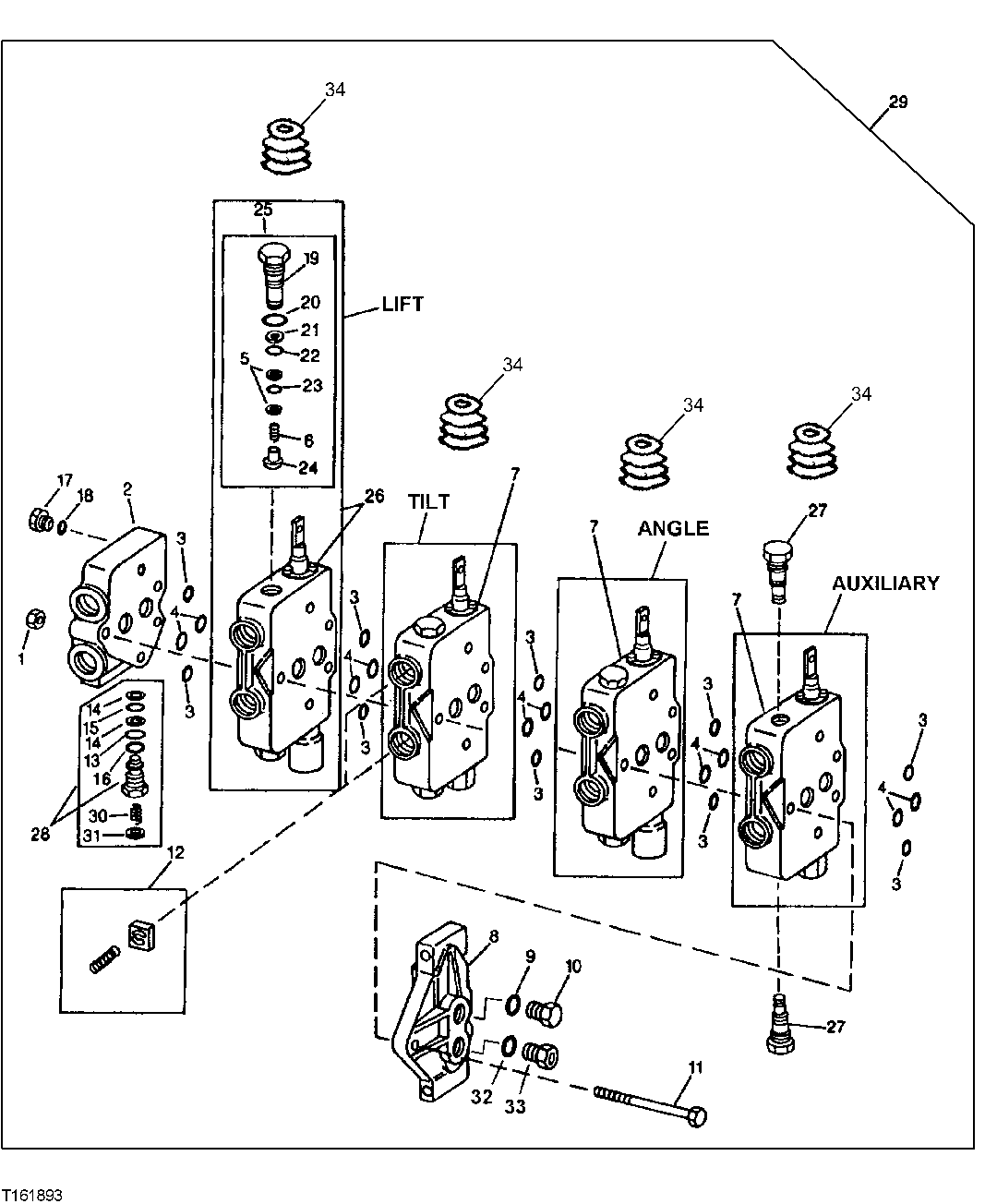

BULLDOZER HYDRAULIC CONTROL VALVE (SERIAL NO. 780347- ) [02C05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1076	3	Nut	3/8"
2	T113058	1	End Plate	(INLET)
3	-	10	Part 3	(K) (ONLY 2 IN KIT)
4	-	10	Part 4	(K) (ONLY 2 IN KIT) ( T113021 - USE IF AVAILABLE)
5	T35984	1	Back-Up Ring	(K1)
6	T36012	1	Spring	-
7	AT113598	3	VALVE	DOZER TILT, ANGLE AND AUXILIARY (USE IF AVAILABLE)
7	AT172503	3	SPOOL VALVE	DOZER TILT, ANGLE AND AUXILIARY, (SUB FOR AT113598, AT150371, AT160090 AND AT168871) (ALSO ORDER AT160682)
8	T145621	1	Cover	(SUB FOR T35987) (OUTLET)
9	U17409	1	O-Ring	-
10	AT101923	1	Fitting Plug	-
11	T81407	3	CAP SCREW	(USE WITH FOUR-SECTION VALVE)
11	19H3394	3	Cap Screw	3/8" X 8", (USE WITH THREE-SECTION VALVE)
12	AT117860	4	Orifice	(TILT AND ANGLE SECTION)
13	U15242	1	O-RING	(K1)
14	T75972	2	Back-Up Ring	(K1)
14	AW17093	1	Pressure Relief Valve	-
15	T44948	1	O-Ring	(K1)
16	W19903	1	O-Ring	(K1)
17	R51031	1	Fitting	-
18	R28782	1	O-Ring	-
19	-	1	Part 22	( T43091 NO LONGER AVAILABLE)
20	W19903	1	O-Ring	(K1)
21	T35985	1	Back-Up Ring	(K1)
22	T77932	1	O-Ring	(K1) (SUB FOR Z29304)
23	H63283	1	O-Ring	(K1)
24	U13616	1	Pressure Relief Valve	-
25	AT38197	1	Plug	(ONE ILLUSTRATED) (TWO USED PER SECTION)
26	AT160088	1	SPOOL VALVE	DOZER LIFT, (SUB FOR AT82917, AT142506 AND AT148806) (ALSO ORDER AT160682)
27	AT120424	2	Pressure Relief Valve	(CIRCUIT RELIEF VALVE)
28	AT117807	1	Pressure Relief Valve	-
29	-	1	Part 32	(AT116600 - NO LONGER AVAILABLE) (THREE-SPOOL)
30	T53182	1	SPRING	-
31	W19898	1	Shim	0.25 MM (.010")
31	W19897	1	Shim	0.51 MM (.020")
31	W20088	1	Washer	1.02 MM (.040")
31	W19900	1	CAP	-
31	W19902	1	WASHER	-
32	U12547	1	O-Ring	-
33	T64769	1	Drain Plug	-
34	T151335	1	Boot	-

BULLDOZER HYDRAULIC CONTROL VALVE (SERIAL NO. 780347- ) [02C05]
