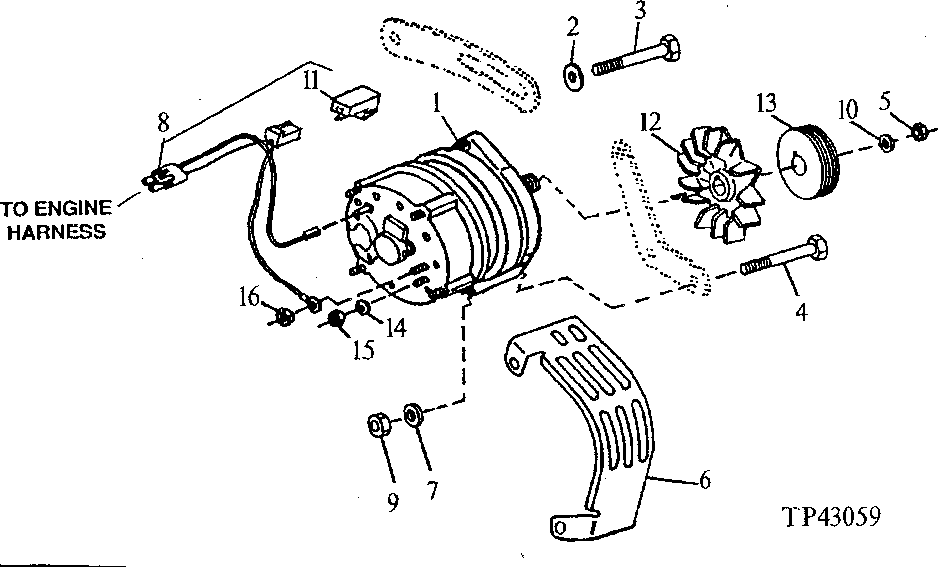

ALTERNATOR AND ATTACHING PARTS (SERIAL NO.788844- ) [01H13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7036	1	Washer	9 X 16 X 1.600 MM, (LEAD TO B+ STUD ON ALTERNATOR)
1	TY24485	1	Alternator	12V-95AMP, REMANUFACTURED (BOSCH)
1	AH137883	1	Alternator	12V-95AMP, NEW (BOSCH) (SUB FOR AT175194 OR AT220394)
1	H144094	1	Voltage Regulator	(USE TO REPAIR 95 AMP ALTERNATOR)
1	H144095	1	Capacitor	(USE TO REPAIR 95 AMP ALTERNATOR)
1	SE501342	1	Alternator Reman	(REMANUFACTURED FOR TY24485)
1	-	1	Part 1	14V-100AMP, REMANUFACTURED ( TY6750 NO LONGER AVAILABLE) (SUB TY24485)
2	24H1621	1	Washer	11/32" X 1" X 0.220"
3	19M7868	1	Screw	M8 X 30, (ADJUSTING STRAP TO ALTERNATOR)
4	19M8081	1	Cap Screw	M10 X 80
5	T10745	1	Washer	-
6	R122848	1	Shield	(SUB FOR R56012)
7	24M7239	1	Washer	10.700 X 21 X 2.500 MM
8	AT160732	1	WIRING HARNESS	-
9	14M7274	1	Nut	M10
10	14M7158	1	Nut	M16
11	AT103399	1	Diode	-
12	L33993	1	FAN	(USE TO REPAIR 95 AMP ALTERNATOR)
13	T123088	1	Pulley	-
14	12M7032	1	Lock Washer	8.400 MM, (SUB FOR 12H291) (OUTPUT TERMINAL)
15	14M7298	1	Flange Nut	M8, (OUTPUT TERMINAL)
16	14M7375	1	Flange Nut	M5, (EXCITATION TERMINAL)

ALTERNATOR AND ATTACHING PARTS (SERIAL NO.788844- ) [01H13]
