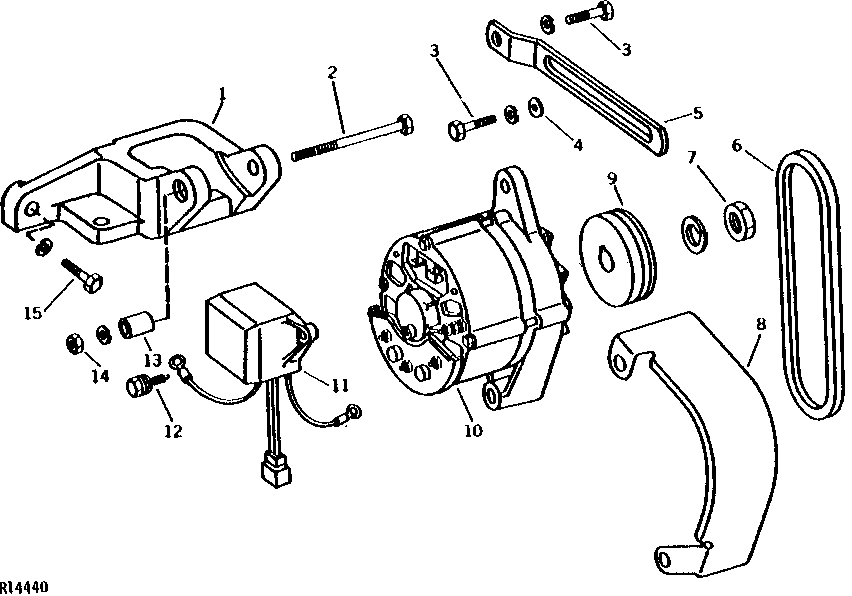

ALTERNATOR, REGULATOR, AND MOUNTING BRACKETS [02C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R40952	1	BRACKET	-
2	19H1854	1	Cap Screw	3/8" X 3-3/4"
3	19H1900	2	Cap Screw	5/16" X 3/4"
3	12H303	2	Lock Washer	5/16"
4	24H1292	1	Washer	11/32" X 3/4" X 0.120"
5	R40953	1	STRAP	-
6	R41681	1	V-BELT	(GASOLINE AND LP-GAS)
6	R41682	1	BELT	(DIESEL) (SUB R71459)
7	14H866	1	Nut	5/8"
7	12H294	1	Lock Washer	5/8"
8	R122848	1	Shield	(SUB FOR R41334 OR R56012)
9	R15019	1	PULLEY	-
10	AR40420	1	ALTERNATOR	(12-VOLT) (55 AMP) (MOTOROLA) (SUB TY26017)
10	SE501357	1	Alternator Reman	12V 55A (REMAN FOR AR40420 OR TY26017)
10	TY24306	1	ALTERNATOR	(12-VOLT) (SUB FOR AR38458 OR TY1427) (35 AMP) (4000 SERIES)
10	AR38458	1	ALTERNATOR	(12-VOLT) (35 AMP) (MOTOROLA) (4000 SERIES) (SUB TY24306)
10	TY24307	1	ALTERNATOR	(12-VOLT) (55 AMP) (SUB FOR TY1430) (SUB TY26017)
11	AR78298	1	VOLTAGE REGULATOR	(12-VOLT) (MOTOROLA) (SUB FOR AR38459 OR AR52927)
12	37H201	3	Screw	(SUB FOR R44008)
13	R45377	1	SPACER	-
14	E55662	1	Flange Nut	-
14	12H304	1	Lock Washer	3/8", (NOT REQUIRED W/E55662)
15	19H2731	2	Cap Screw	7/16" X 1-3/8"
15	12H293	2	Lock Washer	7/16"

ALTERNATOR, REGULATOR, AND MOUNTING BRACKETS [02C23]
