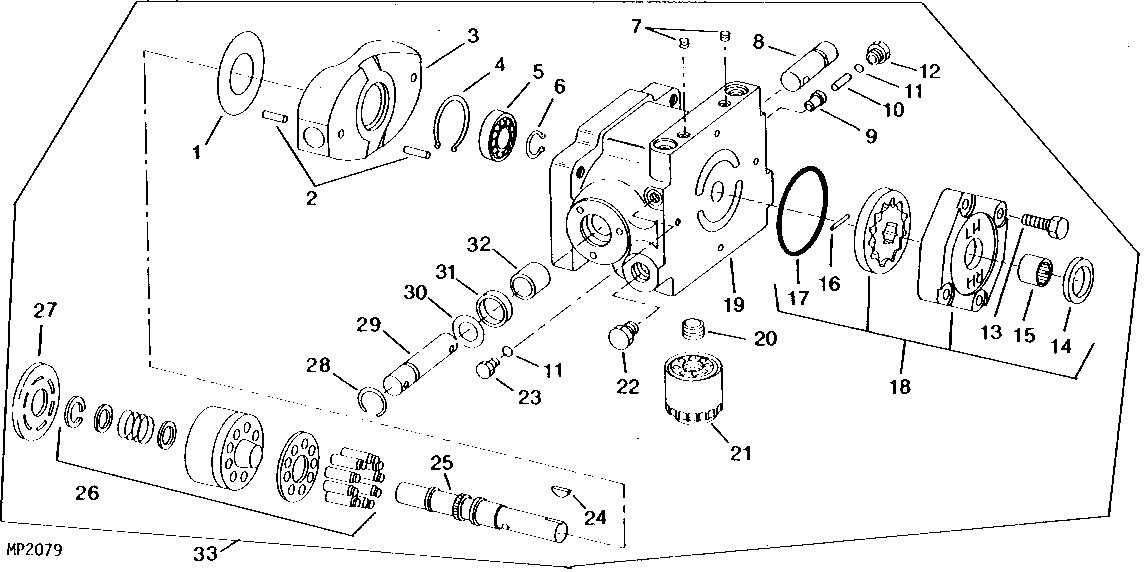

TRANSMISSION PUMP HOUSING, PUMP SHAFT AND CYLINDER BLOCK [C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M49513	1	Plate	-
2	M48918	3	Pin	-
3	M49518	1	Swash Plate	-
4	M49532	1	SNAP RING	-
5	JD9370	1	BALL BEARING	-
6	M44679	1	SNAP RING	-
7	15H558	2	Pipe Plug	1/8"
8	M45404	1	Pin Fastener	-
9	M49528	1	VALVE	-
10	M80323	1	PIN	-
11	M42665	2	O-Ring	-
12	M42671	1	Drain Plug	-
13	19H1849	4	Cap Screw	5/16" X 1-1/4"
14	AT12820	1	Seal	(SUB FOR M49527)
15	M49526	1	NEEDLE BEARING	-
16	M49524	1	PIN FASTENER	-
17	M49523	1	O-RING	-
18	AM37342	1	KIT	(SUB FOR AM35850 AND AM37152) GEROTER AND HOUSING
19	M81604	1	HOUSING	(SUB FOR M49522)
20	M45377	1	Union Fitting	-
21	AM37025	1	FILTER	(SUB FOR AM35176 AND AM31205) (SUB AM38441)
21	AM38441	1	FILTER	-
21	AM39653	1	Oil Filter	-
22	M49521	1	PLUG	-
23	M49519	1	PLUG	-
23	AM37180	1	PLUG	(INCLUDES M42665)
24	26H74	1	Shaft Key	3/16" X 5/8"
25	M49531	1	SHAFT	-
26	AM35564	1	Transmission Kit	CYLINDER BLOCK
27	M49517	1	PLATE	-
28	M45403	2	Snap Ring	-
29	M45405	1	Shaft	-
30	AM37354	2	KIT	(SUB FOR M49529) WASHER
31	M49530	2	SEAL	-
32	JD9906	2	Needle Bearing	-
33	AM36997	1	TRANSMISSION	(SUB FOR AM35365 AND AM36190)

TRANSMISSION PUMP HOUSING, PUMP SHAFT AND CYLINDER BLOCK [C13]
