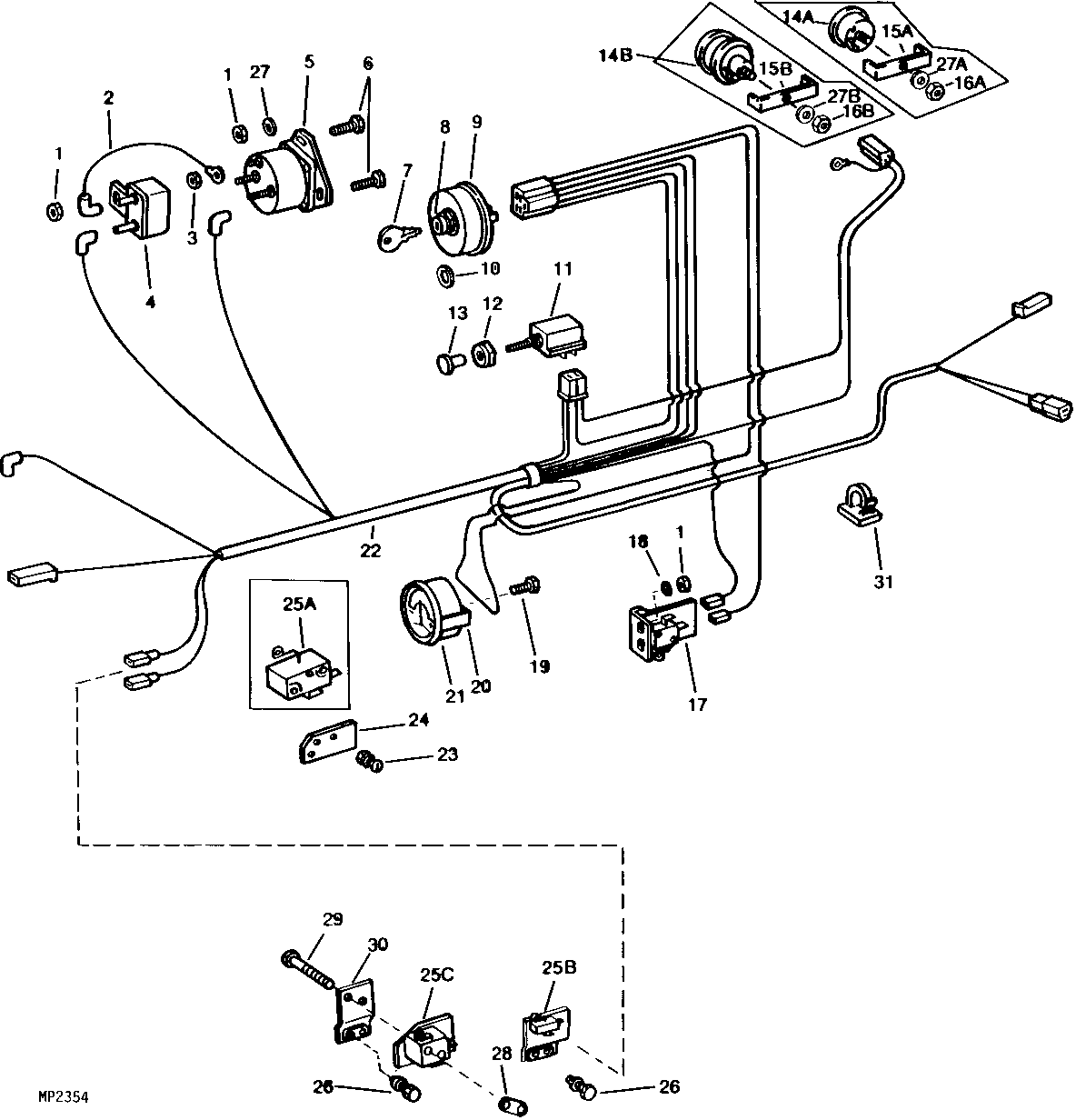

MAIN WIRING HARNESS, SWITCHES, AMMETER AND HOURMETER [A23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H786	4	Nut	1/4"
2	AM33218	1	WIRING LEAD	-
3	14H611	2	Nut	5/16"
4	AM33621	1	CIRCUIT BREAKER	(25 AMP)
5	AM53945	1	Solenoid	(SUB FOR AM52191)
6	19H1227	2	Cap Screw	1/4" X 1/2"
7	M40718	2	Key	-
8	M46820	1	Nut	-
9	AM32318	1	SWITCH	-
10	24H1806	1	Washer	37/64" X 7/8" X 0.036"
11	AM31209	1	SWITCH	(SUB AH85260) LIGHT
12	M42561	1	NUT	-
13	M88376	1	Knob	(SUB FOR AM35311) (INCLUDES SET SCREW)
17	AM35830	1	SWITCH	NEUTRAL START
18	24H1287	1	Washer	9/32" X 5/8" X 0.065"
19	37H91	2	Screw	0.190" X 1/2"
20	M48742	1	CHANNEL	-
21	AM35128	1	AMMETER	-
22	AM36963	1	WIRING HARNESS	-
22	AM36473	1	WIRING HARNESS	(SUB FOR AM35349)
23	14H1000	2	Nut	0.112"
23	M48109	2	WASHER	-
23	21H1381	2	Screw	0.112" X 3/4"
24	M48743	1	INSULATOR	-
26	19H1227	2	Cap Screw	1/4" X 1/2"
26	24H1286	2	Washer	9/32" X 1/2" X 1/16"
28	M80318	1	STRAP	-
29	21H1381	2	Screw	0.112" X 3/4"
29	M80603	2	RIVET	-
30	AM36444	1	BRACKET	-
31	M82916	1	Clip	(PTO SWITCH WIRES TO PEDESTAL SIDE)
14A	AM35203	1	HOUR METER	(SUB AM36345, M80534 AND (2) M43835)
14A	AM36345	1	HOUR METER	(SUB AM100385)
14B	-	1	Part 16	(SUB AM100385)
15A	M83813	1	BRACKET	-
15A	M80534	1	BRACKET	(SUB M83813)
15A	M48726	1	BRACKET	-
15B	M87064	1	Retainer	-
16A	14H778	1	Nut	0.190"
16B	14H605	2	Nut	0.164"
25A	AM35050	1	NEUTRAL START SWITCH	(SUB AM36443) PTO
25B	AM36442	1	SWITCH	PTO
25C	AM36828	1	SWITCH	PTO (DOUBLE CONTROL)
27A	12H295	1	Lock Washer	0.190"
27B	12H315	2	Lock Washer	0.164"

MAIN WIRING HARNESS, SWITCHES, AMMETER AND HOURMETER [A23]
