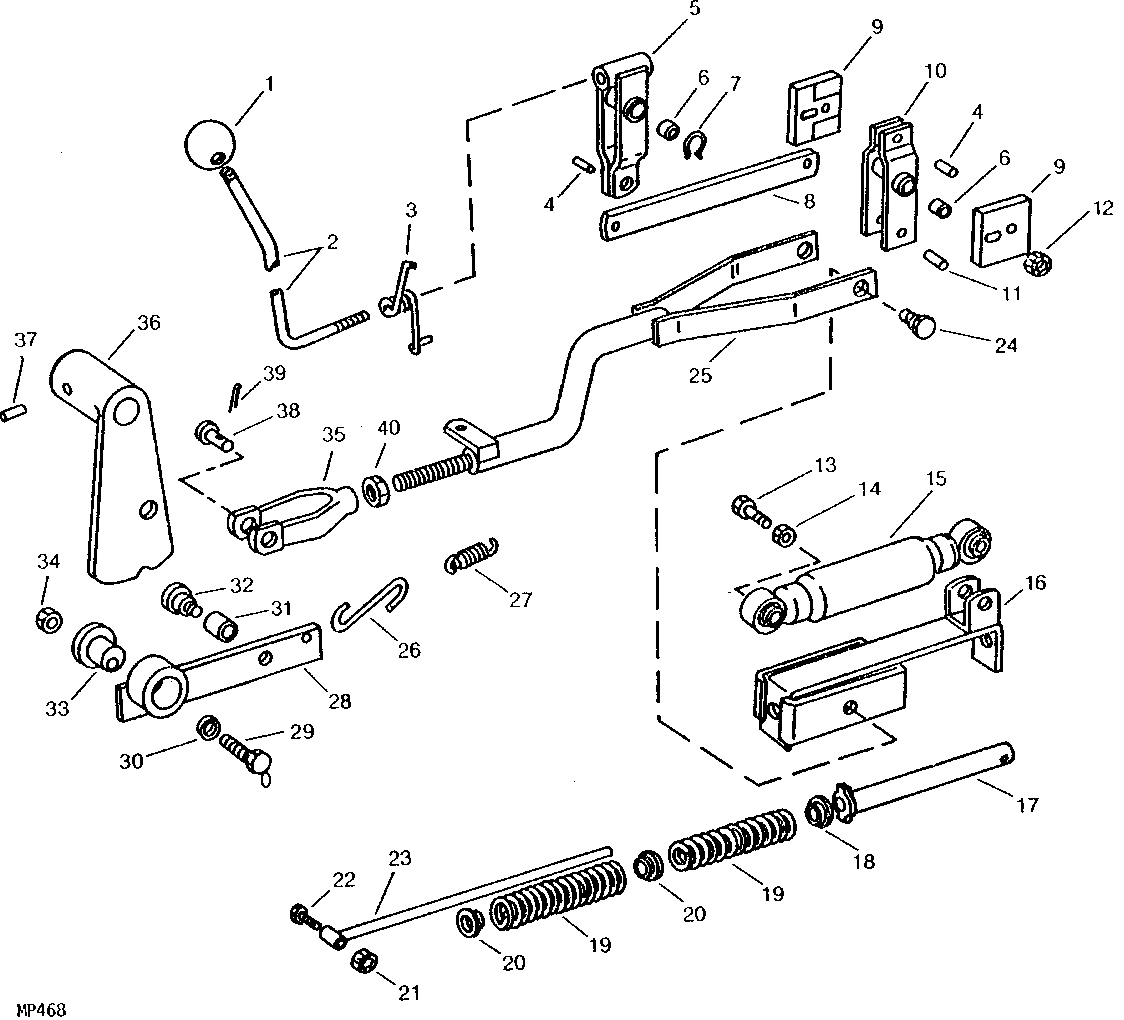

HYDROSTATIC CONTROL LEVER AND LINKAGE (S.N. -55000) [C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M48295	1	Knob	-
2	M48353	1	ROD	-
3	M48354	1	TORSION SPRING	-
4	34H312	2	Spring Pin	1/4" X 1"
5	AM35252	1	CRANK	(SUB AM36180) (SUB AM37773, M83530, M83531 AND M83535)
6	M48355	4	Bushing	-
7	T12808	1	SNAP RING	-
8	M48522	1	STRAP	-
9	AM35594	2	PLATE	-
10	AM35253	1	PIVOT	(SUB AM35218)
11	34H314	1	Spring Pin	1/4" X 1-1/4"
12	T11234	1	Lock Nut	-
13	19H1740	2	Cap Screw	7/16" X 1-3/4"
14	M17841	2	Lock Nut	-
15	AM35220	1	SHOCK ABSORBER	-
16	-	1	Part 16	(SUB AM36576)
17	-	1	Part 17	(SUB AM36576)
18	-	1	Part 18	(SUB AM36576)
19	Z5363H	2	COMPRESSION SPRING	-
20	-	2	Part 20	(SUB AM36576)
21	B14174	1	LOCK NUT	-
22	19H2102	1	Cap Screw	1/4" X 1-3/4"
23	-	1	Part 23	(SUB AM36576)
24	-	2	Part 24	(SUB AM36576)
25	-	1	Part 25	(SUB AM36576)
26	M80106	1	HOOK	(SUB M81451)
27	L1142C	1	Extension Spring	-
28	AM35933	1	ARM	-
29	03H1549	1	Bolt	5/16" X 2-1/4"
30	24H1325	1	Washer	15/32" X 59/64" X 0.065"
31	M42598	1	ROLLER	(SUB M80533)
32	M42370	1	BOLT	-
33	M42371	1	BEARING	-
34	14H785	1	Nut	5/16"
35	L324T	1	Yoke	-
36	M49703	1	ARM	(SUB M80653)
37	M41529	1	GROOVE PIN	-
38	M40753	1	Pin	-
39	11H206	1	Cotter Pin	3/32" X 3/4"
40	14H774	1	Nut	3/8"
..	AM36576	1	CONTROL	(INCLUDES 34H314, AM36508, 14H774, M80533, M42370, 11H206, M80653 AND M80713) CONVERSION (NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENTS)

HYDROSTATIC CONTROL LEVER AND LINKAGE (S.N. -55000) [C09]
