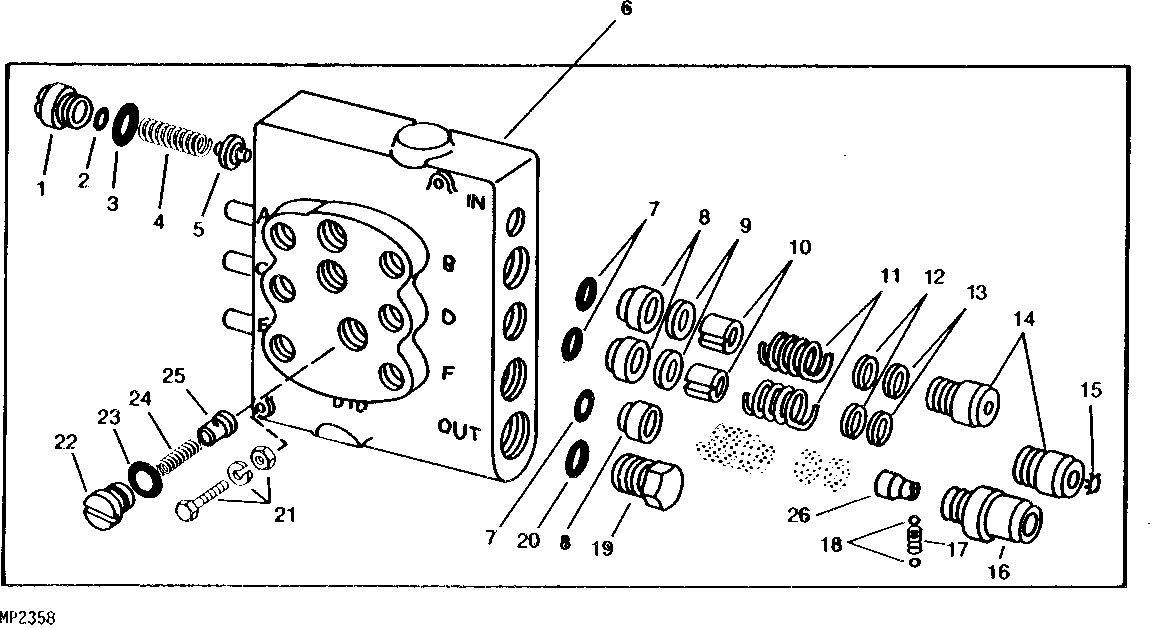

HYDRAULIC CONTROL VALVE (S.N. 95001- ) [C22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AE25156	1	PLUG	(SUB FOR E40774) (INCLUDES 32246)
2	T24871	1	SHIM	.015"
2	N111502	1	Washer	.035"
2	H31257	1	SHIM	.010"
3	32246	1	O-Ring	(A)
4	T17367	1	SPRING	-
5	E40775	1	Poppet	-
6	AM37788	1	CONTROL VALVE	-
6	AM100920	1	CONTROL VALVE	-
7	M81668	8	SEAL	(A) (B)
8	N150470	3	Bushing	-
9	M46768	1	WASHER	.046"
9	M87512	1	Washer	(B)
9	M46767	2	Washer	.020"
10	N150469	2	BUSHING	-
10	AM100539	2	Spacer	-
11	M42852	2	COMPRESSION SPRING	-
11	M87401	2	Spring	-
12	E40792	2	Washer	-
12	M87511	2	Washer	-
13	M44169	2	SNAP RING	-
13	M87403	3	Snap Ring	-
14	M82702	2	Drain Plug	-
14	AM100541	2	Cap	-
15	T13911	2	PLUG	-
16	AM38628	1	Cap	(SUB FOR AM31421)
17	E41822	1	Spring	-
18	A4742R	5	Ball	(B)
19	AE24798	1	Fitting	(INCLUDES R26448)
20	R26448	1	O-Ring	(A)
21	14H786	2	Nut	1/4"
21	24H1287	2	Washer	9/32" X 5/8" X 0.065"
21	19H1996	2	Cap Screw	1/4" X 2"
22	AN150266	3	Fitting Plug	(INCLUDES T42789)
23	T42789	3	O-Ring	(A)
24	N150467	3	Spring	-
25	N150466	3	Plunger	-
26	M87400	1	Detent	(B)
27	M87513	1	Spring	(B)
..	AM37238	1	SEAL KIT	(INCLUDES PARTS MARKED WITH (A))
..	AM100537	1	KIT	(INCLUDES PARTS MARKED WITH (B))
