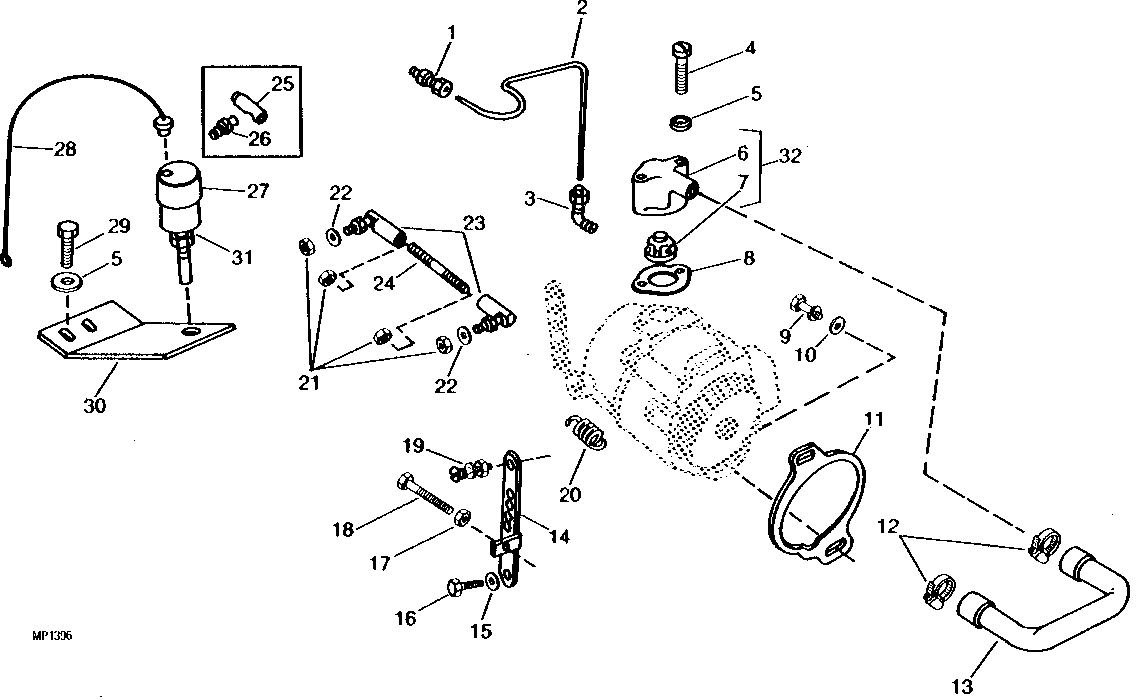

GOVERNOR LINKAGE AND BREATHER VALVE [B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM34759	1	ADAPTER	-
2	M49571	1	OIL LINE	-
3	AM39248	1	ELBOW FITTING	(SUB FOR AM34762)
3	15H558	1	Pipe Plug	1/8"
4	19H1898	2	Cap Screw	1/4" X 1-1/2", (SUB FOR M49572)
5	12H302	4	Lock Washer	1/4"
6	AM36942	1	BREATHER	(SUB FOR M49579)
7	AM36942	1	BREATHER	(SUB FOR AM34763)
7	M83765	1	DIAPHRAGM	-
8	M49580	1	GASKET	-
9	19H2117	2	Cap Screw	5/16" X 1-1/8"
9	12H303	2	Lock Washer	5/16"
10	24H1289	2	Washer	21/64" X 5/8" X 0.049"
11	M49570	1	GASKET	-
12	AR21837	2	Clamp	-
13	M47553	1	HOSE	-
13	M83673	1	HOSE	-
14	M49581	1	LEVER	THROTTLE
15	M49582	1	Washer	-
16	M49578	1	BOLT	-
17	14H778	1	Nut	0.190"
18	M49573	1	CAP SCREW	-
19	AM30167	1	SWIVEL	(SUB FOR AM34760)
20	M49577	1	EXTENSION SPRING	-
21	14H631	4	Nut	0.190"
22	12H246	2	LOCK WASHER	0.190"
23	AM33050	2	BALL JOINT	-
23	AM33050	1	BALL JOINT	-
24	M49576	1	ROD	-
25	AM33050	1	BALL JOINT	(SUB FOR M47521)
26	M81573	1	SCREW	-
27	AM35712	1	SOLENOID	-
28	-	1	Part 33	(SUB AM37239)
29	19H1227	2	Cap Screw	1/4" X 1/2"
30	M48878	1	BRACKET	-
31	M49553	1	NUT	-
32	AM36942	1	BREATHER	-

GOVERNOR LINKAGE AND BREATHER VALVE [B10]
