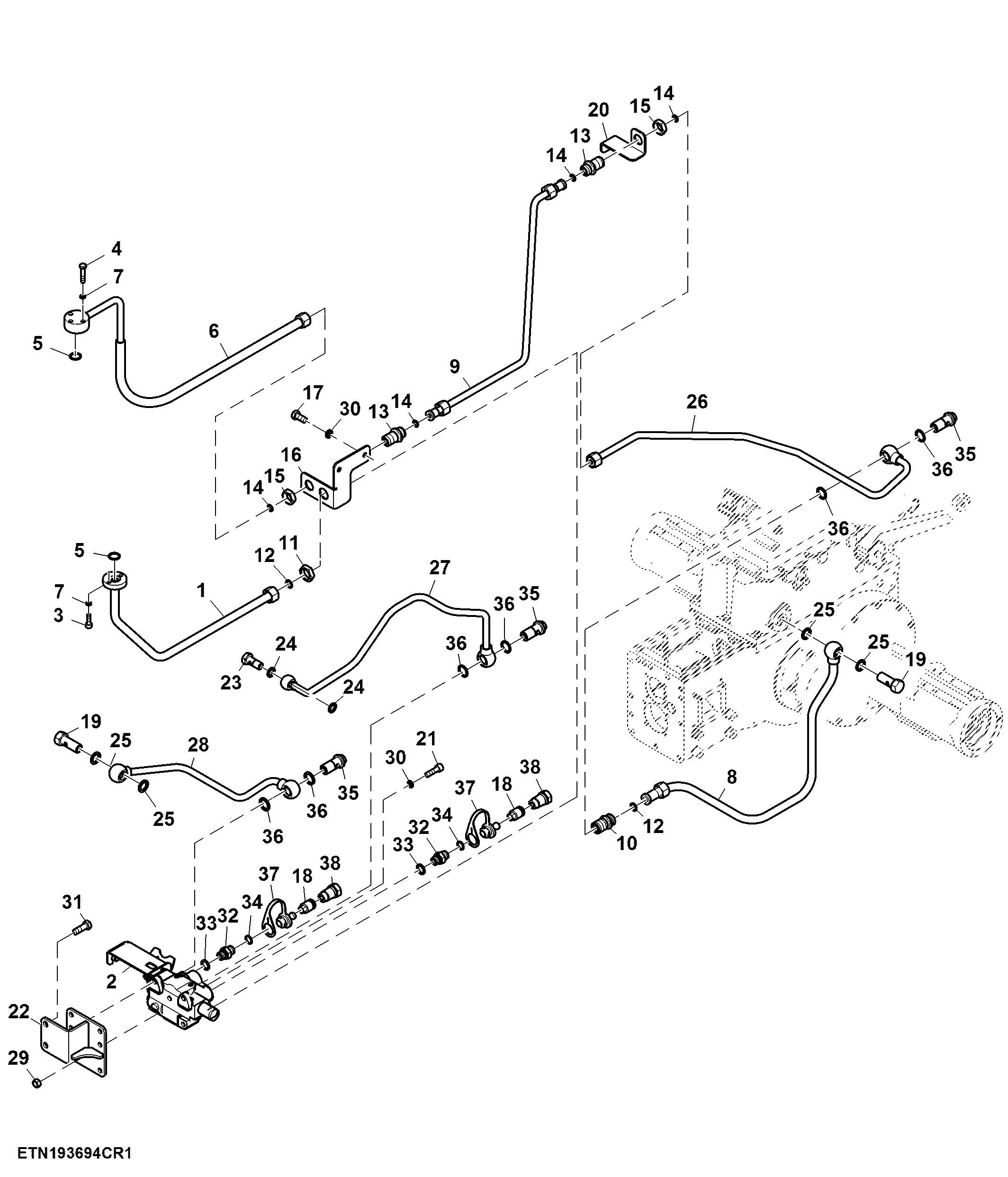

Single Selective Control Valve and Oil Lines, PowrReverser™ (618313 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ23370	1	Oil Tube	Lift Pump Inlet
2	SJ33774	1	Valve	Single Selective Control Valve
2	SJ37712	1	Valve	Single Selective Control Valve
3	SU323079	2	Screw	-
4	19M7301	3	Cap Screw	M8 X 40
5	R122750	2	O-Ring	-
6	SJ31167	1	Oil Tube	Lift Pump Outlet
6	SJ34929	1	Oil Tube	Lift Pump Outlet
7	SU318990	5	Lock Washer	-
8	SJ23372	1	Oil Tube	Rockshaft Outlet
9	SJ23373	1	Oil Tube	SCV Front Inlet
10	SU317659	1	Fitting	-
11	SU317666	1	Nut	-
12	SU317898	2	O-Ring	-
13	SU319468	2	Fitting	-
14	SU317893	4	O-Ring	-
15	SU321679	2	Nut	-
16	SU40607	1	Bracket	Inlet and Outlet Oil Pipe
17	SU318719	2	Bolt	-
18	AL174797	2	Hydr. Quick Coupler Socket	-
19	SU326137	2	Hollow Screw	-
20	SU40539	1	Bracket	SCV Inlet Oil Tube
21	SU50904	2	Bolt	-
22	SJ33434	1	Bracket	-
23	SU46756	1	Hollow Screw	-
24	SU46757	2	Sealing Washer	-
25	SU46758	4	Sealing Washer	-
26	SJ33762	1	Oil Tube	SCV Rear Inlet
27	SJ33441	1	Oil Tube	SCV Output
28	SJ33764	1	Oil Tube	SCV Return
28	SJ37907	1	Oil Tube	SCV Return
29	14M7509	2	Nut	M10
30	SU318979	4	Lock Washer	-
31	19M7744	2	Cap Screw	M12 X 35
32	SU39186	2	Fitting	-
33	SU47439	2	Sealing Washer	-
34	R26375	2	O-Ring	-
35	SU315383	3	Hollow Screw	-
36	SU47440	6	Sealing Washer	-
37	L172745	2	Dust Shield	-
38	AL81368	2	Hydr. Quick Coupler Plug	-

Single Selective Control Valve and Oil Lines, PowrReverser™ (618313 - )
