Single Selective Control Valve and Oil Lines, 8X2 Transmission (618313 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7509	2	Nut	M10
2	19M3161	2	Cap Screw	M12 X 25
3	19M7301	3	Cap Screw	M8 X 40
4	19M7744	2	Cap Screw	M12 X 35
5	24M7047	2	Washer	13 X 24 X 2.500 mm
6	AL81368	2	Hydr. Quick Coupler Plug	Hydraulic Quick Coupler, Internal Half
7	L172745	2	Dust Shield	-
8	R122750	2	O-Ring	-
9	R26375	2	O-Ring	-
10	SJ22165	1	Oil Tube	Lift Pump Inlet
11	SJ23316	1	Oil Tube	SCV Front Inlet
12	SJ326880	1	Oil Tube	Front Pump Inlet
13	SJ33434	1	Bracket	SCV
14	SJ33439	1	Oil Tube	SCV Rear Inlet
15	SJ33441	1	Oil Tube	SCV Output
15	SJ35068	1	Oil Tube	SCV Output
16	SJ33761	1	Oil Tube	SCV Return
16	SJ37906	1	Oil Tube	SCV Return
17	SJ33774	1	Valve	Single
17	SJ37712	1	Valve	Single
18	SJ34928	1	Oil Tube	Lift Pump Outlet
19	SU313618	1	Bracket	Support
20	SU315383	3	Hollow Screw	-
21	SU317659	1	Fitting	-
22	SU317666	1	Nut	-
23	T77857	4	O-Ring	-
24	SU317898	2	O-Ring	-
25	SU318979	2	Lock Washer	-
26	SU318980	2	Lock Washer	-
27	SU318990	5	Lock Washer	-
28	SU61088	2	Fitting	SUB FOR SU319468
29	SU321679	2	Nut	-
30	SU323079	2	Screw	-
31	SU326137	2	Hollow Screw	-
32	SU326886	1	Plate	Oil Tube Joint
33	SU39186	2	Fitting	-
34	SU40539	1	Bracket	SCV Inlet Oil Tube
35	SU46756	1	Hollow Screw	-
36	SU46757	2	Sealing Washer	-
37	SU46758	4	Sealing Washer	-
38	SU47439	2	Sealing Washer	-
39	SU47440	6	Sealing Washer	-
40	SU50904	2	Bolt	-

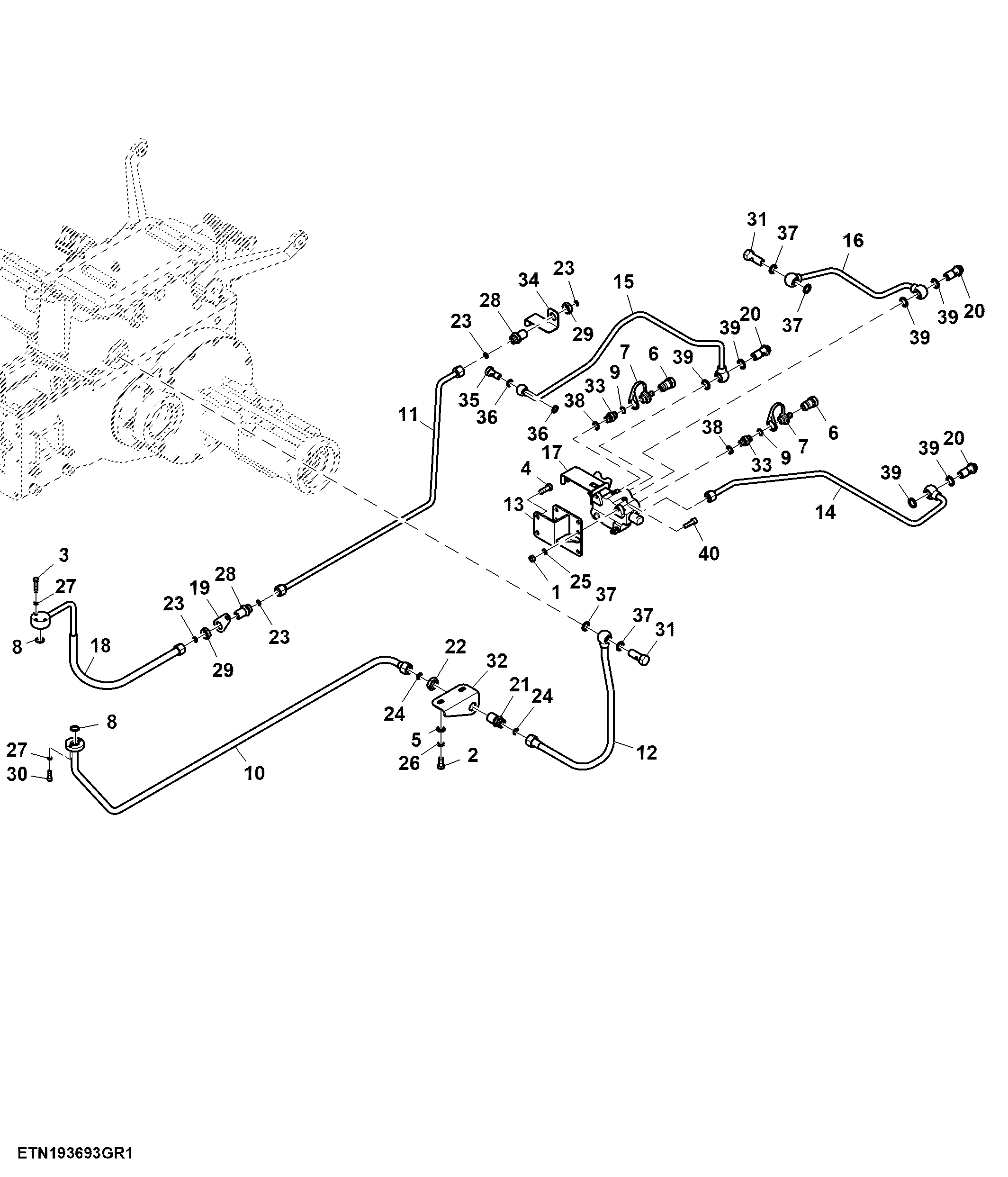

Single Selective Control Valve and Oil Lines, 8X2 Transmission (618313 - )
