Dual Selective Control Valve and Oil Lines, 8X2 Transmission (618313 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M3161	2	Cap Screw	M12 X 25
2	SJ33775	1	Valve	Dual
2	SJ37713	1	Valve	Dual
3	SU323079	2	Screw	-
4	19M7301	3	Cap Screw	M8 X 40
5	R122750	2	O-Ring	-
6	24M7047	2	Washer	13 X 24 X 2.500 mm
7	SU318990	5	Lock Washer	-
8	SJ22165	1	Oil Tube	Lift Pump Inlet
9	SJ23316	1	Oil Tube	SCV Front Inlet
10	SU317659	1	Fitting	-
11	SU317666	1	Nut	-
12	SU317898	2	O-Ring	-
13	SU61088	2	Fitting	SUB FOR SU319468
14	T77857	4	O-Ring	-
15	SU321679	2	Nut	-
16	SJ326880	1	Oil Tube	Front Pump Inlet
17	SJ33439	1	Oil Tube	SCV Rear Inlet
18	AL174797	4	Hydr. Quick Coupler Socket	-
19	SU326137	2	Hollow Screw	-
20	SU40539	1	Bracket	SCV Inlet Oil Tube
21	SU50904	2	Bolt	-
22	SJ33434	1	Bracket	SCV
23	SU46756	1	Hollow Screw	-
24	SU46757	2	Sealing Washer	-
25	SU46758	4	Sealing Washer	-
26	SJ33761	1	Oil Tube	SCV Return
26	SJ37906	1	Oil Tube	SCV Return
27	SJ33765	1	Oil Tube	Lift Pump Outlet
27	SJ35074	1	Oil Tube	Lift Pump Outlet
28	SJ34928	1	Oil Tube	Lift Pump Outlet
29	14M7509	2	Nut	M10
30	SU318979	2	Lock Washer	-
31	19M7744	2	Cap Screw	M12 X 35
32	SU39186	4	Fitting	-
33	SU47439	4	Sealing Washer	-
34	R26375	4	O-Ring	-
35	SU315383	3	Hollow Screw	-
36	SU47440	6	Sealing Washer	-
37	L172745	2	Dust Shield	-
38	AL81368	4	Hydr. Quick Coupler Plug	-
39	L172746	2	Dust Shield	-
40	SU313618	1	Bracket	Support
41	SU318980	2	Lock Washer	-
42	SU326886	1	Plate	Oil Tube Joint

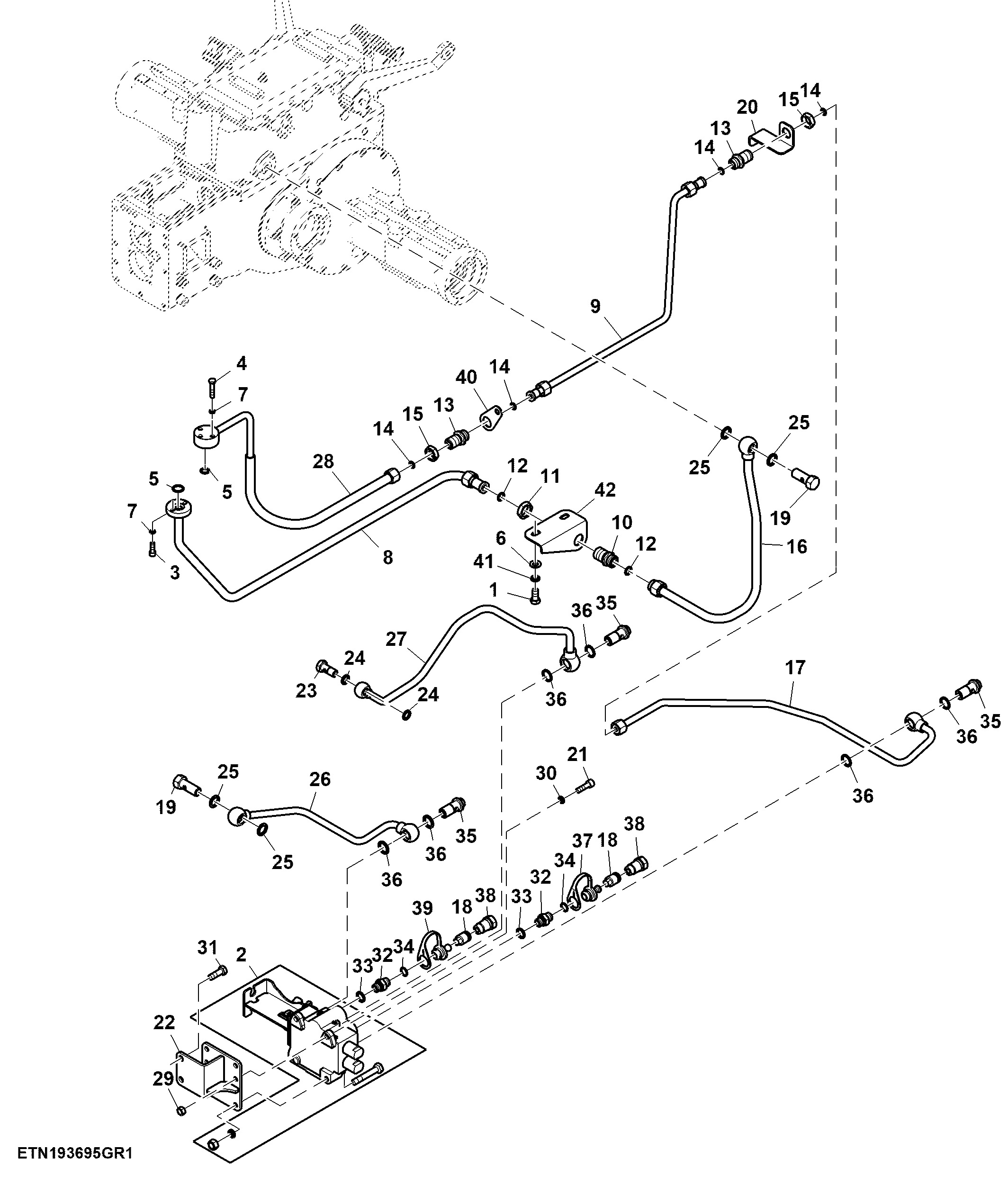

Dual Selective Control Valve and Oil Lines, 8X2 Transmission (618313 - )
