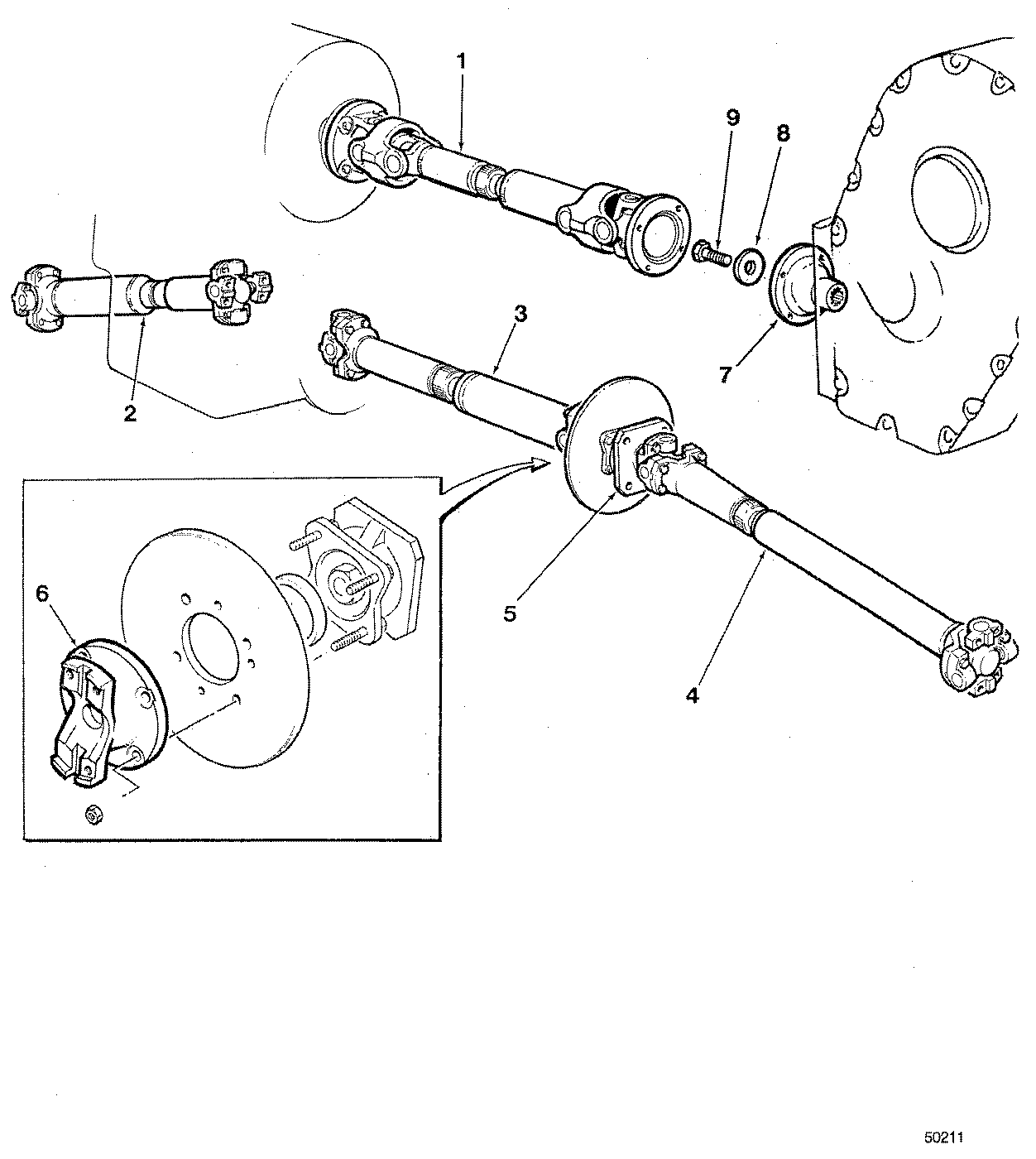

DRIVESHFT LAYOUT CABLE T40-D WINCH ( CK2398 - CI2995) 1500-056/10 [1500-056/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	811020100	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\480-T SKIDDER, LOG\480-T - 480 TO 550-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANSMISSION TO WINCH T40D ( CK2311 - ) 1511-127/10
2	811221200	1	DRIVESHAFT - 16D FROM S/N CT2633	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT FRONT AXLE TO TRANSM 16D AXLE ( CT2633 - CI2859) 1512-024/10
3	811858300	1	DRIVESHAFT - TO S/N CM4261	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK ( CT2633 - CE4000) 1512-022/10
4	811142300	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\450 SKIDDER, LOG\450 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE CABLE GEARMATIC ( CT2633 - CI2995) 1512-021/10
5	826033100	1	PILLOW BLOCK - 6C	Refer to Page: SKIDDER, LOG\480-T SKIDDER, LOG\480-T - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK\PILLOW BLOCK LOWER ( CK2311 - ) 1530-014/10
6	-------	1	O-RING	-
7	825782900	1	COMPANION FLANGE	-
8	820008100	1	WASHER*SPECIAL	-
9	810427700	1	BOLT*3/4-16UNFX1-1/4	-
-	-	1	Part 28	-
-	-	1	Part 27	-
-	826507600	1	PILLOW BLOCK - 6C W/TAPERED BEARING OPTION	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK LOWER TAPERED BEARING OPTION ( CK2419 - CE4000) 1530-023/10
-	826180300	1	PILLOW BLOCK - 7C W/TAPERED BEARING OPTION	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK LOWER TAPERED BEARING OPTION ( CK2419 - CE4000) 1530-023/10
-	826184200	1	PILLOW BLOCK - 7C	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK LOWER ( AC4317 - CE4000) 1530-019/11
-	811707500	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE GRAPPLE T40D WINCH WR10 AXLE ( CM4262 - CE4000) 1512-038/10
-	811221400	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\450 SKIDDER, LOG\450 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE GRAPPLE T40D WINCH WR7 AXLE ( CT2633 - CI2995) 1512-026/10
-	811707500	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE GRAPPLE T40D WINCH WR10 AXLE ( CM4262 - CE4000) 1512-038/10
-	811221300	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE GRAPPLE T40D WINCH 16D AXLE ( CT2633 - CI2859) 1512-025/10
-	811142200	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE GRAPPLE T40D WINCH WR7 AXLE ( CI2996 - CE4000) 1512-027/10
-	811142200	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE GRAPPLE T40D WINCH WR7 AXLE ( CI2996 - CE4000) 1512-027/10
-	811221400	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\450 SKIDDER, LOG\450 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE GRAPPLE T40D WINCH WR7 AXLE ( CT2633 - CI2995) 1512-026/10
-	811707500	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE GRAPPLE T40D WINCH WR10 AXLE ( CM4262 - CE4000) 1512-038/10
-	811707500	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE GRAPPLE T40D WINCH WR10 AXLE ( CM4262 - CE4000) 1512-038/10
-	811221300	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE GRAPPLE T40D WINCH 16D AXLE ( CT2633 - CI2859) 1512-025/10
-	811715800	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK 7C FLANGE ( CM4262 - CE4000) 1512-037/10
-	811715800	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK 7C FLANGE ( CM4262 - CE4000) 1512-037/10
-	811142500	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\450 SKIDDER, LOG\450 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT FRONT AXLE TO TRANSM WR7 ( CT2633 - CT2995) 1512-023/10
-	811142500	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\450 SKIDDER, LOG\450 - 350 TO 450-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT FRONT AXLE TO TRANSM WR7 ( CT2633 - CT2995) 1512-023/10
