Открытый узел

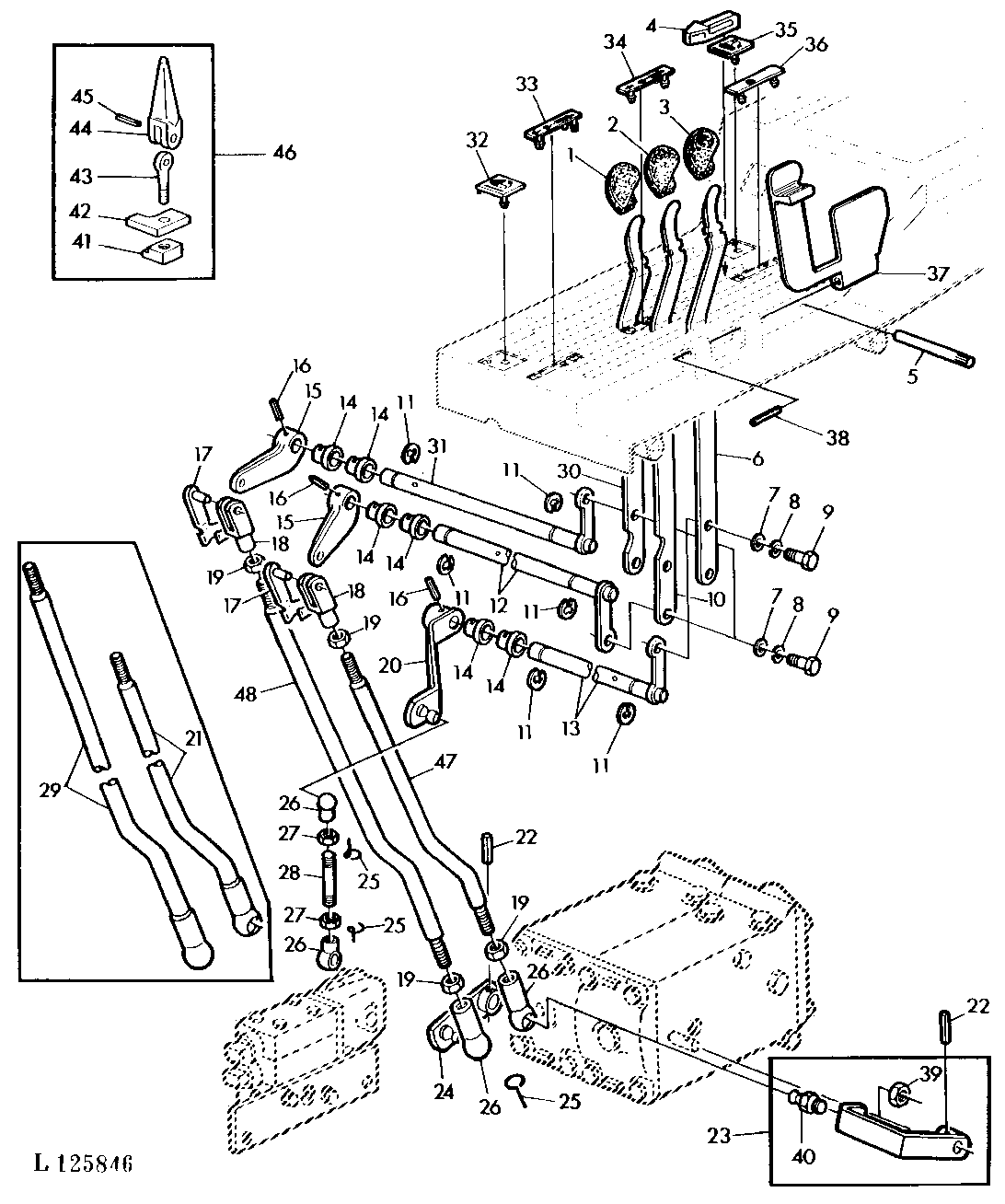

Shift Rods/SCV Control (Poppet Type)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L56932	1	Grip	-
2	L56933	1	Grip	-
3	L57635	1	Grip	(WITH 3 SELECT.CONTROL VALVES)
4	R56479	1	Stop	-
5	L38168	1	Pin Fastener	-
6	L38224	1	Lever	(WITH 3 SELECT.CONTROL VALVES)
7	24M7055	3	Washer	8.400 X 16 X 1.600 mm
8	12M7056	3	Lock Washer	8 mm
9	19H1900	3	Cap Screw	5/16" X 3/4"
10	L38223	1	Lever	-
11	40M7039	6	Snap Ring	-
12	AL38250	1	Shaft	-
13	AL38251	1	Shaft	(WITH 3 SELECT.CONTROL VALVES)
14	R42093	6	Grommet	-
15	R50012	2	Lever	-
16	L61307	3	Spring Pin	-
17	45M7065	2	Spring Locking Pin	8X32MM
18	54M4420	2	Yoke	8X32MM
19	14M7151	1	Nut	M8
20	AL59553	1	Lever	(WITH 3 SELECT.CONTROL VALVES)
21	AL36469	1	Rod	(ORDER L38526, 56M7003, 56M7004, 14M7151)
21	AL61196	1	Rod	(WITH 3 SELECT.CONTROL VALVES) (ORDER L59396, 56M7003, 56M7004, 14M7151)
22	34M7028	2	Spring Pin	4 X 22 mm
23	AL57830	1	Lever	-
24	AL41698	1	Arm	-
25	56M7004	1	Ball Joint Retainer	(WITH 3 SELECT.CONTROL VALVES)
26	56M7003	1	Ball Joint Socket	(WITH 3 SELECT.CONTROL VALVES) (ORDER W/ 56M7004)
27	14M7014	2	NUT	(WITH 3 SELECT.CONTROL VALVES) M8
28	42M7014	1	Stud	(WITH 3 SELECT.CONTROL VALVES) M8X50
29	AL36467	1	Rod	(ORDER KEYS 19, 25, 26, L38557)
30	L38222	1	Lever	-
31	AL38249	1	Shaft	-
32	L42073	1	Sign	-
33	L42072	1	Sign	-
34	L55026	1	Sign	-
35	L42074	1	Sign	-
36	L55028	1	Sign	-
37	L61319	1	Stop	-
38	34M7029	1	Spring Pin	4 X 30 mm
39	14M7327	1	Lock Nut	M8
40	55M7005	1	Ball Stud	-
41	R53476	1	Nut	(WITH HYD.MOTOR DRIVE)
42	R53475	1	Stop	(WITH HYD.MOTOR DRIVE)
43	R42641	1	Eyebolt	(WITH HYD.MOTOR DRIVE)
44	R34537	1	Cam	(WITH HYD.MOTOR DRIVE)
45	34H387	1	Spring Pin	(WITH HYD.MOTOR DRIVE) 3/16" X 3/4"
46	AR60331	1	Stop	(WITH HYD.MOTOR DRIVE) (KIT NO LONGER AVAILABLE, ORDER PARTS SEPARATELY)
47	L38526	1	Lever	-
47	L59396	1	Lever	(WITH 3 SELECT.CONTROL VALVES)
48	L38557	1	Lever	-

Shift Rods/SCV Control (Poppet Type)

Нет текстового описания
