OIL LINES/SELECTIVE CONTROL VALVES (SPOOL TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26906	1	O-Ring	-
2	R27270	1	Fitting	-
3	AL55029	1	Oil Line	NLA
4	19H1732	2	Cap Screw	3/8" X 1-1/4"
5	AL57617	1	Retainer	-
6	51M4241	8	Sealing Ring	18 X 24MM
7	38M7007	4	Hollow Screw	-
8	19M7162	2	Cap Screw	M8 X 16
9	AL56483	1	Hose	-
10	AL66231	1	Filter Head	(SUB FOR AL56470)
11	AL77061	1	Oil Filter	LGTH= 151.6MM, (ORDER W/ L77623)
11	AL56469	1	Filter Element	LGTH= 178.5MM
11	RE34958	1	Oil Filter	LGTH= 240MM, (ORDER W/ L77623)
12	AL59559	1	Hose Fitting	-
13	AL64588	2	Clamp	(SUB FOR AR21837)
14	-	1	Part 16	LGTH= 62MM, (MF L65830)
15	51M4238	2	Sealing Ring	-
16	38M5991	1	Hollow Screw	-
17	AL57595	1	Oil Line	-
18	L41383	1	Ring	-
19	L41898	1	Fitting	-
20	AL66901	1	Hydraulic Hose	-
21	AL37133	1	Elbow Fitting	-
22	L38679	1	Fitting	-
23	R26375	1	O-Ring	-
24	L59014	1	Compression Spring	-
25	AL41290	1	Elbow Fitting	-
26	AL55495	1	Hydraulic Hose	-
27	L77623	1	Adapter Fitting	(FOR AL77061, RE34958)
..	L65830	1	Hose	LGTH= 6000MM, (SUB FORUN4614)

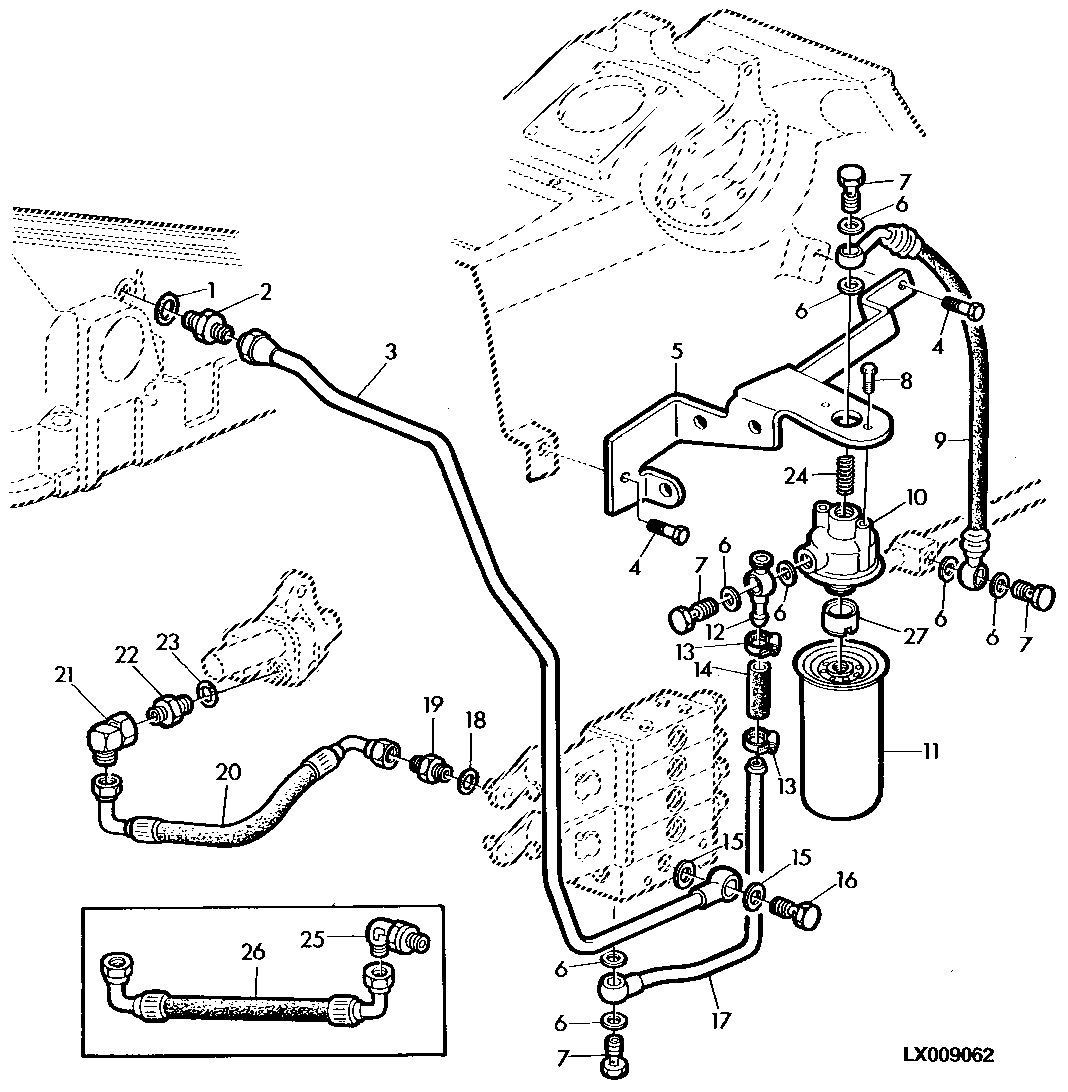

OIL LINES/SELECTIVE CONTROL VALVES (SPOOL TYPE)

Нет текстового описания
