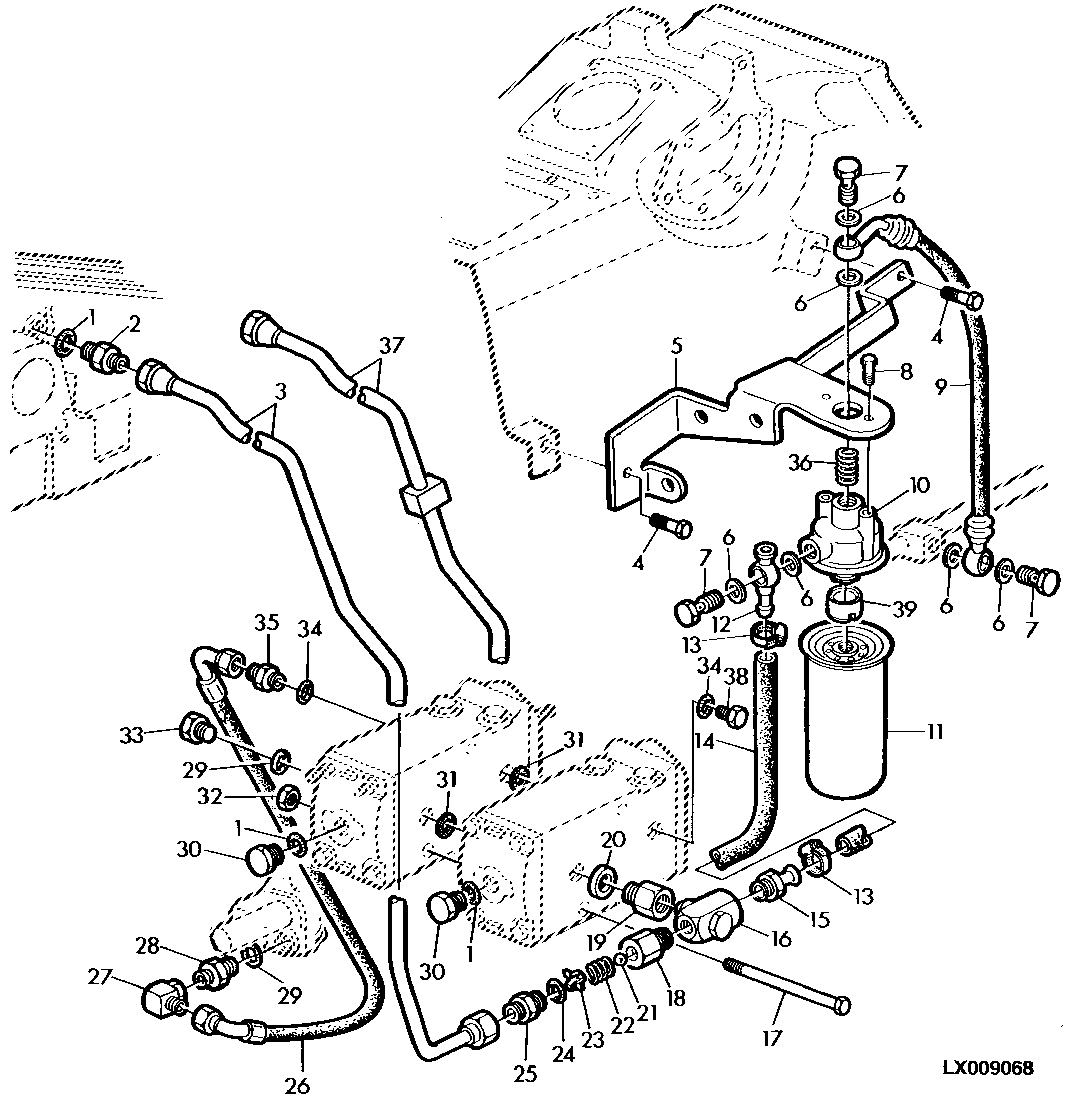

OIL LINES/SELECTIVE CONTROL VALVE (POPPET TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26906	3	O-Ring	-
2	R27270	1	Fitting	-
3	AL67930	1	Oil Line	(With One Select.Control Valve)
3	AL57994	1	Oil Line	-
4	19H1732	2	Cap Screw	3/8" X 1-1/4"
5	AL57617	1	Retainer	-
6	51M4241	6	Sealing Ring	18 X 24MM
7	38M7007	3	Hollow Screw	-
8	19M7162	2	Cap Screw	M8 X 16
9	AL56483	1	Hose	-
10	AL66231	1	Filter Head	-
11	AL56469	1	Filter Element	LGTH= 178.5MM
11	RE34958	1	Oil Filter	LGTH= 240MM, (ORDER W/ L77623)
11	AL77061	1	Oil Filter	LGTH= 151.6MM, (ORDER W/ L77623)
12	AL59559	1	Hose Fitting	-
13	AL64588	2	Clamp	(SUB FOR AR21837)
14	L57075	1	Hose	-
15	L56883	1	Hose Fitting	-
16	AL57824	1	Tee Fitting	-
17	08H4451	3	Cap Screw	3/8" X 6-1/2"
18	AL58037	1	Adapter Fitting	-
19	L56170	1	Adapter Fitting	-
20	AR26697	1	Sealing Washer	-
21	D2361R	1	Ball	-
22	L56426	1	Compression Spring	-
23	L56451	1	Retainer	-
24	L41383	1	Ring	-
25	L56178	1	Fitting	-
26	AL55494	1	Hydraulic Hose	-
27	AL37133	1	Elbow Fitting	-
28	L38679	1	Fitting	-
29	R26375	2	O-Ring	-
30	R27474	2	Drain Plug	-
31	R26149	2	PACKING	-
32	14H1076	3	Nut	3/8"
33	T22867	1	Drain Plug	-
34	R26448	2	O-Ring	-
35	L37858	1	Fitting	-
36	L59014	1	Compression Spring	-
37	AL61149	1	Paper Parts Catalog	(WITH 3 SELECT.CONTROL VALVES)
38	R27218	1	Fitting Plug	-
39	L77623	1	Adapter Fitting	(FOR AL77061, RE34958)

OIL LINES/SELECTIVE CONTROL VALVE (POPPET TYPE)
