Oil Lines For Rear Quick-Disconnect Couplers (SCV Control Spool Type)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL55033	1	Hydraulic Hose	-
1	AL55033	1	Hydraulic Hose	(WITH 2 QUICK-DISCONNECT COUPLERS)
2	AL55032	1	Hydraulic Hose	-
3	19M7603	1	Screw	(WITH 2 QUICK-DISCONNECT COUPLERS) M6 X 20
4	19M8265	2	Screw	M6 X 50
5	L39905	1	Clamp	-
6	15M7054	1	Tube Nut	-
7	Z42782	1	Plug	-
8	AL41596	1	Tee Fitting	-
9	19H3458	2	Cap Screw	9/16" X 8-3/4"
10	AL35919	1	Holder	-
11	L33629	2	Spacer	-
12	AL56485	1	Strap	-
13	19M7166	1	Cap Screw	M10 X 20
14	14M7272	1	Nut	M6
15	R26375	1	O-Ring	-
16	AL55032	1	Hydraulic Hose	(WITH SINGLE-ACTING SELECTIVE CONTROL VALVES)
17	AL55033	1	Hydraulic Hose	(WITH SINGLE-ACTING SELECTIVE CONTROL VALVES)
18	AL68330	1	Hydraulic Hose	-
19	L38679	1	Fitting	-
20	AL68330	1	Hydraulic Hose	-

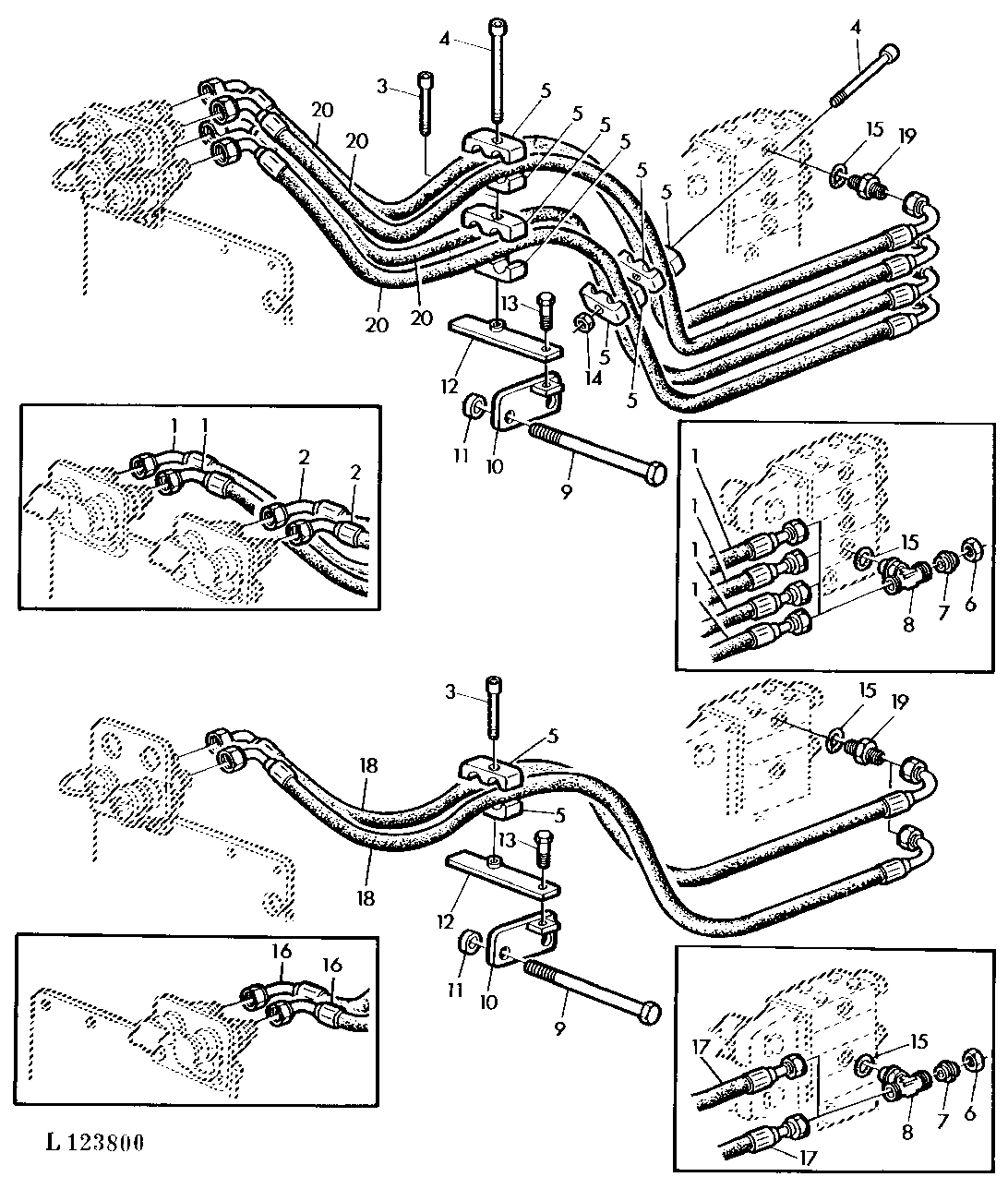

Oil Lines For Rear Quick-Disconnect Couplers (SCV Control Spool Type)

Нет текстового описания
