Открытый узел

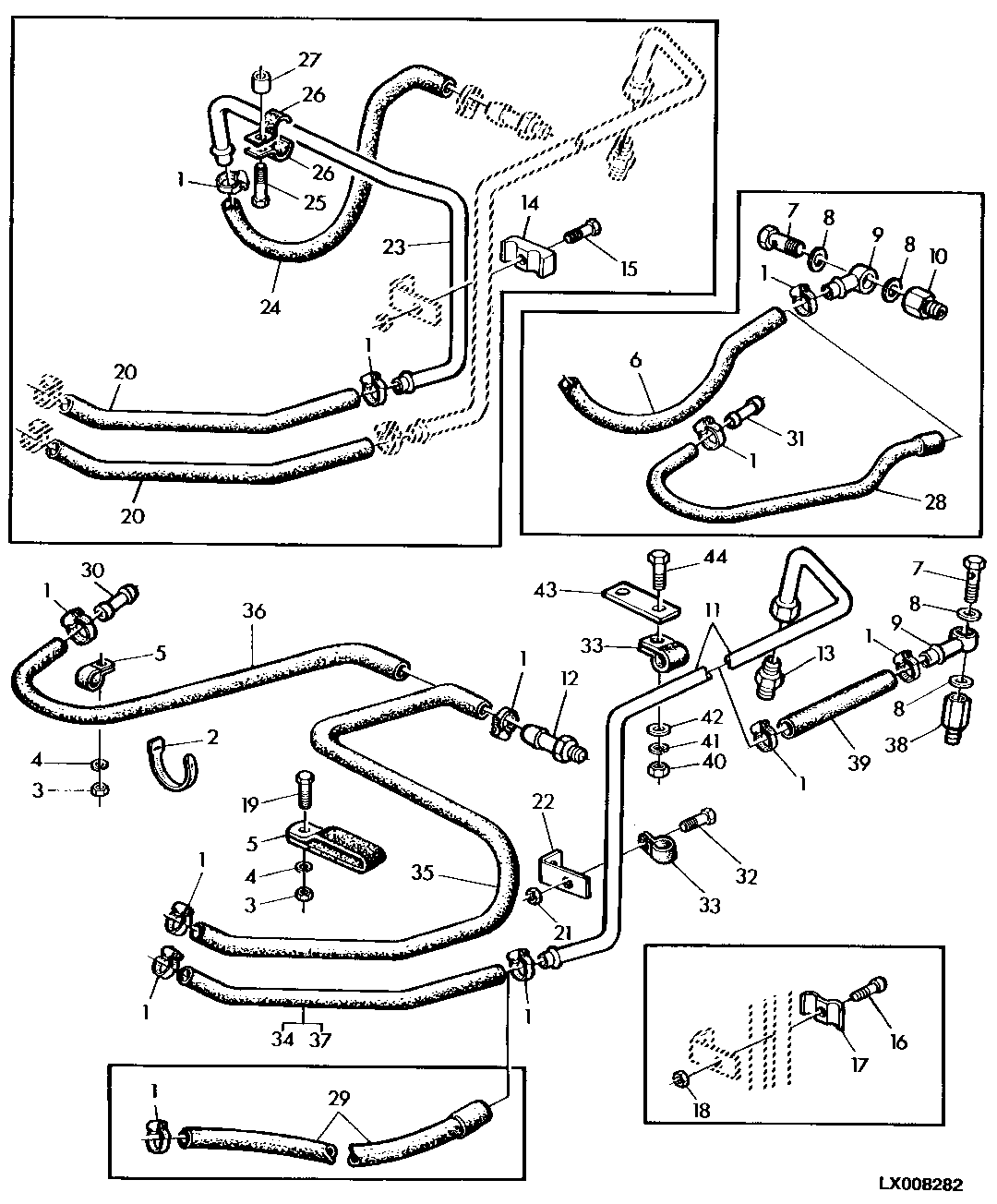

HEATER LINES, FRONT (WITH SG2 CAB)

HEATER LINES, FRONT (WITH SG2 CAB)

HEATER LINES, FRONT (WITH SG2 CAB)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

HEATER LINES, FRONT (WITH SG2 CAB)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL64588	1	Clamp	(SUB FOR AL55852, AR21837)
2	R44302	1	Tie Band	-
3	14H812	2	NUT	3/8"
4	12H304	2	Lock Washer	3/8"
5	R50454	1	Clamp	-
6	-	1	Part 6	LGTH= 430MM, (MF L65830)
7	L63537	1	Hollow Screw	(SUB FOR T32204)
8	51M4238	2	Sealing Ring	-
9	AL39082	1	Hose Fitting	-
10	L40878	1	Adapter Fitting	-
11	AL39081	1	Line	-
11	AL64282	1	Line	-
12	T29388	1	Union Fitting	-
13	N112193	1	Adapter Fitting	-
13	L59894	1	Fitting	-
14	L56218	1	Clamp	-
15	19M7298	1	Cap Screw	M8 X 35
16	19M7768	1	Screw	M6 X 16
17	AH83846	1	Clamp	(ORDER L56218)
18	14M7272	1	Nut	M6
19	19H1731	1	Cap Screw	3/8" X 1"
20	-	2	Part 22	LGTH= 2000MM, (MF L65830)
21	14M7327	1	Lock Nut	M8
22	L40875	1	Angle	-
23	L40874	1	Line	-
24	-	1	Part 26	LGTH= 460MM, (MF L63652)
25	19M7160	1	Cap Screw	M6 X 30
26	L37521	2	Clamp	-
27	28H862	1	Spacer	0.423" X 0.675" X 7/16"
28	-	1	Part 30	(WITH LOW PROFILE CAB) (MF L65830)
29	-	1	Part 31	(WITH LOW PROFILE CAB) (MF L65830)
30	L62676	1	Tube	(WITH LOW PROFILE CAB)
31	L56740	1	Tube	(WITH LOW PROFILE CAB)
32	19M7139	1	Cap Screw	M8 X 20
33	R46414	1	Clamp	-
34	-	1	Part 36	LGTH= 2000MM, (MF L63652)
35	-	1	Part 37	LGTH= 2600MM, (MF L63652)
36	-	1	Part 38	(WITH LOW PROFILE CAB) (MF L62934)
37	-	1	Part 39	(WITH LOW PROFILE CAB) (MF L62934)
38	L62121	1	Adapter Fitting	(WITH AIR TRAILER BRAKE SYSTEM)
39	L64404	1	Hose	(WITH AIR TRAILER BRAKE SYSTEM)
40	14M7273	1	Nut	(WITH AIR TRAILER BRAKE SYSTEM) M8
41	12M7056	1	Lock Washer	(WITH AIR TRAILER BRAKE SYSTEM) 8 mm
42	24M7055	1	Washer	(WITH AIR TRAILER BRAKE SYSTEM) 8.400 X 16 X 1.600 mm
43	L64592	1	Retainer	(WITH AIR TRAILER BRAKE SYSTEM)
44	19M7163	1	Cap Screw	(WITH AIR TRAILER BRAKE SYSTEM) M8 X 25
..	L62934	1	Hose	(WITH LOW PROFILE CAB) KIT
..	L65830	1	Hose	LGTH= 6000MM, (SUB FOR UN4614)
..	L63652	1	Hose	LGTH= 4600MM, (SUB FOR L62932)
