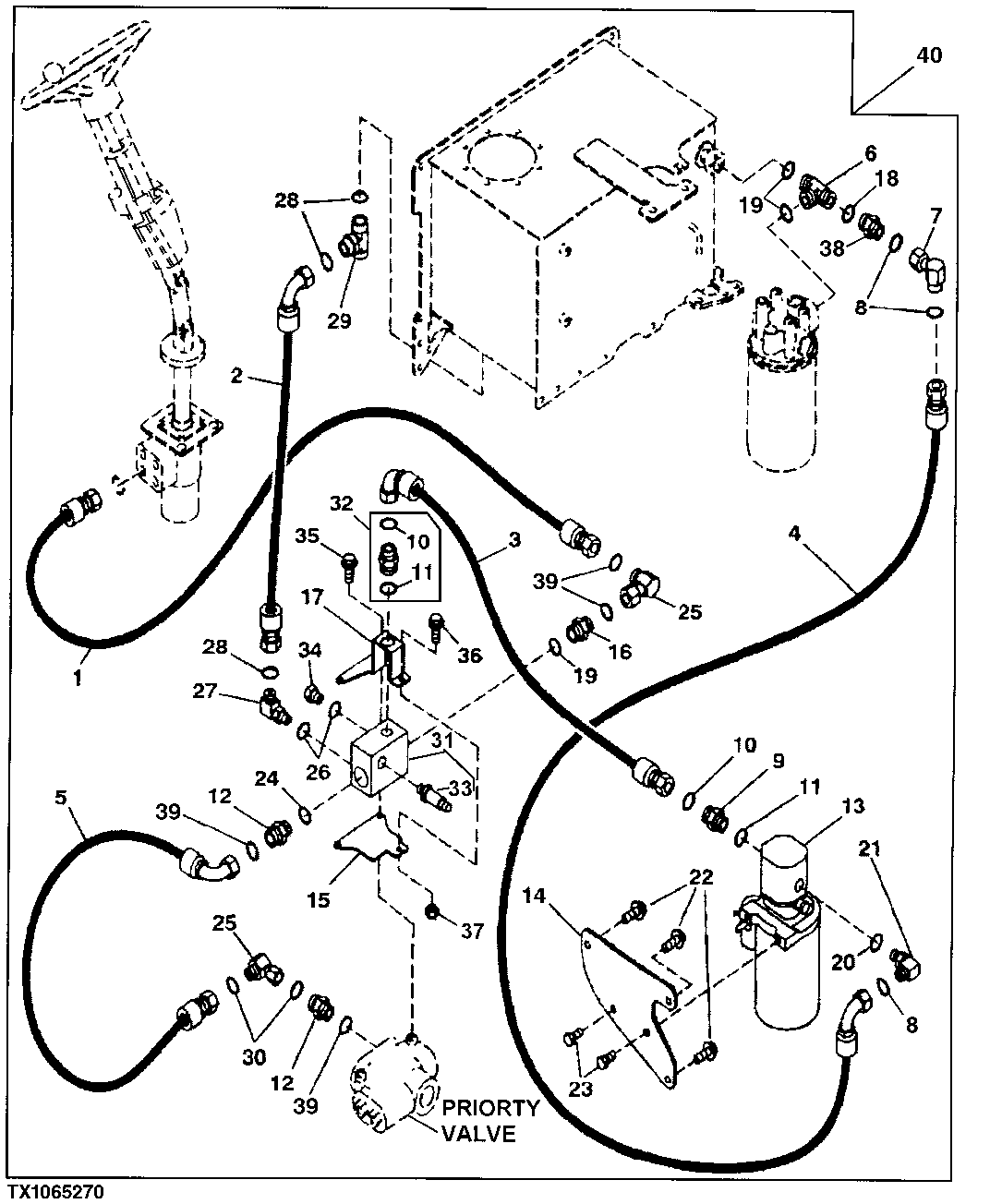

SECONDARY STEERING KIT (DD) (SN -592554)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT195493	1	Hydraulic Hose	-
2	AT182993	1	Hydraulic Hose	-
3	AT182991	1	Hydraulic Hose	-
4	AT182990	1	Hydraulic Hose	-
5	AT183832	1	Hydraulic Hose	-
6	38H1098	1	Elbow Fitting	-
6	38H1042	1	Tee Fitting	-
7	38H1098	2	Elbow Fitting	-
8	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
9	38H1161	1	Adapter Fitting	-
10	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
11	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
12	38H1175	1	Adapter Fitting	-
13	AT305428	1	Pump	(SUB FOR AT166083 AND AT186662)
14	T163096	1	Plate	PUMP MOUNT
15	T163655	1	Bracket	-
16	38H1176	1	Adapter Fitting	-
17	T163583	1	Strap	-
18	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
19	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
20	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
21	38H1014	1	Elbow Fitting	-
22	19M7785	1	Screw	M10 X 25
23	19H1648	2	Cap Screw	3/8" X 3/4"
24	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
25	38H1095	2	Elbow Fitting	-
26	R28782	2	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
27	38H1003	1	Elbow Fitting	-
28	T77814	3	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
29	38H1029	1	Tee Fitting	-
30	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
31	AT117264	1	Switch	SECONDARY STEERING
31	AT116373	1	Check Valve	(NOT ILLUSTRATED)
32	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
32	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
32	AT141527	1	Check Valve	(INCLUDES R26375 AND T77857)
33	AT117265	1	Pressure Switch	-
34	AT223648	1	Fitting	-
35	19M7811	2	Screw	M10 X 90
36	19M7785	1	Screw	M10 X 25
37	14M7296	1	Flange Nut	M10
38	38H1483	1	Reducer	-
39	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
40	AT195502	1	Mounting Parts	(SUB FOR AT182970)SECONDARY STEERING KIT (ALSO INCLUDES, SECONDARY STEERING PUMP, WIRING HARNESS, MOUNTING BRACKET, STEERING CONTROLLER, SAFETY LABEL, FUSE AND MICS. PARTS) (WHOLEGOODS) (FOR SKIDDERS WITH TRANSMISSION COLD WEATHER DISCONNECT, ALSO ORDER AT195479 HARNESS MODIFICATION KIT)
40	AT197700	1	Kit	SECONDARY STEERING KIT
