ROPS, CAB AND CANOPY MOUNT, BATTERY COVER AND ACCESS COVERS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT193509	1	ROPS	-
1	AT192967	1	ROPS	-
1	AT306545	1	Cab Frame	NLA; SUB FOR AT197679
2	-	1	Part 4	MAKE FROM T58056, CTL 38mm (1.5 in)
3	T145788	1	Plug	HOLE IN DASH PANEL ON RH OF STRG COLUMN
4	28H3449	2	Bushing	0.546" X 0.840" X 1/2"
5	19M8011	2	Cap Screw	M12 X 30
6	24M7226	2	Washer	13 X 35 X 5 mm
7	19M7774	1	Screw	M6 X 12
8	T112447	24	Washer	26.340 X 76.200 X 1.600 mm (1.037" X 3" X 1/16")
9	19M7785	1	Screw	M10 X 25
10	T215619	1	Plate	SUB FOR T186565
11	08H4840	4	Bolt	1" X 6-1/4"
12	24M7294	8	Washer	26 X 39 X 4 mm
13	T118458	8	Isolator	-
14	T34950	2	Nut	25.400 mm (1")
14	K40018	4	Lock Nut	25.400 mm (1")
15	14M7296	4	Flange Nut	M10
16	T131168	2	Retainer	CAB ONLY
17	R55326	8	Rivet	CAB ONLY
18	T164357	1	Door	ALSO ORDER T131067, (2) 14M7265 AND (2) 21M7271
18	T131067	1	Latch	-
18	14M7265	2	Lock Nut	M5
18	21M7271	2	Screw	M5 X 16
19	19M7784	1	Screw	M10 X 20
20	T205569	1	Panel	CI VALVE--RIGHT REAR
20	T205569	1	Panel	CI VALVE--RIGHT REAR
21	AT192912	1	Panel	CI VALVE HOSES--BOTTOM RIGHT REAR
21	AT307186	1	Panel	CI VALVE HOSES--BOTTOM RIGHT REAR
22	24M7138	2	Washer	5.300 X 15 X 1 mm
23	AT215055	2	Pin Fastener	-
24	-	1	Part 32	MAKE FROM T316499, CTL
25	-	1	Part 33	MAKE FROM T166692, CTL
26	19M7786	2	Screw	M10 X 30, SUB FOR AT220953, THIS APPLICATION
27	14M7274	1	Nut	M10
28	AT193169	1	Cover	HVAC SERVICE OUTER
30	T131067	1	Latch	-
32	T191249	1	Plate	GUARD (LEFT), SUB FOR T161113
33	H34597	1	Plug	BACK PANEL TRANSMISSION DISCONNECT AND DASH HAND THROTTLE HOLE
33	T206106	3	Label	SUB FOR R32239
33	R44720	4	Plug	LIGHT WIRING HARNESS HOLES
33	H84660	2	PLUG	BACK PANEL OF BATTERY BOX
34	19M7784	4	Screw	M10 X 20
35	24H1660	1	Washer	57/64" X 1-3/8" X 0.060"
36	T78716	1	Nut	-
37	38H1416	1	Fitting	-
38	AT183612	1	Pressure Relief Valve	-
39	T77857	1	O-Ring	-
40	38H1416	1	Fitting	-
41	AT151040	1	Hinge	-
42	03M7191	2	Bolt	M10 X 25
43	24M7296	4	Washer	10.500 X 30 X 2.500 mm
44	T60920	10	Washer	-
45	24H1307	8	Washer	13/32" X 1" X 1/16"
46	14M7265	2	Lock Nut	M5
47	21M7271	2	Screw	M5 X 16
48	AT322876	1	Panel	LOWER REAR LEFT ACCESS, SUB FOR AT192911
49	19M7784	4	Screw	M10 X 20
50	T60920	2	Washer	-
51	T191332	2	Label	ROOF SILL LABEL L.H. SIDE AND R.H.SIDE
52	AT190780	1	Holder	BEVERAGE CUP HOLDER
53	19M7788	1	Screw	M12 X 25
54	24M7180	1	Washer	13 X 37 X 3 mm
55	24M7044	4	Washer	13 X 20 X 2 mm

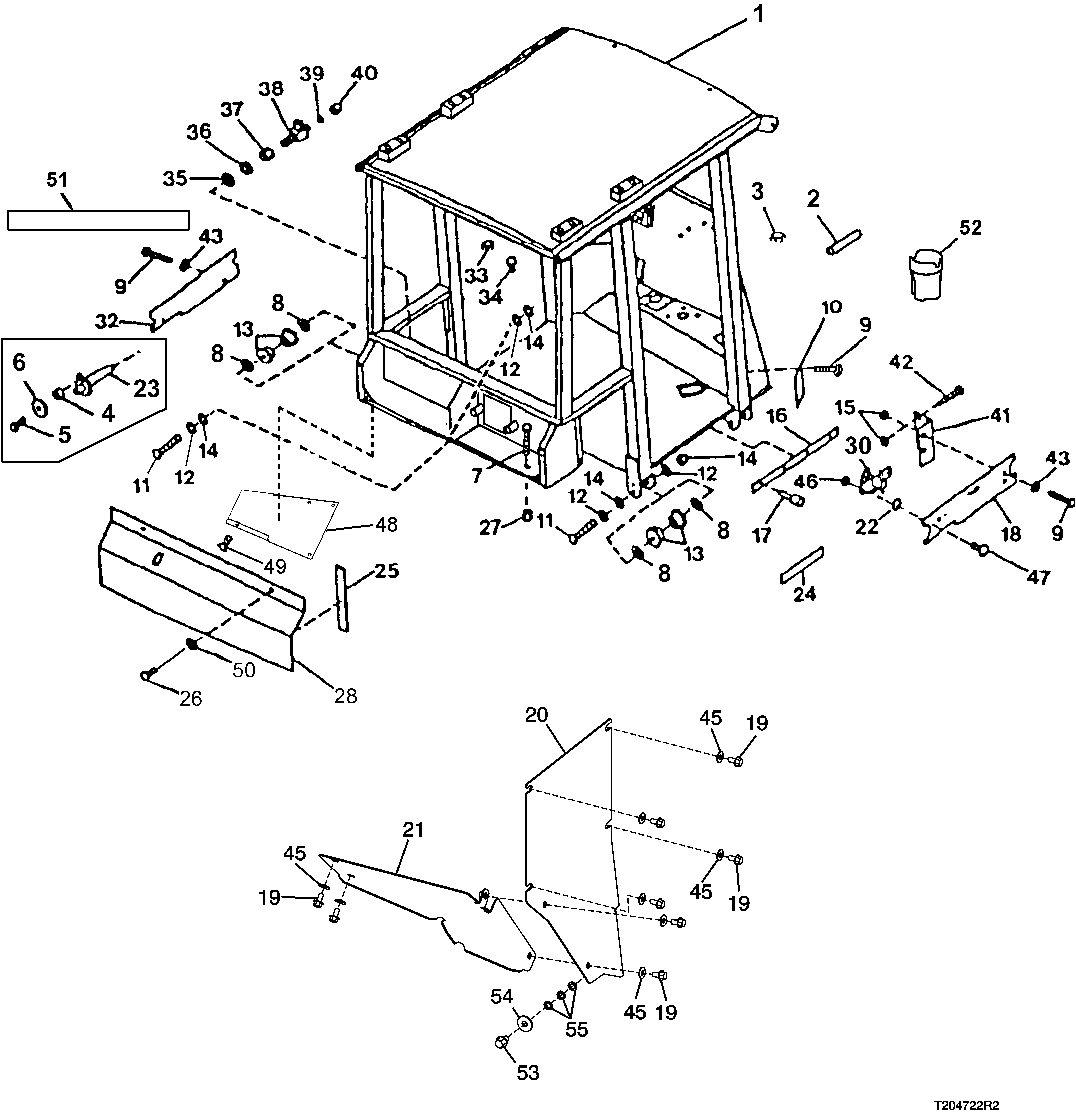

ROPS, CAB AND CANOPY MOUNT, BATTERY COVER AND ACCESS COVERS
