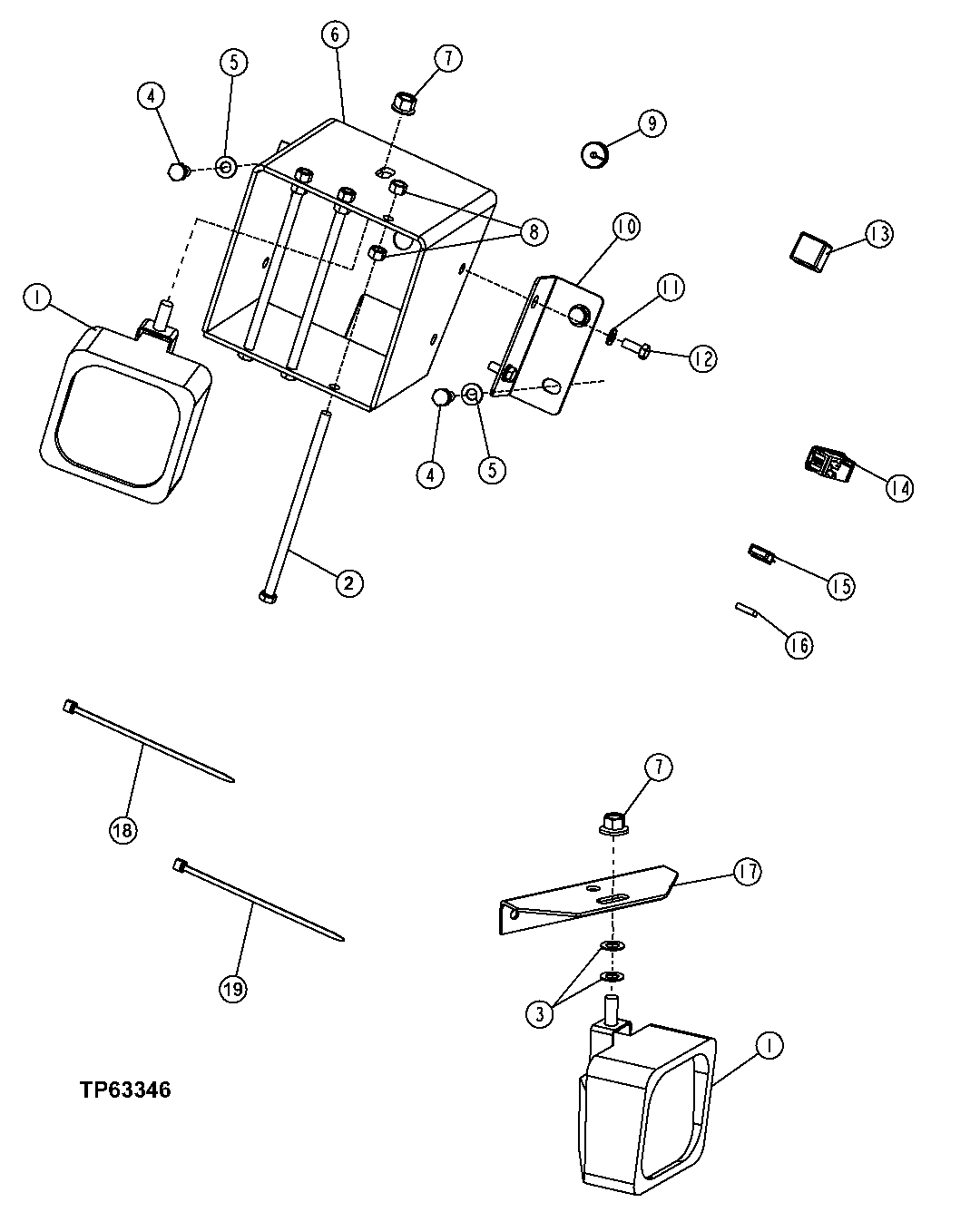

FRONT AND REAR WORKLIGHTS WITH MOUNTINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT328320	2	Floodlamp	(LOAD CENTER), (SUB FOR AT188781)
2	19H3394	3	Cap Screw	3/8" X 8", (SUB FOR T185537)
3	24M7240	2	Washer	13 X 25 X 3 mm
4	19M7938	3	Cap Screw	M10 X 20
5	24M7239	3	Washer	10.700 X 21 X 2.500 mm
6	AT187854	1	Support	(RIGHT REAR HEADLIGHT)
6	AT187853	1	Support	(LEFT REAR HEADLIGHT) (NOT ILLUSTRATED)
7	14M7299	2	Flange Nut	M12
8	14H1076	6	Nut	3/8", (SUB FOR 14H812)
9	T74952	3	Grommet	-
10	T167222	1	Angle	-
11	24M7239	2	Washer	10.700 X 21 X 2.500 mm
12	19M7938	2	Cap Screw	M10 X 20
13	AT168878	2	Relay	(12-VOLT, WITH DIODE)
14	AT185370	1	Rotary Switch	(ROCKER) (3 TERMINALS)
14	AT188682	1	Rotary Switch	(ROCKER) (4 TERMINALS)
15	T108357	2	Circuit Breaker	-
16	57M7125	1	Fuse	-
17	T185142	1	Angle	(SUB FOR T131135)
18	H77698	1	Tie Band	(NO LONGER REQUIRED)
19	R44302	1	Tie Band	(NO LONGER REQUIRED)

FRONT AND REAR WORKLIGHTS WITH MOUNTINGS
