Открытый узел

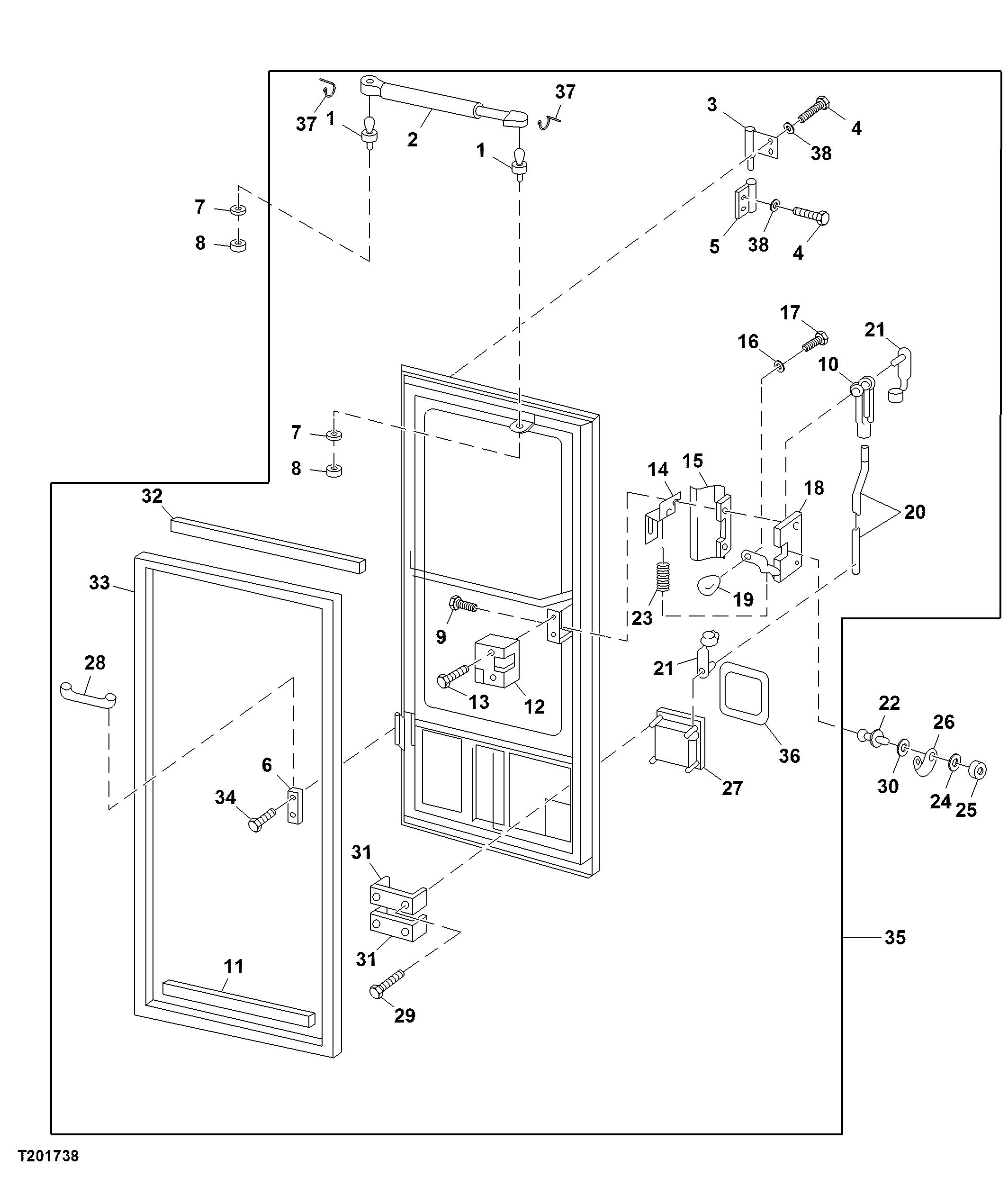

Cab and Canopy Door (Right and Left Side)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T142651	2	Ball Stud	-
2	AT192449	1	Cylinder	SUB FOR AT180176
3	AT189415	2	Hinge	UPPER - RIGHT AND LEFT
4	19M7938	4	Cap Screw	M10 X 20
5	AT322573	2	Hinge	LOWER - RIGHT AND LEFT, SUB FOR AT189414
6	T184137	1	Strap	-
7	12M7065	2	Lock Washer	8 mm
8	14H785	2	Nut	5/16"
9	T123751	4	Cap Screw	SUB FOR APPL U43002
10	T150163	1	Yoke	-
11	-	1	Part 11	Lower Door, MF AT66778, CTL 552 mm (1.81 ft)
12	T149189	1	Cover	LEFT SIDE
12	T149188	1	Cover	RIGHT SIDE
13	19M7774	2	Screw	M6 X 12
14	T149220	1	Bracket	RIGHT
14	T150148	1	Bracket	LEFT
15	T149191	1	Plate	-
16	12H304	1	Lock Washer	3/8"
17	19H1894	1	Cap Screw	3/8" X 3/4"
18	AT165224	1	Latch	RIGHT SIDE
18	AT165225	1	Latch	LEFT SIDE
19	M80721	1	Knob	-
20	T149187	1	Rod	LEFT SIDE
20	T166626	1	Rod	RIGHT SIDE
21	T122370	2	Spring Locking Pin	SUB FOR T131235
22	AR91896	1	Striker	-
23	T150146	1	Extension Spring	-
24	24M7240	1	Washer	13 X 25 X 3 mm
25	K40006	1	Lock Nut	11.125 mm (7/16")
26	T135583	1	Guard	-
27	AT192766	1	Lock	RH, TimberJack, ALSO ORDER T186245; USE WITH AT192705
27	AT446603	1	Lock	RH, ALSO ORDER T186245; USE WITH AT195302; SUB FOR AT165226
27	AT192767	1	Lock	LH, TimberJack, ALSO ORDER T186245; USE WITH AT192705
27	AT446604	1	Lock	LH, ALSO ORDER T186245; USE WITH AT195302; SUB FOR AT165227
28	T150172	1	Strap	-
29	T124407	4	Screw	4.826 X 15.875 mm (0.190" X 5/8")
30	24H1226	1	Washer	1/2" X 1-1/4" X 0.083"
31	T183606	2	Bracket	-
32	-	1	Part 39	MF T316499, CTL 15240 mm (50 ft)
33	T131080	1	Seal	-
34	19M7865	2	Screw	M8 X 16
35	AT303924	1	Door	Right Side, TimberJack, Green, SUB FOR AT193038
35	AT303925	1	Door	Left Side, TimberJack, Green, SUB FOR AT193039
36	T186245	1	Gasket	-
37	56M7007	2	Ball Joint Retainer	-
38	24M7239	4	Washer	10.700 X 21 X 2.500 mm

Cab and Canopy Door (Right and Left Side)

Нет текстового описания
