Открытый узел

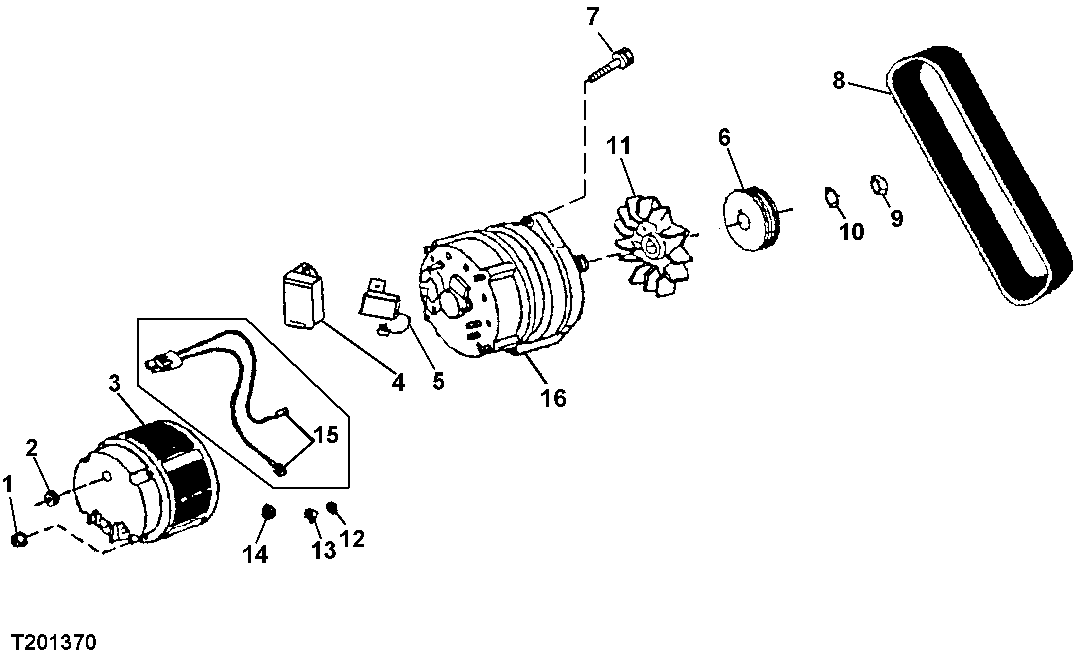

ALTERNATOR,VOLTAGE REGULATOR AND ALTERNATOR BELT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7375	4	Flange Nut	M5
2	R27180	1	Grommet	-
3	AH138291	1	Screen	(SUB FOR AT207952)
4	H144094	1	Voltage Regulator	-
5	H144095	1	Capacitor	-
6	R501486	1	Pulley	-
7	19M7868	1	Screw	M8 X 30
8	T428692	1	V-Belt	(TO SELECT PROPER FAN BELT REFER TO DTAC SOLUTION <service-part>55965.</service-part >) 1665 X 28 mm (65.551" X 1.102"), (WITHOUT A/C), SUB FOR T184594
8	R500377	1	V-Belt	(TO SELECT PROPER FAN BELT REFER TO DTAC SOLUTION <service-part>55965.</service-part >) 1615 X 28.480 mm (63.583" X 1.121"), (WITHOUT A/C)
8	T428836	1	V-Belt	(TO SELECT PROPER FAN BELT REFER TO DTAC SOLUTION <service-part>55965.</service-part >) 2355 X 28 mm (92.717" X 1.102"), (WITH A/C), (SUB FOR R500380)
8	T428713	1	V-Belt	(TO SELECT PROPER FAN BELT REFER TO DTAC SOLUTION <service-part>55965.</service-part >) 2800 X 28 mm (110.236" X 1.102"), LGTH = 2800 mm, (WITH A/C) (USED WITH NYLON ENGINE COOLING FAN), (SUB FOR T190810 AND T208132, THIS APPLICATION)
9	14M7158	1	Nut	M16, OUTPUT TERMINAL
10	T10745	1	Washer	OUTPUT TERMINAL
11	T158584	1	Fan	-
12	12M7032	1	Lock Washer	8.400 mm
13	14M7298	1	Flange Nut	M8
14	14M7375	1	Flange Nut	M5
15	AT160701	1	Wiring Harness	-
16	AT173624	1	Alternator	(SUB FOR AT220393) (SUB TY6799) 12V-65AMP, NEW (WITH STANDARD WORK LIGHTS)
16	-	1	Part 20	12V-65AMP, (WITH STANDARD WORK LIGHTS) (TY6799 NLA)
16	SE501387	1	Alternator Reman	REMAN FOR AT173624, AT220393 OR TY6799
16	AH137883	1	Alternator	12V-95AMP, NEW, (SUB FOR AT220394) (SUB TY6750 OR TY24485 (WITH STANDARD WORK LIGHTS))
16	TY24485	1	Alternator	12V-95AMP, NLA; ORDER SE501342
16	SE501342	1	Alternator Reman	REMAN FOR AH137883 OR TY24485
16	AT185951	1	Alternator	(12V-120 AMP) NEW, (SUB AH165975)
16	AH165975	1	Alternator	(12 VOLT, 120 AMP) (NEW)

ALTERNATOR,VOLTAGE REGULATOR AND ALTERNATOR BELT

Нет текстового описания
