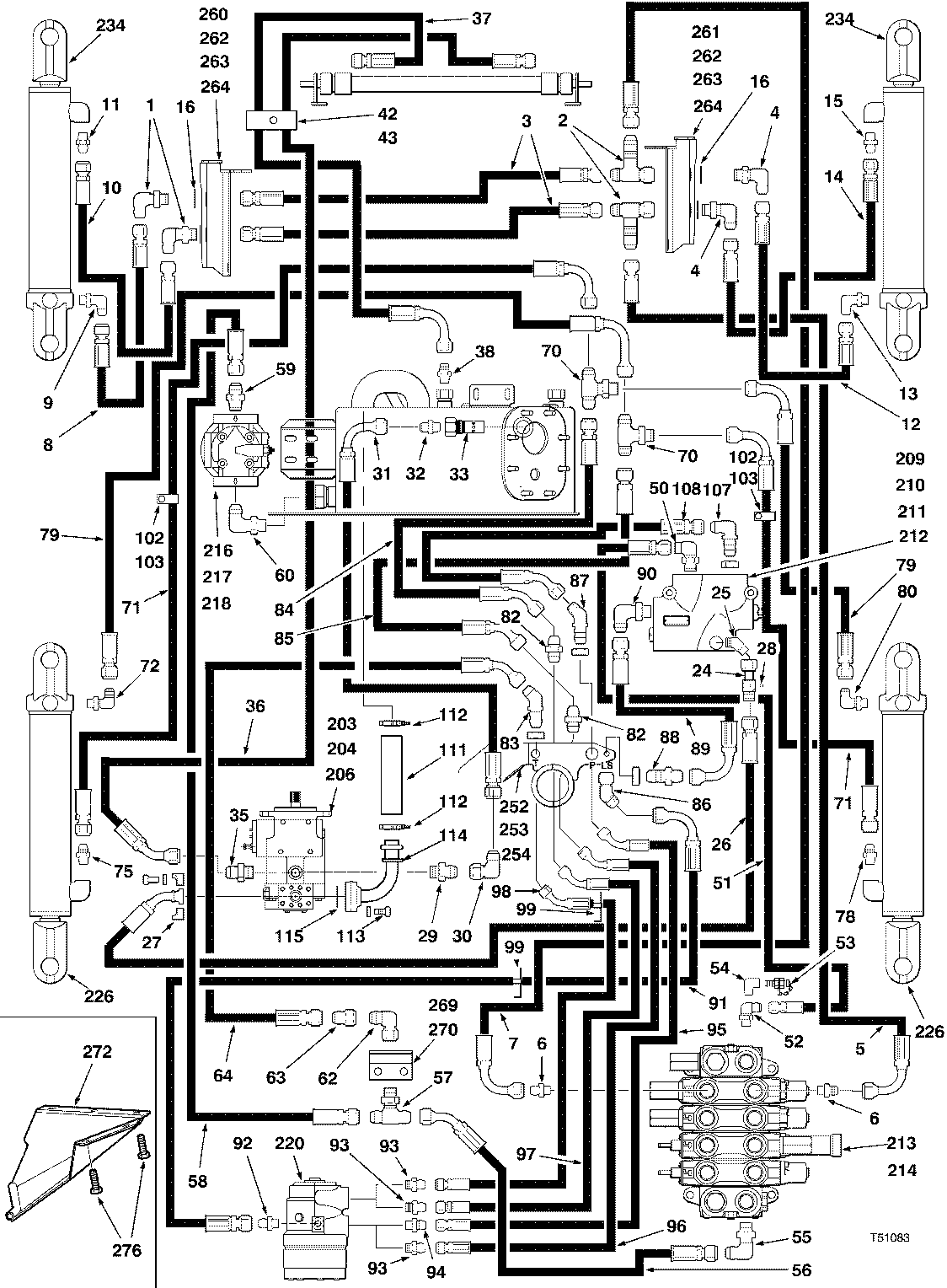

HYDRAULIC SYSTEM POWER FRAME GRAPPLE S/A ( 962605 - 974173) 2000-229/18 [2000-229/18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	810372600	2	ELBOW-90 DEG.	-
2	F120887	2	TEE -	-
3	810406000	2	HOSE-HYD*0.50X27 -	-
4	810372600	2	ELBOW-90 DEG.	-
5	811898000	1	HOSE-HYD*.50 X 97 -	-
6	810490900	2	FITTING 1/2 MJIC 3/4 -	-
7	811432400	1	HOSE-HYD*0.5X93 -	-
8	812000300	1	HOSE-HYD*.50 X 57 -	-
9	810292900	1	ELBOW-90 DEG. -	-
10	811806600	1	HOSE-HYD*0.5X77 -	-
11	810490900	1	FITTING 1/2 MJIC 3/4 -	-
12	811922300	1	HOSE-HYD*.500X61 -	-
13	810292900	1	ELBOW-90 DEG. -	-
14	812000400	1	HOSE-HYD*.50 X 81 -	-
15	810490900	1	FITTING 1/2 MJIC 3/4 -	-
16	812000700	4	WASHER-SPECIAL -	-
24	F120908	1	FITTING-SPECIAL -	-
25	811605700	1	ELBOW-45 DEG. -	-
26	811954400	1	HOSE-HYD*.75 X 56 -	-
27	811168000	1	FLANGE KIT -	-
28	811889200	1	PLUG -	-
29	810115800	1	FITTING 3/4 MJIC 3/4	-
30	810447100	1	ELBOW-90 DEG. -	-
31	811982200	1	HOSE-HYD*.75 X 18 -	-
32	810074600	1	CONNECTOR	-
33	F120241	1	VALVE - CHECK	-
35	810115800	1	FITTING 3/4 MJIC 3/4	-
36	811984900	1	HOSE ASSY-SPECIAL -	-
37	811984800	1	HOSE ASSY-SPECIAL -	-
38	810298900	1	FITT MALE.1.063/1063 -	-
42	827311300	1	CHANNEL -	-
43	811707100	1	LOCKNUT*M12X1.75 -	-
50	811437600	1	ELBOW-90 -	-
51	811982300	1	HOSE-HYD*.75 X 96 -	-
52	827318900	1	FITTING REWORK -	-
53	700578000	1	COUPLER-TEST -	-
54	810420700	1	ELBOW-90 DEG. -	-
55	810289600	1	ELBOW 90 DEG	-
56	811981600	1	HOSE-HYD*.75 X 38 -	-
57	810799200	1	Tee Fitting	-
58	811846900	1	HOSE-HYD* .75 X 118`` -	-
59	811195500	1	ADAPTER -	-
60	810236000	1	ELBOW-90 DEG. -	-
62	810447100	1	ELBOW-90 DEG. -	-
63	810471600	1	FITTING MJIC/FJIC -	-
64	811953500	1	HOSE-HYD* .50 X 43 -	-
70	811993200	2	TEE - BULKHEAD	-
71	811742800	2	HOSE-HYD*0.5X59 -	-
72	810292900	1	ELBOW-90 DEG. -	-
75	810490900	1	FITTING 1/2 MJIC 3/4 -	-
78	810490900	1	FITTING 1/2 MJIC 3/4 -	-
79	811293700	2	HOSE-HYD*0.5X28 -	-
80	810292900	1	ELBOW-90 DEG. -	-
82	810348700	2	FITTING -	-
83	810466500	1	ELBOW-45 DEG.	-
84	810729200	1	HOSE-HYD*0.50X38 -	-
85	F120897	1	HOSE-HYD*.50 X 79 -	-
86	810609500	1	ELBOW 45 DEG. -	-
87	810566100	1	ELBOW-45 DEG. - BULKHEAD	-
88	810685800	1	ADAPTER -	-
89	811982500	1	HOSE-HYD*.25 X 23 -	-
90	810057600	1	ELBOW-90 DEG. -	-
91	811160900	1	HOSE-HYD*0.25X43 -	-
92	810334300	1	ADAPTER	-
93	810490900	3	FITTING 1/2 MJIC 3/4 -	-
94	810115800	1	FITTING 3/4 MJIC 3/4	-
95	F120882	1	HOSE-HYD*.75 X 41 -	-
96	F120883	1	HOSE-HYD*.50 X 43 -	-
97	F120884	1	HOSE-HYD*.50 X 46 -	-
98	810909900	1	HOSE-HYD*0.50X42	-
99	810402100	2	TIE WRAP -	-
102	810447700	2	Clamp	-
103	811699200	2	SCREW*M10X1.50-16 -	-
107	810554400	1	ELBOW-90 DEG. -	-
108	F120502	1	HOSE-HYD*.75 X 43 -	-
111	826999100	1	HOSE -	-
112	700580500	2	CLAMP -	-
113	810082200	4	BOLT*1/2-13UNCX1-1/4	-
114	811871700	1	ELBOW-90 DEG. -	-
115	810694900	1	O-RING -	-
203	827006000	1	GASKET -	-
204	-------	1	O-RING	-
206	811703700	2	SCREW*M16X2.00-40mm -	-
209	811937100	1	VALVE - PRIORITY	-
210	810956900	2	BOLT*M8X1.25-90 -	-
211	811706900	2	LOCKNUT*M8X1.25 -	-
212	810309800	2	FLAT WASHER 3/8 - HARDENED	-
213	-------	1	O-RING	-
214	811701600	3	SCREW*M12X1.75-40 -	-
216	F123155	1	FILTER -	-
217	810080100	4	HEX HEAD BOLT 3/8-16 UNC X 1	-
218	810309800	4	FLAT WASHER 3/8 - HARDENED	-
220	-------	1	O-RING	-
226	-------	2	O-RING	-
234	-------	2	O-RING	-
252	F281223	1	BRACKET -	-
253	811314500	2	BOLT*M12X1.75-45 -	-
254	810011600	2	WASHER*1/2	-
260	827120800	1	COVER - L.H. (W/O DOZER CLAMP)	-
261	827120900	1	COVER - R.H. (W/O DOZER CLAMP)	-
262	811699400	4	SCREW*M10X1.50-25mm -	-
263	810309900	4	Washer	-
264	811268300	4	LOCKNUT*M10X1.5 -	-
269	827329200	1	BRACKET -	-
270	811699300	2	SCREW*M10X1.50-20 -	-
272	F287226	1	COVER -	-
276	811699400	5	SCREW*M10X1.50-25mm -	-
-	-------	1	O-RING	-
-	F435201	1	ELEMENT -	-
-	842816700	1	SENDER -	-
-	841732700	1	INDICATOR KIT -	-
