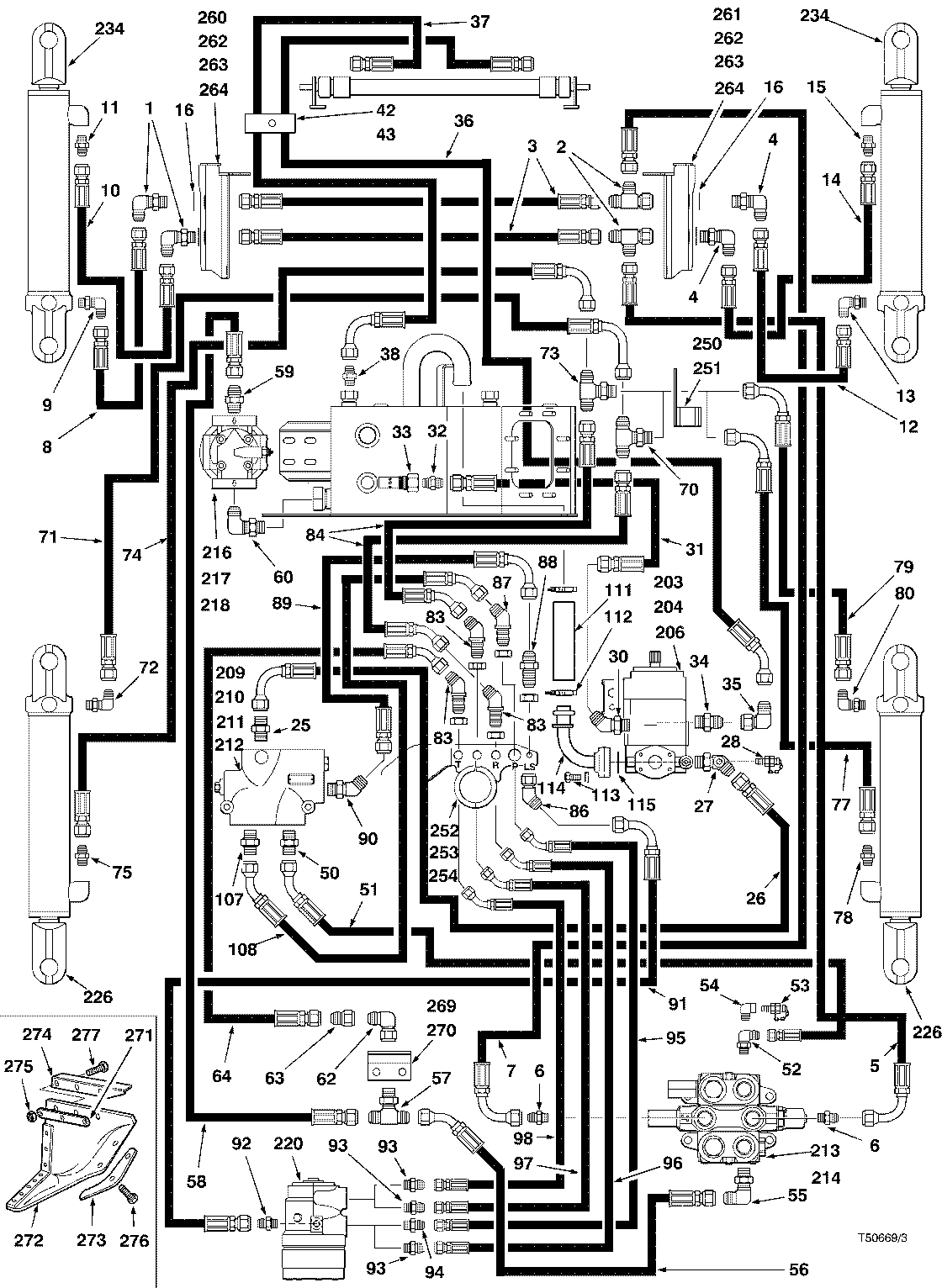

HYDRAULIC SYSTEM POWER FRAME CABLE ( CE2001 - 962604) 2000-271/14 [2000-271/14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	810372600	2	ELBOW-90 DEG.	-
2	810579400	2	TEE-JIC/JIC/JIC -	-
3	810406000	2	HOSE-HYD*0.50X27 -	-
4	810372600	2	ELBOW-90 DEG.	-
5	811898000	1	HOSE-HYD*.50 X 97 -	-
6	810490900	2	FITTING 1/2 MJIC 3/4 -	-
7	811432400	1	HOSE-HYD*0.5X93 -	-
8	812000300	1	HOSE-HYD*.50 X 57 -	-
9	810292900	1	ELBOW-90 DEG. -	-
10	811806600	1	HOSE-HYD*0.5X77 -	-
11	810490900	1	FITTING 1/2 MJIC 3/4 -	-
12	811922300	1	HOSE-HYD*.500X61 -	-
13	810292900	1	ELBOW-90 DEG. -	-
14	812000400	1	HOSE-HYD*.50 X 81 -	-
15	810490900	1	FITTING 1/2 MJIC 3/4 -	-
16	812000700	4	WASHER-SPECIAL -	-
25	811439600	1	ADAPTER -	-
26	811959600	1	HOSE-HYD*.75 X 68 -	-
27	700253700	1	FITTING REWORK-45DEG -	-
28	700578000	1	COUPLER-TEST -	-
30	810737900	1	ELBOW-45 DEG. -	-
31	811998800	1	HOSE-HYD*.75 X 38 -	-
32	810074600	1	CONNECTOR	-
33	F120241	1	VALVE - CHECK	-
34	810277000	1	FITTING 3/4 MJIC 5/8	-
35	810447100	1	ELBOW-90 DEG. -	-
36	811990300	1	HOSE-HYD* .75X128`` -	-
37	811984900	1	HOSE ASSY-SPECIAL -	-
38	810298900	1	FITT MALE.1.063/1063 -	-
42	827311300	1	CHANNEL -	-
43	811707100	1	LOCKNUT*M12X1.75 -	-
50	811439600	1	ADAPTER -	-
51	812001400	1	HOSE-HYD*.75 X 89 -	-
52	827318900	1	FITTING REWORK -	-
53	700578000	1	COUPLER-TEST -	-
54	810420700	1	ELBOW-90 DEG. -	-
55	810289600	1	ELBOW 90 DEG	-
56	811990600	1	Hydraulic Hose	-
57	810799200	1	Tee Fitting	-
58	811846900	1	HOSE-HYD* .75 X 118`` -	-
59	811195500	1	ADAPTER -	-
60	810236000	1	ELBOW-90 DEG. -	-
62	810447100	1	ELBOW-90 DEG. -	-
63	810471600	1	FITTING MJIC/FJIC -	-
64	811953500	1	HOSE-HYD* .50 X 43 -	-
70	810787500	1	TEE	-
71	F121072	1	HOSE-HYD*.50 X 56 -	-
72	810292900	1	ELBOW-90 DEG. -	-
73	810787500	1	TEE	-
74	F121070	1	HOSE-HYD* .50 X 73 -	-
75	810490900	1	FITTING 1/2 MJIC 3/4 -	-
77	811431600	1	HOSE-HYD*0.5X48C -	-
78	810490900	1	FITTING 1/2 MJIC 3/4 -	-
79	F121071	1	HOSE-HYD*.50 X 29 -	-
80	810292900	1	ELBOW-90 DEG. -	-
83	810466500	3	ELBOW-45 DEG.	-
84	810764400	2	HOSE-HYD*0.50X24 -	-
86	810609500	1	ELBOW 45 DEG. -	-
87	810566100	1	ELBOW-45 DEG. - BULKHEAD	-
88	810685800	1	ADAPTER -	-
89	811988900	1	HOSE-HYD*.25 X 35 -	-
90	810575200	1	Elbow Fitting	-
91	811684100	1	Hydraulic Hose	-
92	810334300	1	ADAPTER	-
93	810490900	3	FITTING 1/2 MJIC 3/4 -	-
94	810115800	1	FITTING 3/4 MJIC 3/4	-
95	810712500	1	HOSE-HYD*0.75X36 -	-
96	811954700	1	HOSE-HYD*.50 X 40 -	-
97	810909900	1	HOSE-HYD*0.50X42	-
98	811982600	1	HOSE-HYD*.50 X 44 -	-
107	810277000	1	FITTING 3/4 MJIC 5/8	-
108	810839500	1	HOSE-HYD*0.75X61 -	-
111	826806900	1	HOSE -	-
112	700580400	2	CLAMP -	-
113	810082200	4	BOLT*1/2-13UNCX1-1/4	-
114	811167900	1	ELBOW-90 DEG. -	-
115	810460100	1	O-RING -	-
203	823533500	1	GASKET -	-
204	-------	1	O-RING	-
206	811701400	2	SCREW*M12X1.75-30 -	-
209	811937100	1	VALVE - PRIORITY	-
210	810956900	2	BOLT*M8X1.25-90 -	-
211	811706900	2	LOCKNUT*M8X1.25 -	-
212	810309800	2	FLAT WASHER 3/8 - HARDENED	-
213	-------	1	O-RING	-
214	811701600	3	SCREW*M12X1.75-40 -	-
216	F123155	1	FILTER -	-
217	810080100	4	HEX HEAD BOLT 3/8-16 UNC X 1	-
218	810309800	4	FLAT WASHER 3/8 - HARDENED	-
220	-------	1	O-RING	-
226	-------	2	O-RING	-
234	-------	2	O-RING	-
250	826903300	1	BRACKET -	-
251	811701300	2	SCREW*M12X1.75-25 -	-
252	827318400	1	BRACKET -	-
253	811314500	2	BOLT*M12X1.75-45 -	-
254	810011600	2	WASHER*1/2	-
260	827120800	1	COVER - L.H. (W/O DOZER CLAMP)	-
261	827120900	1	COVER - R.H. (W/O DOZER CLAMP)	-
262	811699400	4	SCREW*M10X1.50-25mm -	-
263	810309900	4	Washer	-
264	811268300	4	LOCKNUT*M10X1.5 -	-
269	827329200	1	BRACKET -	-
270	811699300	2	SCREW*M10X1.50-20 -	-
271	F279217	1	FLAT -	-
272	F280157	1	GUARD	-
273	827082700	1	PLATE -	-
274	827082600	1	ANGLE -	-
275	811898100	3	Weld Nut	-
276	811699400	5	SCREW*M10X1.50-25mm -	-
277	811699600	3	SCREW*M10X1.50-35 -	-
-	-------	1	O-RING	-
-	F435201	1	ELEMENT -	-
-	842816700	1	SENDER -	-
-	841732700	1	INDICATOR KIT -	-
