Открытый узел

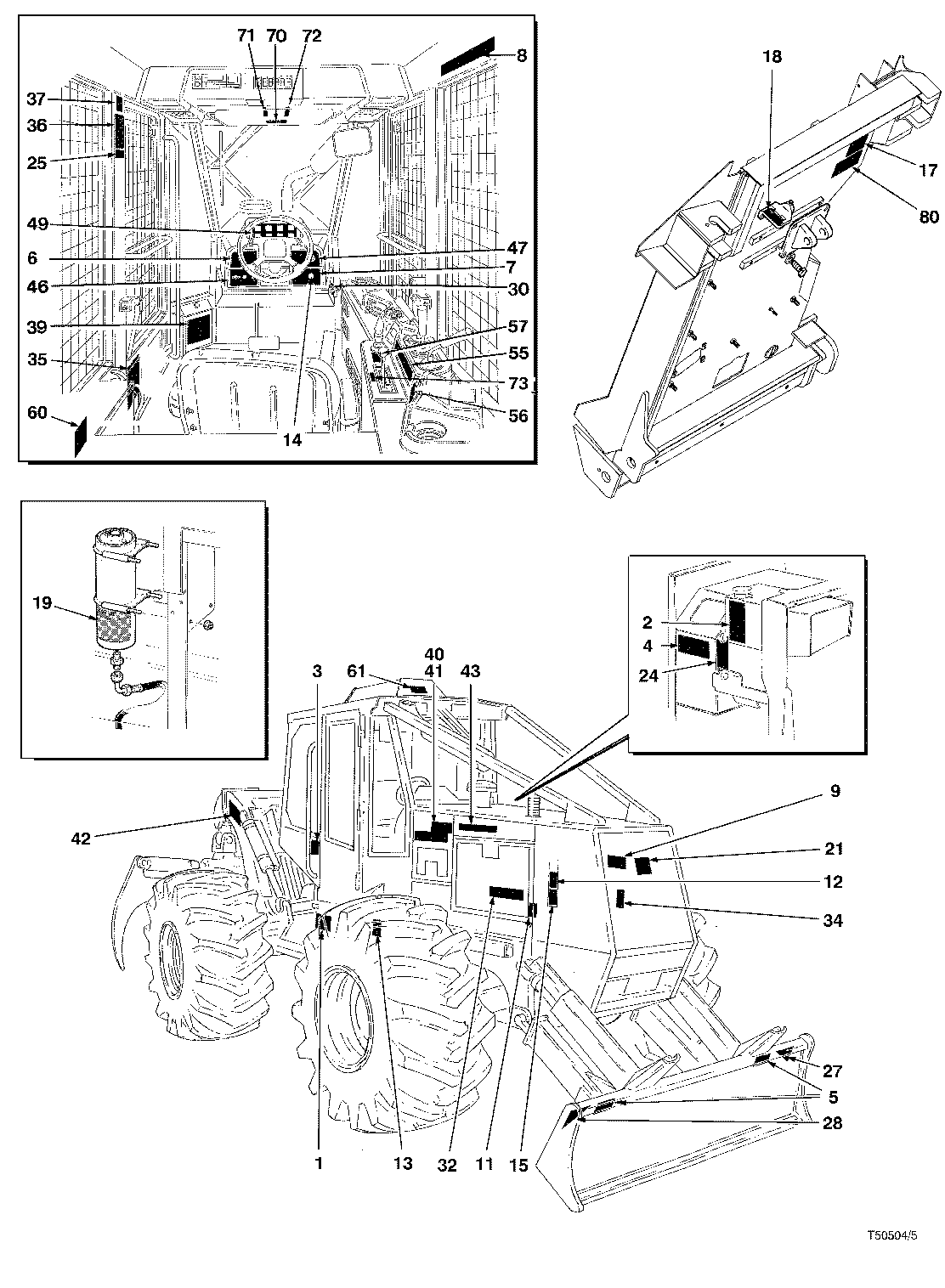

DECALS RUSSIAN ( CE2001 - 974173) 7510-045/10 [7510-045/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F277766	2	Safety Sign	-
2	F277771	1	Label	-
3	F277781	2	DECAL - MOUNT/DISMOUNT	-
4	F277786	1	DECAL - PRESSURIZED SYSTEM	-
5	F277791	2	DECAL - BLOCK SUSPENDED LOADS	-
6	F277838	1	DECAL - DASH PANEL-UPPER L.H	-
7	F277843	1	DECAL - DASH PANEL-LOWER R.H	-
8	F277761	1	DECAL - ROPS CERT PLATE	-
9	F280036	1	DECAL - A/C SYSTEM	-
11	F277796	2	Label	-
12	F277801	1	DECAL - DISCONNECT POWER	-
13	F277806	1	DECAL - DO NOT PRESSURIZE FUEL	-
14	F279335	1	DECAL - TRANS. CONTR. CONFIG	-
15	F277813	1	DECAL - SHORTING ACROSS STARTER	-
17	F277833	1	DECAL - CRUSH ZONE/CAB	-
18	F278154	1	DECAL - CAB/TILT/SAFETY LATCH	-
19	F277848	1	DECAL - ACCUMULATOR CHARGE	-
21	826762500	1	EMBLEM - DONKEY -	-
24	F277818	1	DECAL - HYD TANK OIL LEVEL	-
25	F280006	1	DECAL - WINCH (360/T250)	-
27	826793900	1	DECAL - DOZER-L.H	-
28	826794000	1	DECAL - DOZER-R.H	-
30	826930900	1	DECAL - MASTER DISCONNECT	-
32	827311700	1	DECAL - TRANS CONTROL VALVE	-
34	F277828	1	DECAL - CAB TILT/BRAKE RELEASE	-
35	F277823	1	DECAL - MAINTENANCE CHART	-
36	F277808	1	DECAL - SAFETY PRECAUTIONS	-
37	F277776	1	DECAL - BLOCK LOADS/HYD LINES	-
39	F283056	1	DECAL - FUSE PANEL	-
40	827246100	1	DECAL - 360-R.H	-
41	827246000	1	DECAL - 360-L.H	-
42	F277756	2	DECAL - ARCH, KEEP CLEAR (GRAPPLE ONLY)	-
43	700875600	2	Label	-
46	826930300	1	DECAL - DASH PANEL-LOWER L.H	-
47	F281890	1	Label	-
49	827191500	1	DECAL - CENTRE DASH	-
55	826929900	1	DECAL - BLADE FUNCTION (CABLE ONLY)	-
56	826930000	1	DECAL - TRANSMISSION/WINCH	-
57	826930600	1	DECAL - DIFF LOCK	-
60	826955800	1	DECAL - FIRE SUPPRESSION SYS	-
61	826955900	1	DECAL - PRESSURIZED SYS	-
70	827246500	1	DECAL - TERMINAL BLOCK	-
71	827335800	1	DECAL - FUSE HOLDER	-
72	827246900	1	DECAL - FUSE HOLDER	-
73	827332700	1	DECAL - EGS OVERIDE SWITCH	-
80	F277443	1	DECAL - ELECT/HYD-MANIFOLD (360)	-
-	F277540	1	DECAL - BLADE/SWING BOOM (460 S/B)	-
-	827053600	1	DECAL - BLADE/CLAMP/GRAPPLE (S/A GR ONLY)	-
-	F277539	1	DECAL - BLADE/CLAMP/DUAL ARCH (460 D/A)	-
-	827081300	1	DECAL - TRANS/HYD SHUT-OFF (EURO ONLY)	-
-	827076200	1	DECAL - DIFF LOCK/WINCH (EURO ONLY)	-
-	F277442	1	DECAL - ELECT/HYD-MANIFOLD (460)	-
-	F277538	1	DECAL - ELECT/HYD-MANIFOLD (EURO ONLY)	-
-	826952900	1	DECAL - BLADE/RECUP/GRAPPLE FUNCTION (460 D/A)	-
-	826952800	1	DECAL - BLADE/GRAPPLE FUNCTION (460 D/A)	-
-	826955500	1	DECAL - BLADE/BUTT PAN (EURO ONLY)	-
-	826955600	1	DECAL - BLADE/CLAMP/BUTT PAN (EURO ONLY)	-
-	F280031	1	DECAL - WINCH (460/T60D)	-
-	826929800	1	DECAL - BLADE/GRAPPLE FUNCTION (S/A GR ONLY)	-
-	826955400	1	DECAL - BLADE/CLAMP FUNCTION (CABLE ONLY)	-
-	826955700	1	DECAL - CENTRE DASH (EURO ONLY)	-
-	F281891	1	DECAL - ALARM/PARK BRAKE-660	-
-	827246200	1	DECAL - 460-L.H	-
-	827246300	1	DECAL - 460-R.H	-
-	F280016	1	DECAL - WINCH (460/T250)	-
-	F280011	1	DECAL - WINCH (360/T40D 8``)	-
-	F280021	1	DECAL - WINCH (460/T40D 8``)	-
-	-------	1	O-RING	-
-	F280026	1	DECAL - WINCH (460/T40D 10``)	-

DECALS RUSSIAN ( CE2001 - 974173) 7510-045/10 [7510-045/10]

Нет текстового описания
