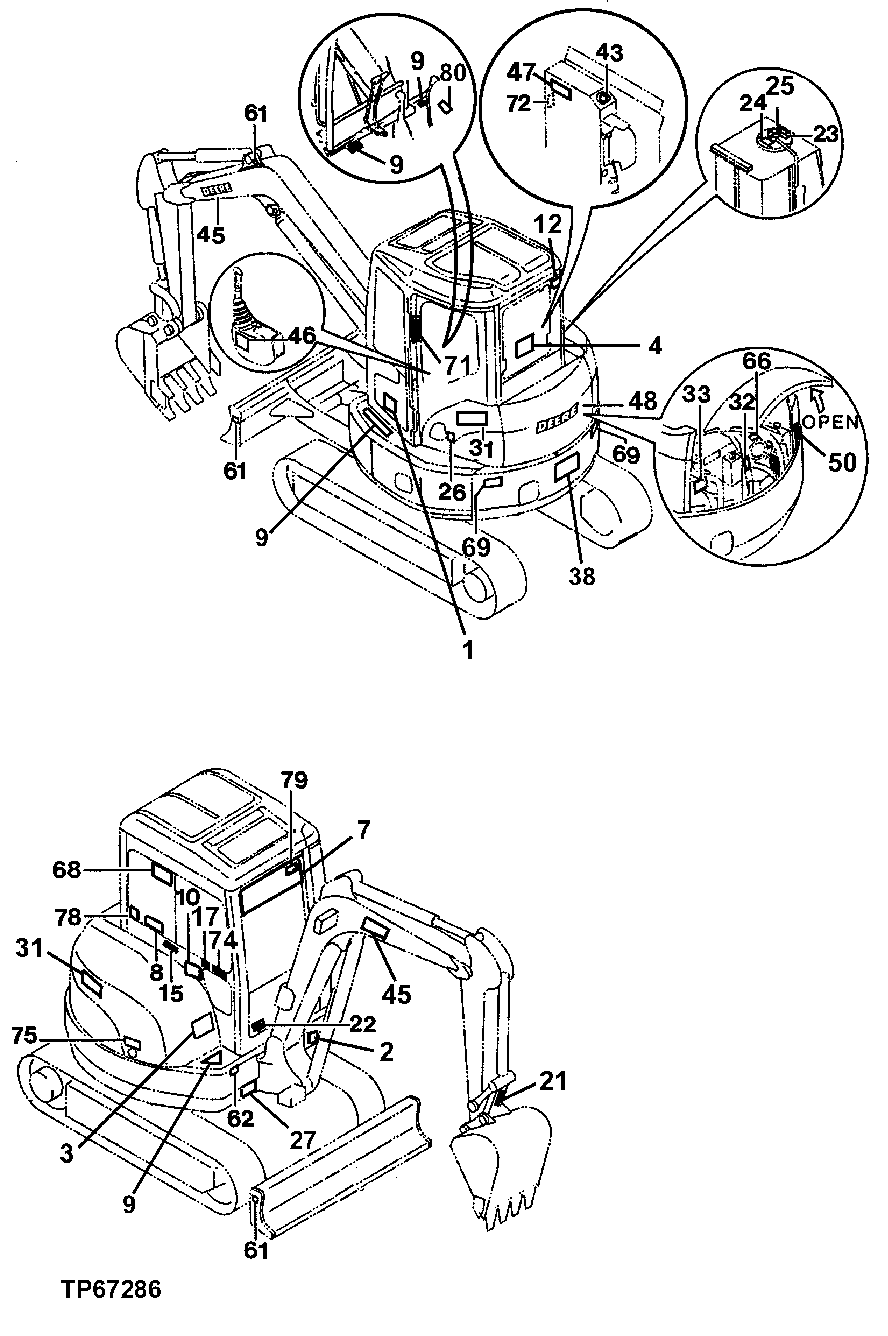

LABELS AND DECALS FOR CAB UNITS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	2045210	1	Label	(SUB FOR T185754)(PERIODIC MAINTENANCE)
2	T183768	1	Label	(WARNING)
3	JD5750	1	Label	-
3	JD5696	1	Label	(LEAPING DEERE)
4	T167256	1	Label	(SECONDARY EXIT)
7	T184286	1	Label	(JOHN DEERE)
8	T146667	1	Safety Sign	(DANGER - ELECTROCUTION)
9	H21259	4	Mat	(ANTI-SKID)
10	T159887	1	Safety Sign	(CAUTION) (INSIDE CAB)
12	3090193	1	Mounting Parts	(SUB FOR T185751)(TOPS CERTIFICATION)
15	4334011	1	Label	(SUB FOR AT258333)(THROTTLE) (INSIDE CAB)
17	T163997	1	Label	(OPERATION - BLADE)
21	T208596	1	Safety Sign	(SUB FOR T185672)(WARNING)
22	4369061	1	Label	(SUB FOR AT258340)(BOOM SWING)
23	T101942	1	Label	(HYDRAULIC OIL)
24	4430516	1	Label	(SUB FOR AT258421)(HYDRAULIC OIL CAP)
25	AT258431	1	Label	(HYDRAULIC CAP)
26	4431898	1	Label	(SUB FOR AT258423)(DIESEL ONLY)
27	4439185	1	Label	(SUB FOR TH4439185)(LUBRICATION - SWING BEARING)
31	T184156	2	Label	(MODEL)
32	T152657	1	Safety Sign	(IMPORTANT)
33	4433590	1	Label	(SUB FOR AT258429)(CAUTION)
38	2044813	1	Label	(SUB FOR AT258317)(STAY CLEAR)
43	4430434	1	Label	(SUB FOR AT258419)(KEY SWITCH)
45	T183799	2	Label	(DEERE)
46	4299059	1	Label	(SUB FOR T138886)(HYDRAULIC LOCK)
47	4441616	1	Label	(SUB FOR T185752)(ALARM CANCEL)
48	T187389	1	Label	(DEERE)
50	-	1	Part 29	(CAUTION - RADIATOR) ( AT258426 NOT AVAILABLE FOR SERVICE)
61	4357593	3	Label	(SUB FOR AT258338)(LIFT)
62	4422323	1	Label	(SUB FOR AT256111)(VALVE POSITION)
66	-	1	Part 32	(AIR CLEANER) ( R56092 NOT AVAILABLE FOR SERVICE)
68	3090055	1	Chart	(SUB FOR T185753)(LIFT CHART)
69	JD5909	2	Reflector	-
71	T146097	1	Label	(SUB FOR AT258322 OR 3088058)(SEAT BELT)
72	4430435	1	Label	(SUB FOR AT258420)(FUSE)
74	T201519	1	Label	(SUB FOR TH3089167, TH4459646, 4459646)(OPERATION PATTERN)
75	4433591	1	Label	(SUB FOR AT258430)(ENGINE STOP)
78	T190393	1	Label	(SUB FOR T157809)(EMERGENCY HAMMER)
79	T146664	1	Safety Sign	(FRONT WINDOW LOCK)
80	T146102	1	Label	(BYPASS START)
