AIR CONDITIONER COMPRESSOR AND ENGINE PARTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4615804	1	Compressor	-
1	7045704	1	Bracket	Right Engine Mount
2	19M7288	2	Cap Screw	M8 X 30
2	24M7055	2	Washer	8.400 X 16 X 1.600 mm
3	19M7301	1	Cap Screw	M8 X 40
3	24M7055	1	Washer	8.400 X 16 X 1.600 mm
6	3107854	1	Pulley	SUB FOR 3101339
7	19M7550	3	Cap Screw	M10 X 35
7	24M7346	3	Washer	11 X 20 X 2 mm
9	9761980	1	Bolt	-
10	-	1	Part 11	4615808 NLA, SUB 8121386, ALSO ORDER 4712753 AND 4712754
10	8121386	1	Pulley	-
11	4615852	1	V-Belt	Compressor Drive
12	24M7346	4	Washer	11 X 20 X 2 mm
13	14M7274	4	Nut	M10
14	9763875	1	Cover	-
16	24M7055	2	Washer	8.400 X 16 X 1.600 mm
16	19M7162	2	Cap Screw	M8 X 16
31	2052112	1	Guard	-
54	4615902	1	Hose	-
54	4699659	2	O-Ring	-
55	4615906	1	Tube	-
63	19M7286	1	Cap Screw	M6 X 25
63	24M7054	1	Washer	6.400 X 12 X 1.600 mm
64	19M7301	1	Cap Screw	M8 X 40
64	24M7055	1	Washer	8.400 X 16 X 1.600 mm
69	4616939	1	Wiring Harness	-
71	4602634	1	Bracket	SUB FOR 4257159
72	N198631	1	Clamp	SUB FOR 4190265
73	H77698	3	Tie Band	SUB FOR 4055312
74	4698515	1	Tube	SUB FOR 4628863
77	24M7346	1	Washer	11 X 20 X 2 mm
77	19M7938	1	Cap Screw	M10 X 20
78	3106052	1	Radiator Hose	Use With Air Conditioner, SUB FOR 2050052
78	3104231	1	Radiator Hose	Use Without Air Conditioner
81	AT318129	1	V-Belt	Engine Fan Drive, SUB FOR 4626340
81	MIU800031	1	V-Belt	Engine Fan Drive, SUB FOR 4643185
82	M801086	1	Pulley	SUB FOR 4633968
82	M801086	1	Pulley	-
10A	4615809	1	Pulley	-
10B	4615810	1	Cover	USE WITH 4615808
10B	4712753	1	Cover	USE WITH 8121386
10C	4615811	1	Cover	USE WITH 4615808
10C	4712754	1	Cover	USE WITH 8121386

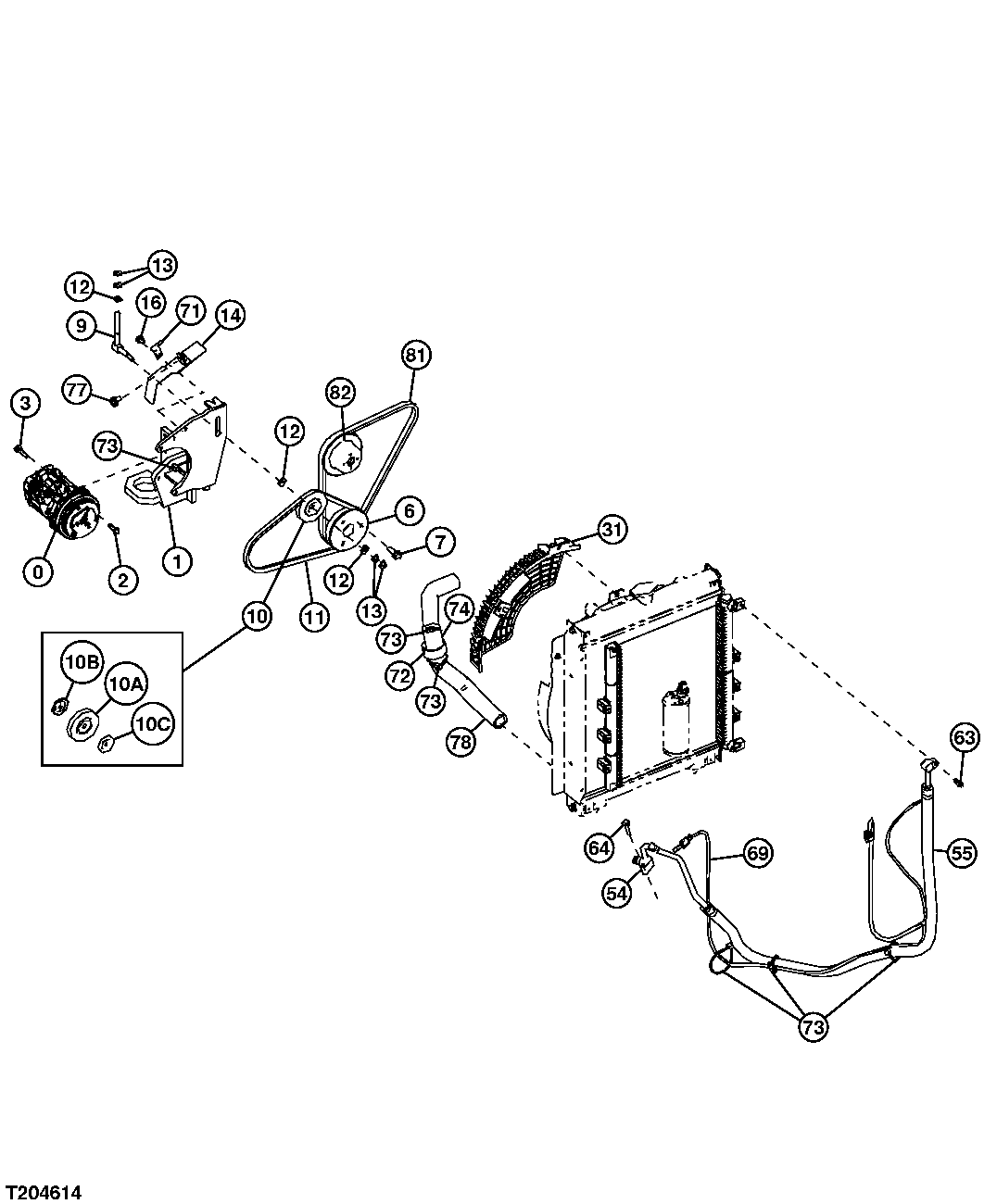

AIR CONDITIONER COMPRESSOR AND ENGINE PARTS
