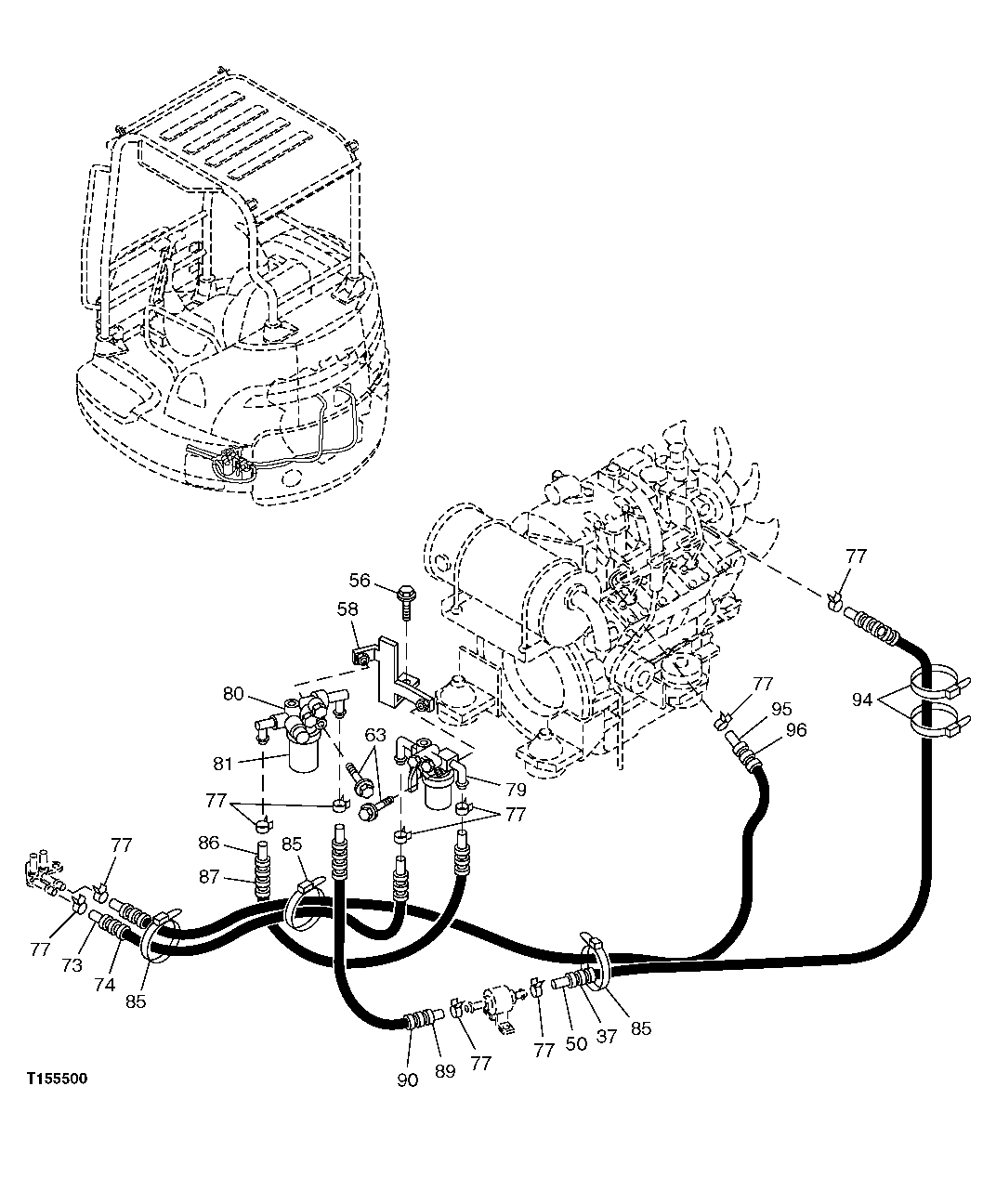

FUEL PUMPS (COMPLETE), HOSES AND BRACKETS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
37	4348600	1	Tube	(SUB FOR 4427941 OR 4348600)
50	TY24398	1	Bulk Hose	(CUT TO LENGTH)
56	19M7938	2	Cap Screw	M10 X 20, (SUB FOR J051020)
56	24M7096	2	Washer	10.500 X 18 X 1.600 mm
56	12M7066	2	Lock Washer	10 mm
58	9758656	1	Bracket	-
63	19M7663	2	Cap Screw	M8 X 70
63	24M7055	2	Washer	8.400 X 16 X 1.600 mm
63	12M7056	2	Lock Washer	8 mm
73	-	1	Part 10	(4429126 NLA), (MAKE FROM <service-part qty="1">TY22324</service-part> (CTL) 565MM (22.24"))
74	4346674	1	Sleeve	(SUB FOR 4429412)
77	4339258	10	Hose Clamp	-
79	8973112542	1	Filter	(COMPONENTS ON ANOTHER PAGE), (SUB FOR 8973112541)
79	8943602540	1	Filter Element	(SUB FOR 4418776)
80	8971363192	1	Filter	(COMPONENTS ON ANOTHER PAGE), (SUB FOR AT260062, 8971363191)
81	8970713480	1	Filter Element	(SUB FOR AT256025 OR 4454529)
85	H77698	3	Tie Band	-
86	-	1	Part 18	(SUB FOR 4427933 OR 4458313 OR 4383152 OR 4352772)(MF TY24398 CTL)
87	4427939	1	Hose Guard	-
89	TY24398	1	Bulk Hose	(CUT TO LENGTH)
90	4400458	1	Hose Guard	(SUB FOR 4299654 OR 4422674)
94	H77698	2	Tie Band	-
95	TY24398	1	Bulk Hose	(CUT TO LENGTH)
96	4372613	1	Sleeve	-

FUEL PUMPS (COMPLETE), HOSES AND BRACKETS
