Открытый узел

20 Engine 6090HNW01-RE546951

20 Engine 6090HNW01-RE546951

20 Engine 6090HNW01-RE546951

20 Engine 6090HNW01-RE546951

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

20 Engine 6090HNW01-RE546951

Нет текстового описания

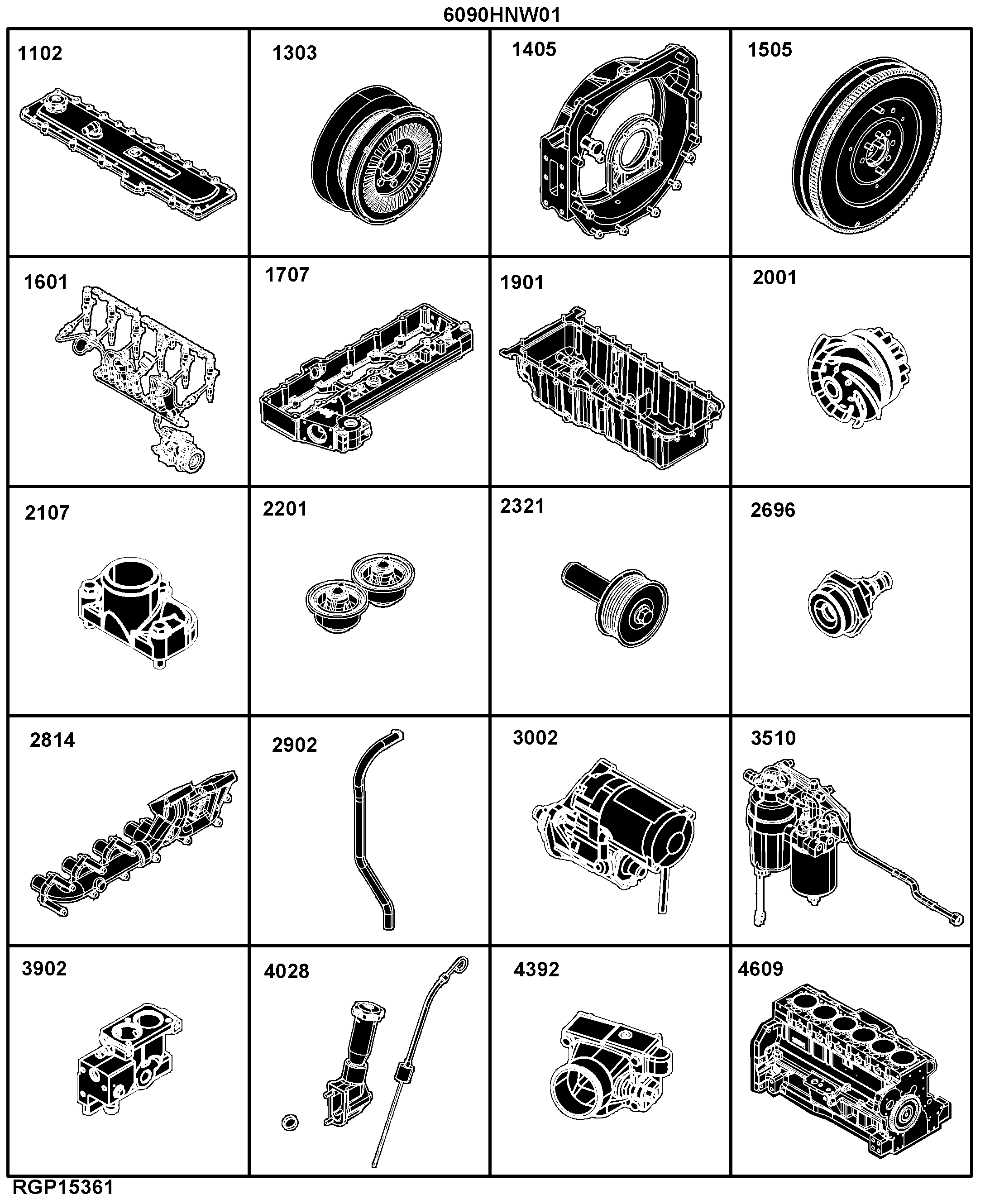

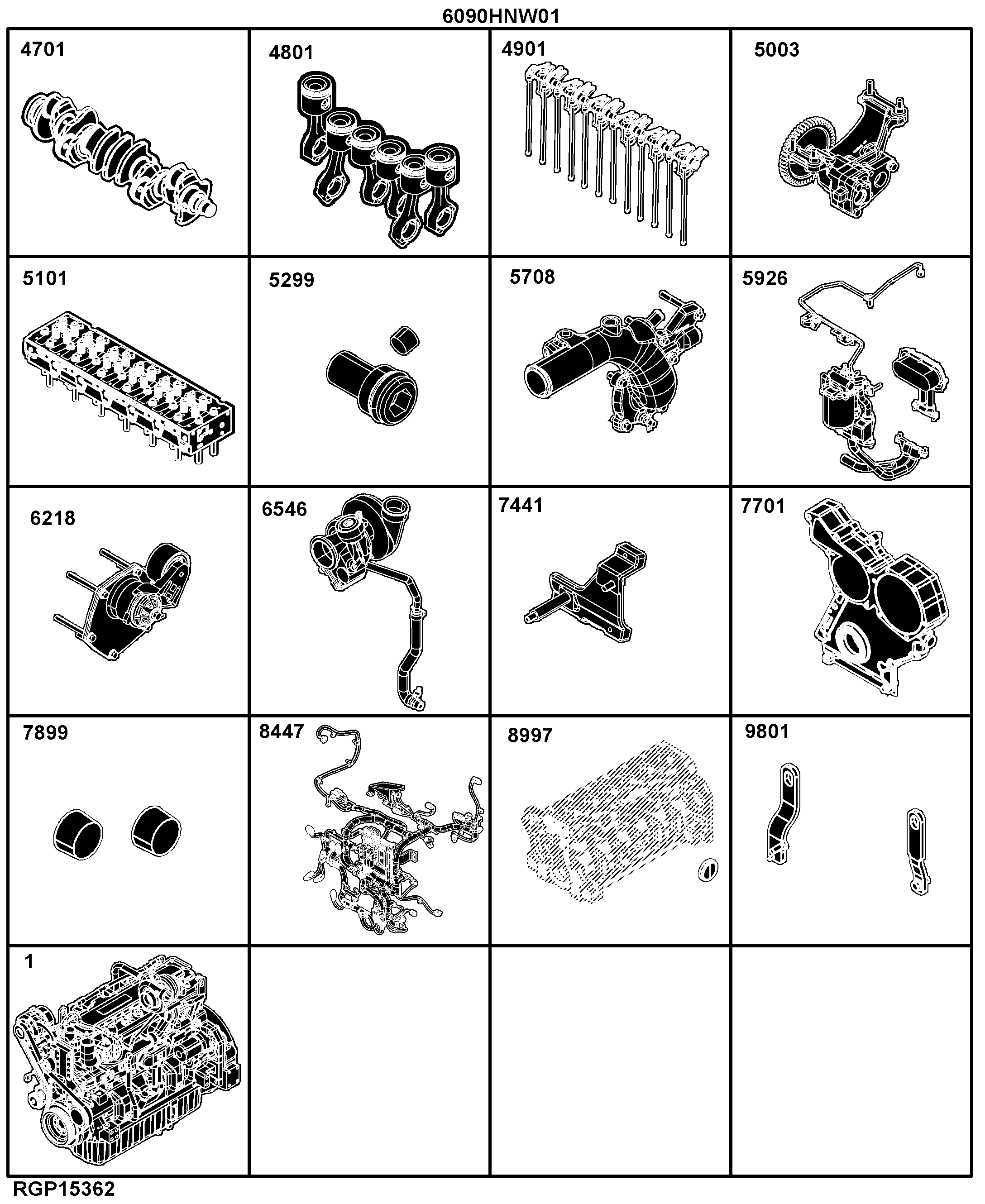

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	8447 Engine Wiring Harness	-
-	-	1	9901 Engine Gasket Kit (2/3)	-
-	-	1	9901 Engine Gasket Kit (1/3)	-
-	-	1	9901 Engine Cylinder Head Kit	-
-	-	1	9901 Electrical Repair Kit	-
-	-	1	9901 Crankshaft Thrust Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9801 Lift Straps	-
-	-	1	8997 Exhaust Gas Recirculation Plug	-
-	-	1	9901 Engine Gasket Kit (3/3)	-
-	-	1	7899 Air Compressor Mounting Plug	-
-	-	1	7701 Timing Gear Cover	-
-	-	1	7441 Air Conditioning Mounting	-
-	-	1	6573 Turbocharger (004714 - )	-
-	-	1	6546 Turbocharger ( - 004713)	-
-	-	1	6218 Alternator Mounting	-
-	-	1	5926 Engine Oil Cooler and Oil Filter	-
-	-	1	9901 Nozzle Kit	-
-	-	1	9901 Water Pump, Replacement	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Service Kit, Cylinder Head Bolts	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	5708 Water Pump Inlet	-
-	-	1	9901 Main Bearing Kit	-
-	-	1	9901 Field Installed Misc Kit	-
-	-	1	9901 Field Installed Misc Kit	-
-	-	1	9901 Field Installed Misc Kit	-
-	-	1	9901 Field Installed Misc Kit	-
-	-	1	9901 Engine Overhaul Kit 2/2	-
-	-	1	9901 Engine Overhaul Kit 1/2	-
-	-	1	1738 Intake Manifold (011097 - ), ( - 011677)	-
-	-	1	2814 Exhaust Manifold	-
-	-	1	2696 Engine Heater - Plug	-
-	-	1	2321 Fan Drive	-
-	-	1	2205 Thermostat (008474 - )	-
-	-	1	2201 Engine Thermostat ( - 008473)	-
-	-	1	2107 Thermostat Cover	-
-	-	1	2001 Water Pump	-
-	-	1	1901 Oil Pan	-
-	-	1	2902 Ventilating System	-
-	-	1	1707 Intake Manifold (011678 - )	-
-	-	1	1707 Intake Manifold ( - 011096)	-
-	-	1	1601 Fuel Injection System	-
-	-	1	1505 Flywheel	-
-	-	1	1405 Flywheel Housing	-
-	-	1	1303 Crankshaft Pulley and Damper	-
-	-	1	1107 Valve Cover	-
-	-	1	1102 Valve Cover	-
-	-	1	3002 Starter Motor	-
-	-	1	3510 Fuel Filter	-
-	-	1	3902 Thermostat Housing	-
-	-	1	4028 Engine Oil Dipstick	-
-	-	1	4392 Air Intake	-
-	-	1	4601 Cylinder Block (012103 - )	-
-	-	1	4609 Cylinder Block / Liners ( - 012102)	-
-	-	1	4701 Crankshaft and Bearings	-
-	-	1	4801 Connecting Rods and Pistons	-
-	-	1	4901 Valve Actuating Mechanism ( - 003684)	-
-	-	1	4903 Valve Actuating Mechanism (003685 - )	-
-	-	1	5003 Oil Pump (004977 - )	-
-	-	1	5101 Cylinder Head With Valves ( - 007377)	-
-	-	1	5161 Cylinder Head With Valves (007378 - )	-
-	-	1	5299 Cylinder Block Fittings	-
