Открытый узел

Topper Valve Components, Whole, Shredder, Piston Motor

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	CB01473919	4	Control Valve	-
3	CB01438310	1	Flow Control Hyd. Valve	-
4	CXT18259	1	Solenoid Valve	SUB FOR CB01424944; ALSO ORDER AXT13354 AND CXT18260
5	CXT18261	1	Solenoid Valve	SUB FOR CB01433280; ALSO ORDER AXT13355 AND CXT18262
6	CB01426081	1	Pressure Relief Valve	-
7	CXT18262	2	Solenoid Valve Coil	SUB FOR CB01433283; ALSO ORDER CXT18261
8	CXT18260	1	Electrical Coil	SUB FOR CB01428438; ALSO ORDER CXT18259
9	CB01438311	1	Orifice	-
10	CB01438312	1	Orifice	-
11	F435867	9	Fitting	-
12	F435866	5	Check Valve	-
13	CB01412137	3	Plug	-
14	CB01422288	10	Plug	-
15	R27474	3	Drain Plug	-
16	R36636	2	Drain Plug	-
17	F435971	4	Seal Kit	-
18	CB01470554	1	Seal Kit	-
19	TT224412	1	Seal Kit	-
20	F435606	1	Seal Kit	-
21	AT124681	2	Seal Kit	-
22	-	9	Part 22	-
23	-	5	Part 23	-
24	-	3	Part 24	-
25	-	10	Part 25	-
26	R26906	3	O-Ring	-
27	R29936	2	O-Ring	-
28	AXT13354	1	Electrical Coil	SUB FOR CB11440135; ALSO ORDER CXT18259
29	AXT13355	1	Electrical Coil	SUB FOR CB11440136; ALSO ORDER CXT18261
30	R78060	6	Elec. Connector Terminal	-
31	57M9216	1	Elec. Connector Seal	-
31	R78063	6	Elec. Connector Seal	ALSO ORDER 57M9216
32	RE12365	1	Electrical Connector Assy	-
33	RE12363	1	Electrical Connector Assy	-
34	CB01474007	3	Conduit	INCLUDES AT250878
34	AT250878	1	Conduit	-
35	CB01458178	1	Pressure Relief Valve	-
36	CB01458721	1	Nut	-
37	CB01475310	1	Nut	-
38	CB11439441	1	Manifold	Valve, Topper
38	CB11422716	1	Intake Valve	-

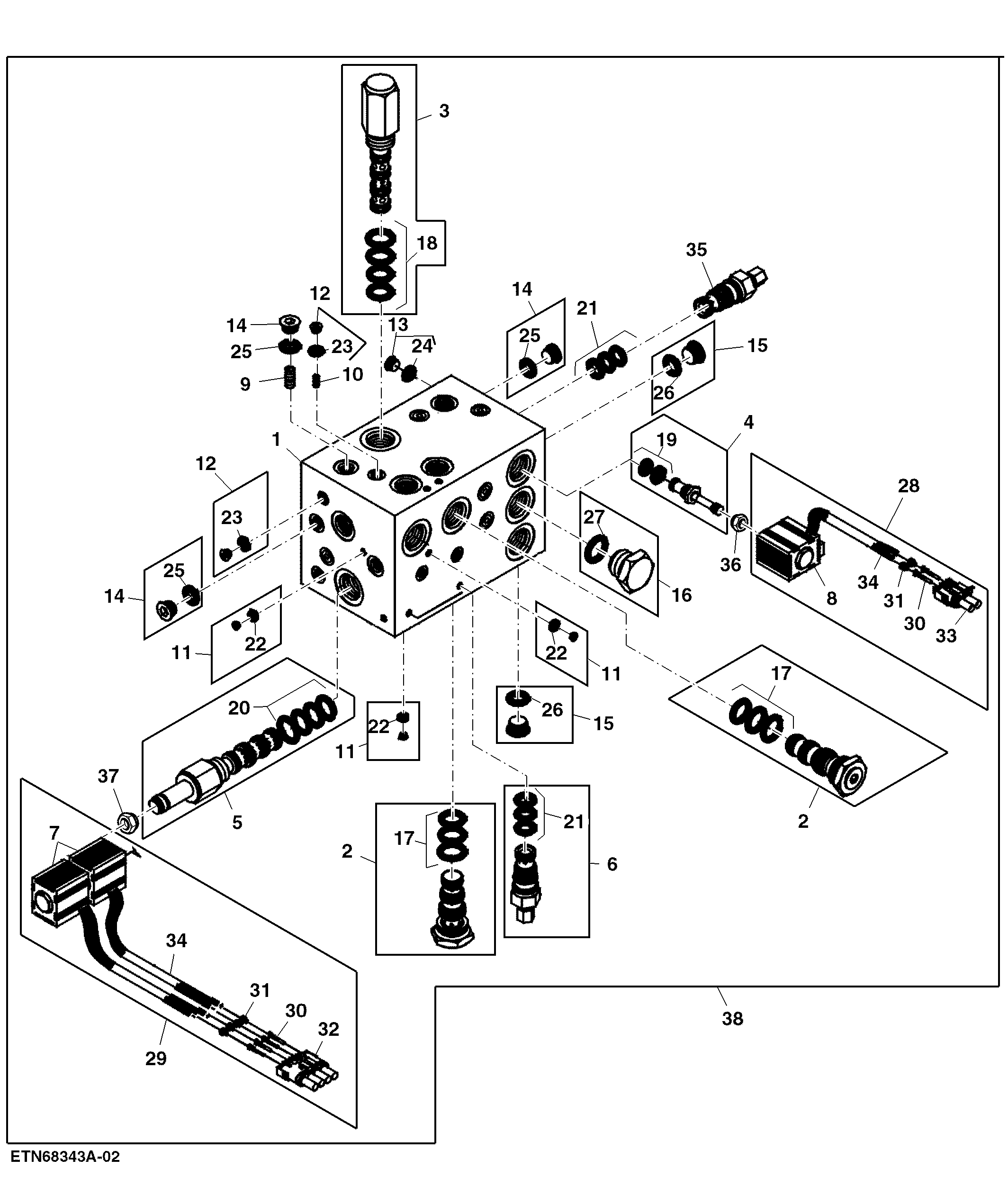

Topper Valve Components, Whole, Shredder, Piston Motor

Нет текстового описания
