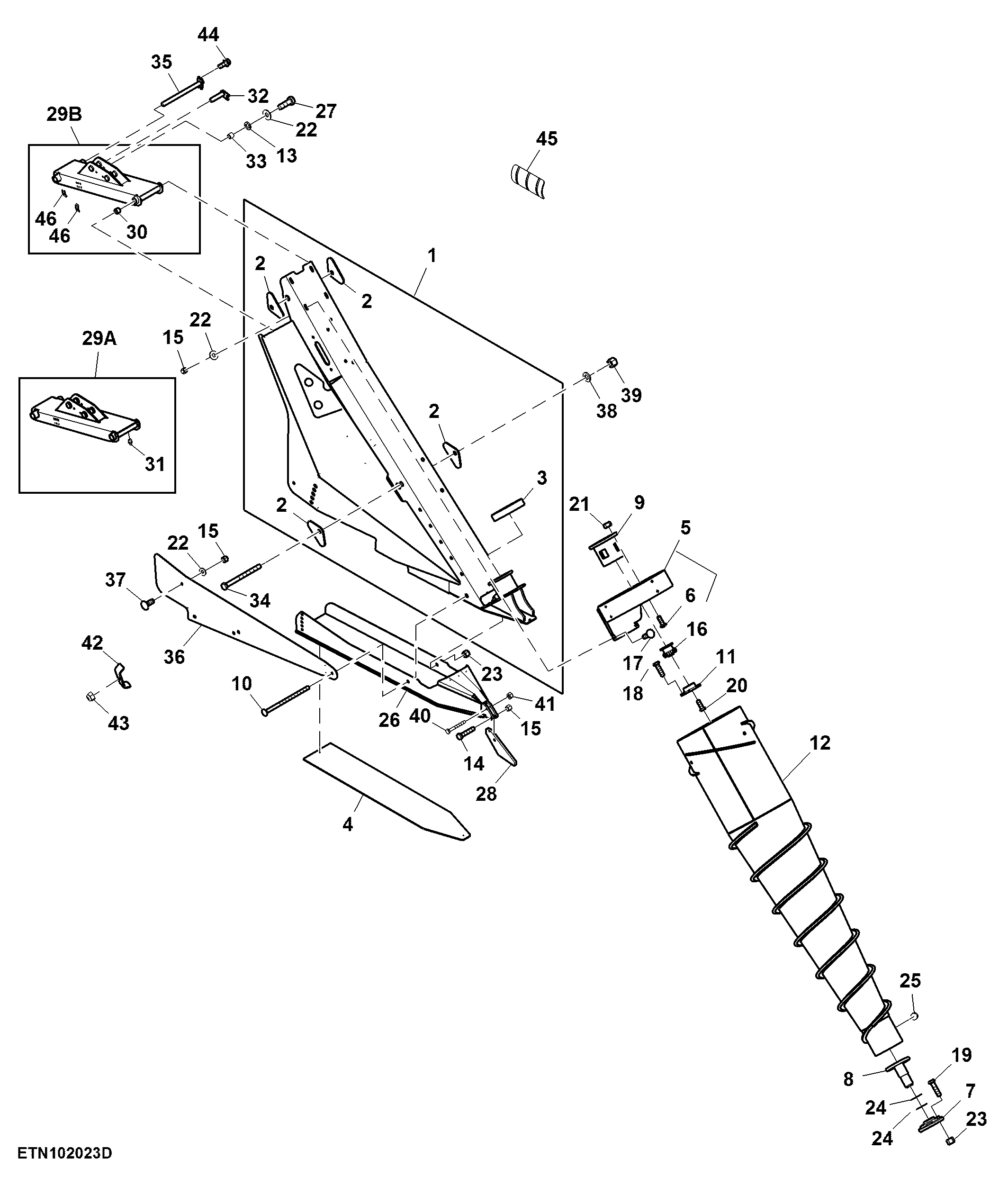

Floating Crop Divider, Louisiana (Track)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11480564	1	Crop Divider	RH
1	CB11480563	1	Crop Divider	LH
2	CB01431226	8	Reinforcement	-
3	CB01432685	2	Shield	-
4	CB01447638	2	Base	-
5	CB11494621	2	Mounting Parts	-
6	0051376099	8	Bolt	-
7	CB01480304	2	Bearing	-
8	CB01487619	2	Shaft	-
9	CB01426115	2	Housing	-
10	CB01449374	2	Bolt	-
11	CXT13073	2	Hub	SUB FOR 0300048144
12	CB11494612	1	Crop Divider	LH
12	CB11494611	1	Crop Divider	RH
13	12H301	4	Lock Washer	1/2"
14	19H2644	2	Cap Screw	1/2" X 2-1/2"
15	BP12214	14	Lock Nut	-
16	AXT11319	2	Hub	SUB FOR 0300048145
17	03H1499	8	Bolt	1/2" X 1-1/2"
18	19H2473	16	Cap Screw	1/2" X 1-3/4"
19	19H2599	8	Cap Screw	5/8" X 2-1/2"
20	19H2676	2	Cap Screw	3/8" X 1"
21	14H1040	8	Nut	1/2"
22	24H1211	16	Washer	9/16" X 1-3/8" X 0.105"
23	U44915	10	Lock Nut	-
24	0390034937	4	Washer	-
25	F1900316	2	Pipe Plug	-
26	CB11473138	1	Shoe	LH
26	CB11473139	1	Shoe	RH
27	19H2993	4	Cap Screw	1/2" X 1-1/2"
28	CB01501692	2	Plate	-
30	AT216076	8	Bushing	-
31	JD7759	4	Lubrication Fitting	-
32	CB01487614	4	Pin	-
33	CXT15643	4	Spacer	SUB FOR 0291380534
34	19H3840	4	Cap Screw	1" X 12"
35	CB01487613	4	Pin	-
36	CB11473143	1	Shield	LH
36	CB11473142	1	Shield	RH
37	03H1522	4	Bolt	1/2" X 1-1/4"
38	24M7243	4	Washer	25.400 X 50 X 6 mm
39	K40018	4	Lock Nut	-
40	19H2333	2	Cap Screw	1/4" X 2-1/4"
41	M40333	2	Lock Nut	-
42	0290226082	6	Clamp	-
43	T11234	2	Lock Nut	-
44	N10214	8	Self-Locking Screw	-
45	AT252685	2	Hose Guard	-
46	T151782	12	Clip	-
29A	AXT10293	2	Linkage	-
29B	AXT11061	2	Linkage	-
