Открытый узел

Floating Crop Divider Harness

Floating Crop Divider Harness

Floating Crop Divider Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

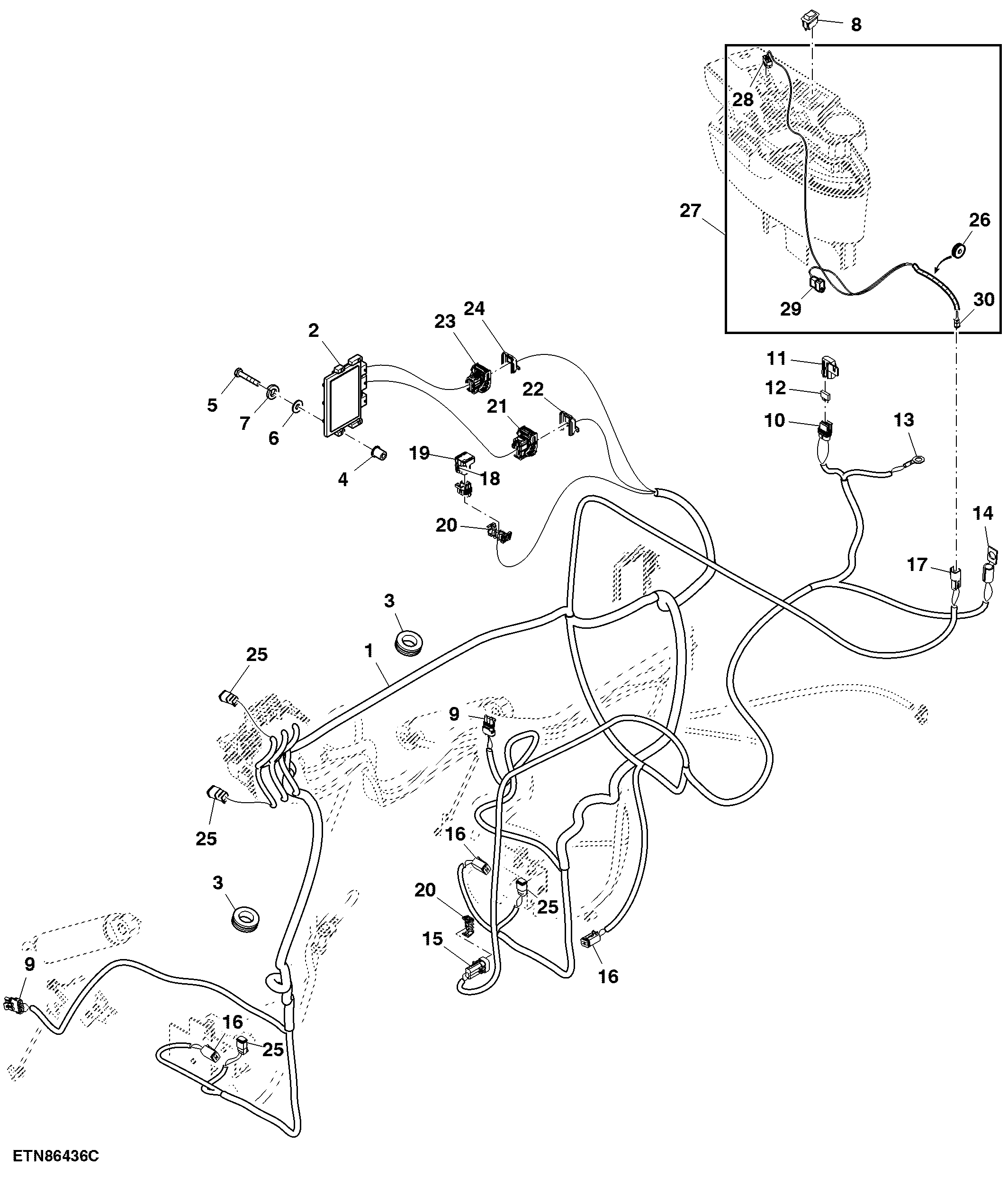

Floating Crop Divider Harness

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXT10013	1	Wiring Harness	-
2	AL206359	1	Electronic Control Unit	-
3	H96823	2	Grommet	-
4	T82793	4	Nut	-
5	19H2721	4	Cap Screw	1/4" X 1-1/2"
6	24H1136	4	Washer	11/32" X 11/16" X 0.065"
7	12H302	4	Lock Washer	1/4"
8	CB01494049	1	Switch	-
9	RE12364	2	Electrical Connector Assy	Position Sensor
9	R78058	6	Elec. Connector Terminal	-
9	57M9219	6	Elec. Connector Seal	-
10	57M8267	1	Elec. Connector Housing	Meca Fuse
10	R104933	2	Elec. Connector Terminal	-
11	57M8487	1	Electrical Connector Cap	-
12	57M7121	1	Fuse	-
13	57M10243	1	Elec. Connector Terminal	-
14	57M9943	1	Elec. Connector Terminal	-
15	57M7263	1	Elec. Connector Housing	Engine Harness Terminal
15	57M7252	6	Elec. Connector Terminal	-
15	57M9215	4	Elec. Connector Seal	-
15	57M7258	1	Elec. Connector Seal	-
16	57M7535	3	Elec. Connector Terminal	Transducer
16	57M8165	9	Elec. Connector Terminal	-
16	R78069	3	Elec. Connector Cavity Plug	-
17	57M7533	1	Elec. Connector Housing	IHC/FCD Harness
17	N282069	2	Elec. Connector Terminal	-
17	57M7621	1	Elec.Connect Locking Device	-
18	57M9215	1	Elec. Connector Seal	-
18	57M7258	5	Elec. Connector Seal	-
18	57M7260	1	Elec. Connector Housing	Implement CAN Active Terminator
18	R104846	6	Elec. Connector Terminal	-
19	RE207311	1	Electronic Control Unit	-
20	57M7291	2	Electrical Connector Assy	-
21	57M10614	1	Elec. Connector Housing	FCD/IHC Controller
21	57M10330	11	Elec. Connector Terminal	-
21	57M10331	6	Elec. Connector Terminal	-
21	57M10333	29	Elec. Connector Cavity Plug	-
21	57M10334	2	Elec. Connector Cavity Plug	-
22	57M10613	1	Elec. Connector Housing	-
23	57M10611	1	Elec. Connector Housing	FCD/IHC Controller
23	57M10330	13	Elec. Connector Terminal	-
23	57M10331	4	Elec. Connector Terminal	-
23	57M10333	11	Elec. Connector Cavity Plug	-
23	57M10334	4	Elec. Connector Cavity Plug	-
24	57M10604	1	Elec. Connector Housing	-
25	57M7534	8	Elec. Connector Housing	Accumilator Solenoid
25	57M8165	8	Elec. Connector Terminal	-
25	57M7620	8	Electrical Connector Assy	-
26	R41440	1	Grommet	-
27	AXT10069	1	Wiring Harness	-
28	57M7896	1	Electrical Connector Assy	IHC Enable Switch
28	57M7511	2	Elec. Connector Terminal	-
28	57M7429	1	Elec. Connector Terminal	-
29	57M7633	1	Electrical Connector Assy	Load Center Harness
29	R78069	6	Elec. Connector Cavity Plug	-
29	N282069	6	Elec. Connector Terminal	-
30	AZ61547	1	Elec. Connector Housing	IHC/FCD Harness
30	57M7546	2	Elec. Connector Terminal	-
30	57M7682	1	Elec.Connect Locking Device	-
30	57M8022	1	Elec.Connect Locking Device	-
